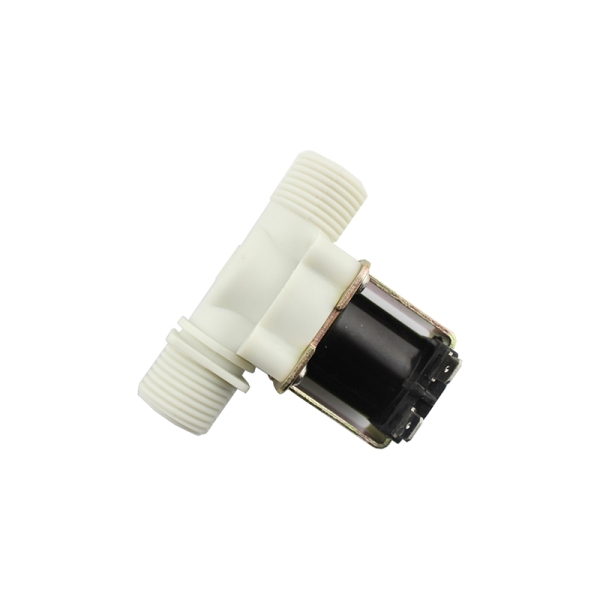

1/2" Solenoid Valve DC12v

Model : ATS04220D

Initial Weight : 113.00g


Availability: In stock

This solenoid valve helps users control the flow of water(gas;oil). It would make a great addition to the robotic gardening projects. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can push through. Notice that the liquid can only flow one direction. The product performance stability, durable, safe, reliable and high sensitivity.


  • The use of the environment is not more than 2500 meters above sea level
  • The working medium temperature 0 ℃ ~ + 60 ℃ (nitrile rubber)
  • Medium: water, gas, oil
  • Rated voltage:  DC12V (the production line detection voltages fall 15 percent)
  • Power rating: 5W
  • Rated current:400mA
  • Working pressure: 0.02 ~ 0.8MPa; can withstand static pressure more than 2.0Mpa
  • Working life: the use of imported stainless steel spring and high-quality materials, to work at least 200,000 times (100 times a day by Job count, ordered more than five years)

Package list

  • 1/2" Solenoid Valve DC12v x 1
