5.79 inch E-paper Display 272*792 Black/White with SPI Communication

$20.99
Availability: In stock
SKU
DIE06579S
Brand
elecrow
Weight
60g

【5.79-inch ink display】272*792 resolution, using SPI interface communication.

【Power-off display retention】The content will not be lost even when there is no power.

【High contrast, high reflectivity and wide viewing angle】Provides a clearer and more vivid visual experience at all viewing angles

【Ultra-low current deep sleep mode】Greatly reduces power consumption and achieves long-term standby.

Description

This is a 5.79-inch E-paper display module with a resolution of 272*792 and communicates via an SPI interface. It uses an active matrix electrophoretic display, and the hard-coated anti-glare display surface can keep the display content visible even in sunlight. There is no backlight, so the display content will not be lost even if the power is off; ultra-low power consumption, basically only needs to refresh the power supply; with its wide viewing angle, high contrast, high reflectivity, ultra-low power consumption and other characteristics, this electronic paper screen is an ideal choice for shelf labels, price tags, badges, smart labels, smart homes and other fields.5.79 inch E-Paper Screen feature

5.79 inch e-paper display

Application Examples

application examples of 5.79 inch e-paper screen

Feature

  • 5.79-inch e-paper display, 272*792 resolution, black and white, using SPI interface communication;
  • Even if the power is off, the displayed content will not be lost;
  • Hard-coated anti-glare display surface effectively resists glare;
  • High contrast and high reflectivity, can provide a clearer and more vivid visual experience;
  • Ultra-low current deep sleep mode and partial refresh, can greatly reduce power consumption and achieve long-term standby;
  • Support full viewing angle, clearly visible from any angle;
  • Pure reflection mode, completely relying on light reflection to display content, no backlight required.

5.79 inch e-paper size

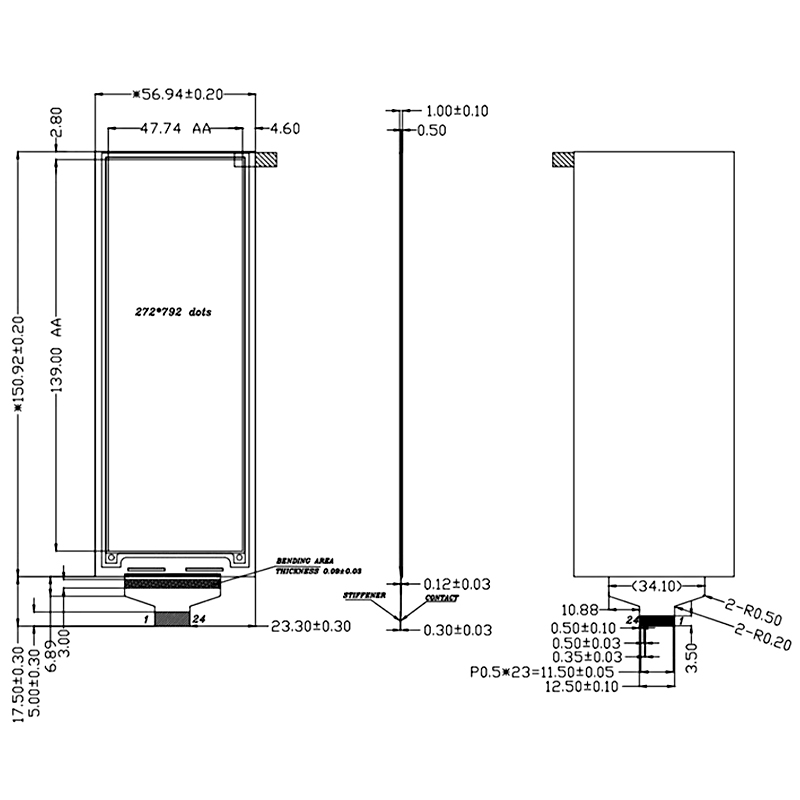

5.79 inch e-paper dimension



Interface definition

Pin Number

Pin Name

Definition

1

GND

Power ground pin

2

VCC

Display main power supply pin

3

SCL

SPI clock line (connected to MCU SPI_CLK)

4

SDA

SPI data line (with single-chip hardware SPI_MOSI)

5

RES#

Display reset pin, low level reset

6

DC

4-wire SPI interface display data or display instruction selection pin/output pin

DC=1: select display data or parameter register

DC=0: select instruction register

7

CS

SPI chip select, low level is effective

8

BUSY

Busy output pin



Specification

Size

5.79 inch

Material

Active Matrix Electroph oretic Display (AM EPD)

Driver Chip

SSD1683*2

Resolution

272(H)*792(L) Pixel

Pixel pitch

0.1755*0.1755

Viewing Angel

Full Viewing Angle

Interface Type

3-/4-wire SPI, default 4-wire SPI

Display Color

Black and white

Refresh Mode

Partial refresh (saves more power)

Connect Method

24Pin 0.5mm Pitch pluggable connector

Operation Voltage

2.2~3.7V

Operation Temperature

-0~50℃

Storage Temperature

-25~70℃

Active Area

47.74(H)*139.00(L)(H*L)

Panel Size

56.94(H)*150.92(V)*1.0(D)(mm)

PCB Size

57.40(H)*165.00(V)*2.6(D)(mm)



Package List

  • 1x 5.79 inch E-Paper Display



Wiki & External links
