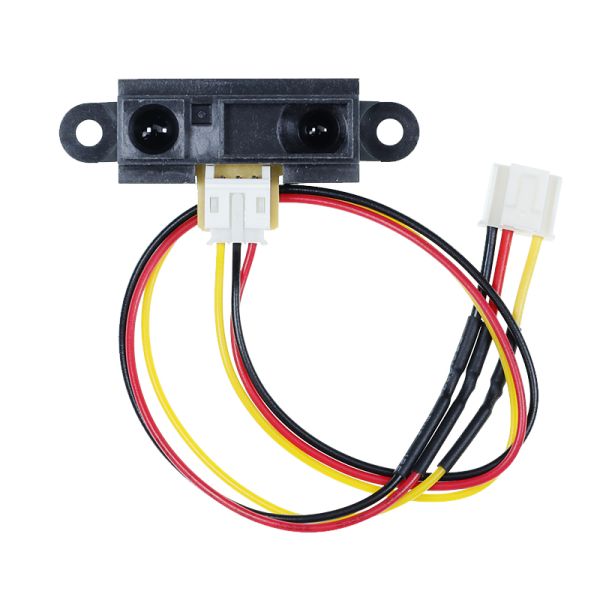

Crowtail- 80cm Infrared Proximity Sensor 2.0

Model : CT0038IPS

Initial Weight : 6.00g

$9.80

Availability: In stock

9.8000
Qty:

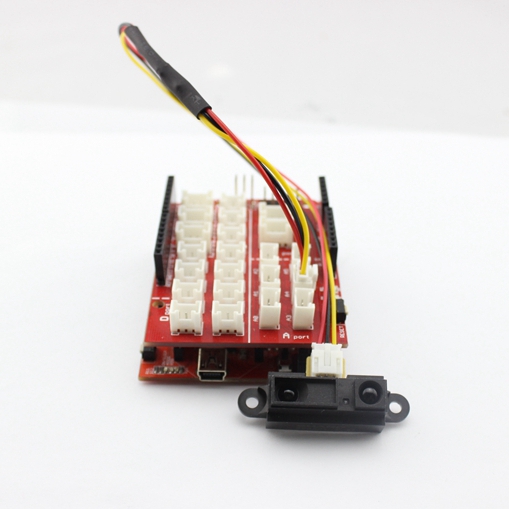

   A NEW Crowtail product! we add a crowtail port for pluging into crowtail base board. so it can simple use for our Crowduino. The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 10 cm to 80 cm (4" to 32"); a plot of distance versus output voltage is shown below:



Specification

  • Operating voltage: 4.5 V to 5.5 V
  • Average current consumption: 30 mA (typical)
  • Distance measuring range: 10 cm to 80 cm (4" to 32")
  • Output type: analog voltage
  • Output voltage differential over distance range: 1.9 V (typical)
  • Response time: 38 ± 10 ms
  • Package size: 29.5×13.0×13.5 mm (1.16×0.5×0.53")
  • Weight: 3.5 g (0.12 oz)

Download
