Crowtail- Collision Sensor 2.0

$1.10
Availability: In stock
SKU
CT0061CCS
Weight
23g

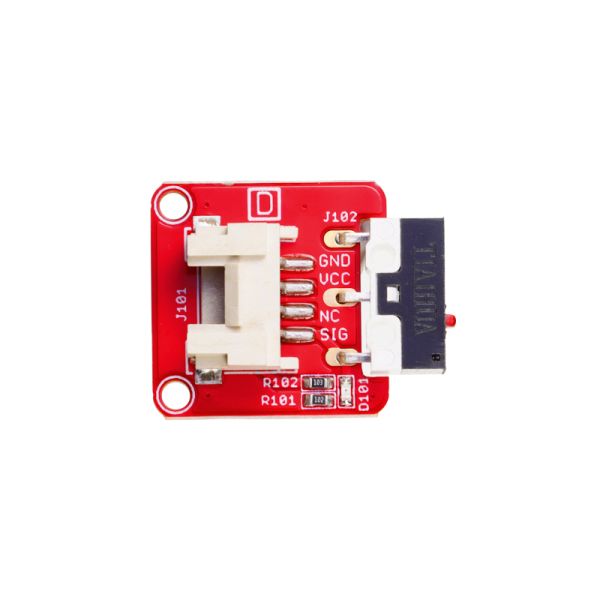

This is a Robot model car crash or collision switch sensor module for Arduino, it normally outputs high voltage, but when the sensor is carsh something such as the wall, the on-board switch will be pressed, and the module outputs low. This module can be installed into any mobile platform to achieve collision detection function via 3P sensor cable and Arduino-compatible sensor expansion board connector. Its working voltage is 5v which make it compatible with standard Arduino-compatible/Crowduino 5V systems. It has crowtail interface for plugging onto the Crowtail-base board.



Features

  • Wide power supply range DC3.3V to 5V
  • High sensitive
  • Dimensions(mm):28.0(L)x20.0(W)x6.8(H)

Package list

  • Crowtail- collision sensor x 1
