CrowVision 7inch HD 1024×600 IPS Capacitive Touch Screen for Raspberry Pi and SBCs – Plug and Play

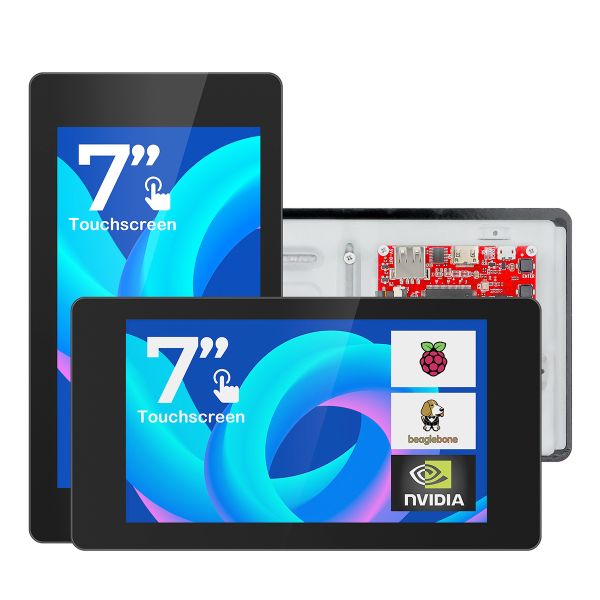

CrowVision 7-inch HD Touch Screen

CrowVision 7-inch touch screen is designed for all-in-one machines. With its high-resolution (1024*600) IPS panel, the visual experience is truly exceptional. The industrial design-style rear-fixed metal structure ensures compatibility with various SBC single-board computers, allowing for easy power-up and seamless usage. Plus, this touch screen also supports a vertical screen orientation.

The screen uses HDMI-compatible communication and supports capacitive multi-touch. The touch screen also provides reserved interfaces and buttons for accessories like speakers, making it adaptable to diverse usage scenarios. It can be used with a variety of commonly available single-board computers such as Raspberry Pi 4/5, Jetson Nano, and is plug-and-play, while also being fully compatible with the operating systems of single-board computers (such as Raspbian, Ubuntu, Windows, Android, MAC OS, and Chrome OS, etc.). You can also design a unique and exquisite protective shell for the screen and assemble it for a completely distinctive look. You can use our 3D printing service to create a beautiful protective shell.

This screen can be widely used in automation application control system displays, personal DIY projects, secondary screen/second window displays, single-board computer audio-video display equipment, HDMI-compatible communication devices, game console expansion screens, and other scenarios.

Quick Click to where you are interested: #Feature, #Specification, #Documents, #Review.

Self-developed by Elecrow with exclusive design.  OEM customization requests can be discussed for projects.

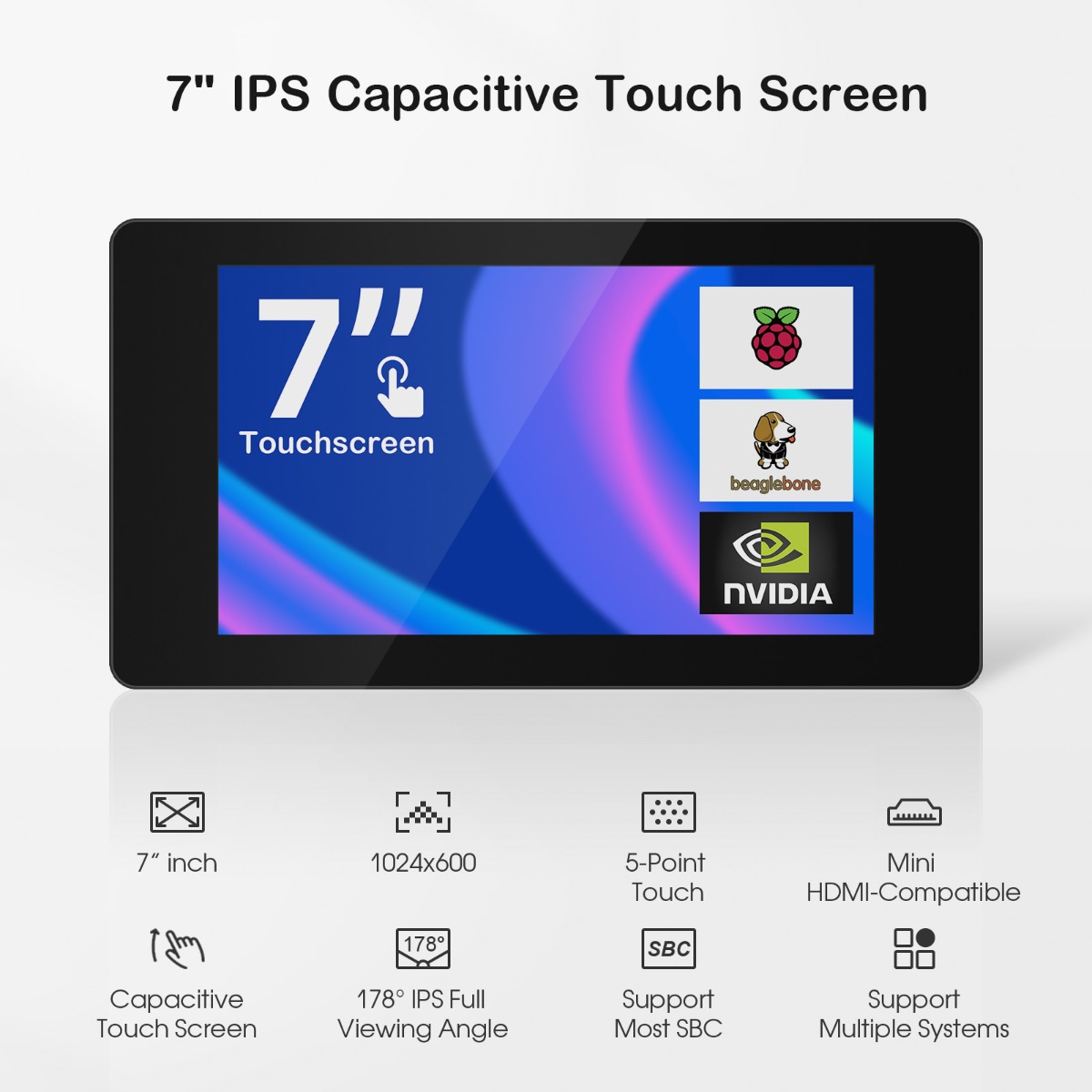

7 Inch Capacitive touchscreen

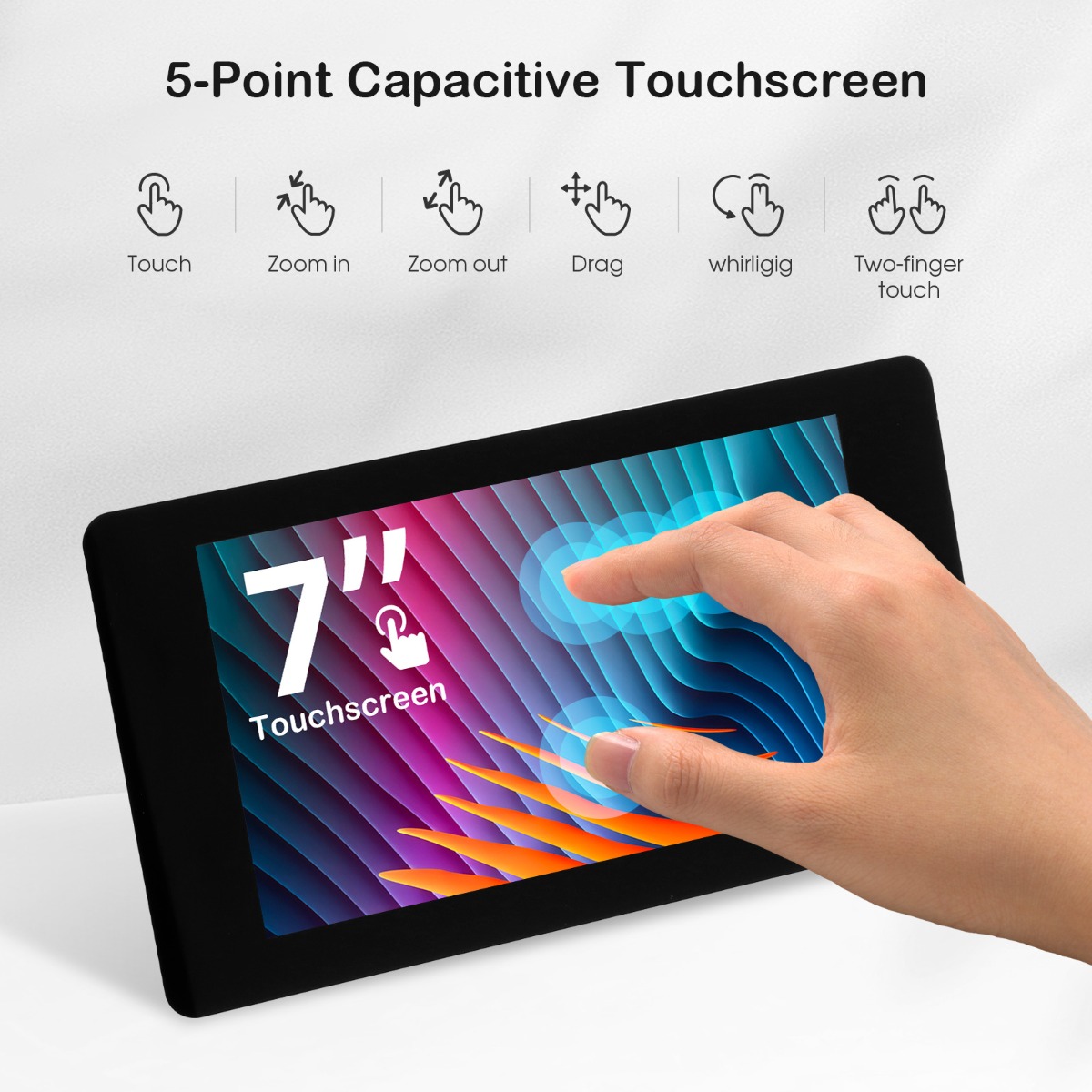

Capacitive 5-Point Touch, Smooth, Accurate and Fast Response.

IPS 1024*600

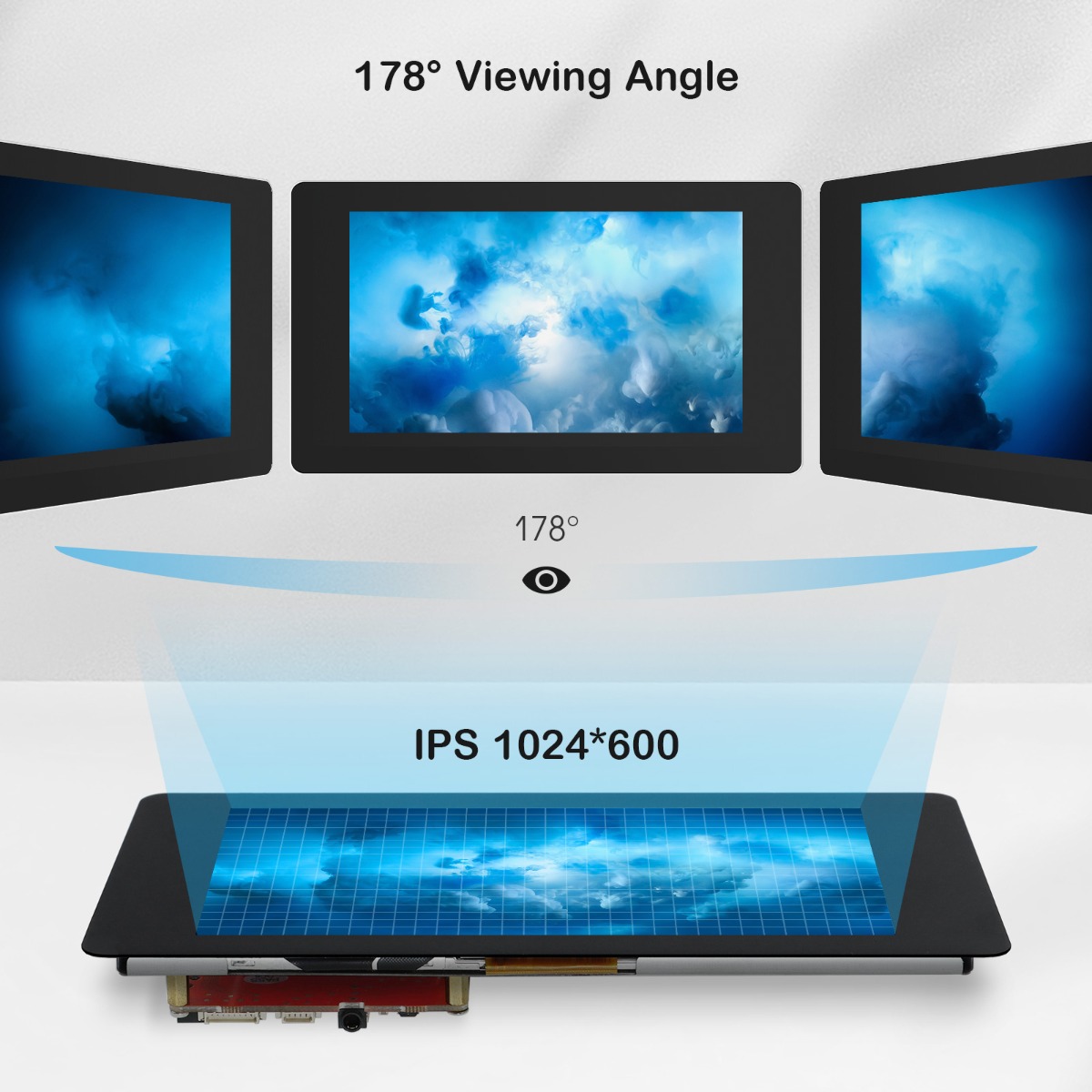

1024*600 resolution with an IPS panel, and a 178° wide viewing angle, providing a better visual experience.

Unique rear fixing structure, supports most single-board computers

Unique rear fixing structure with sliding fixing pillars, compatible with most single-board computer models,and  easy to assemble.

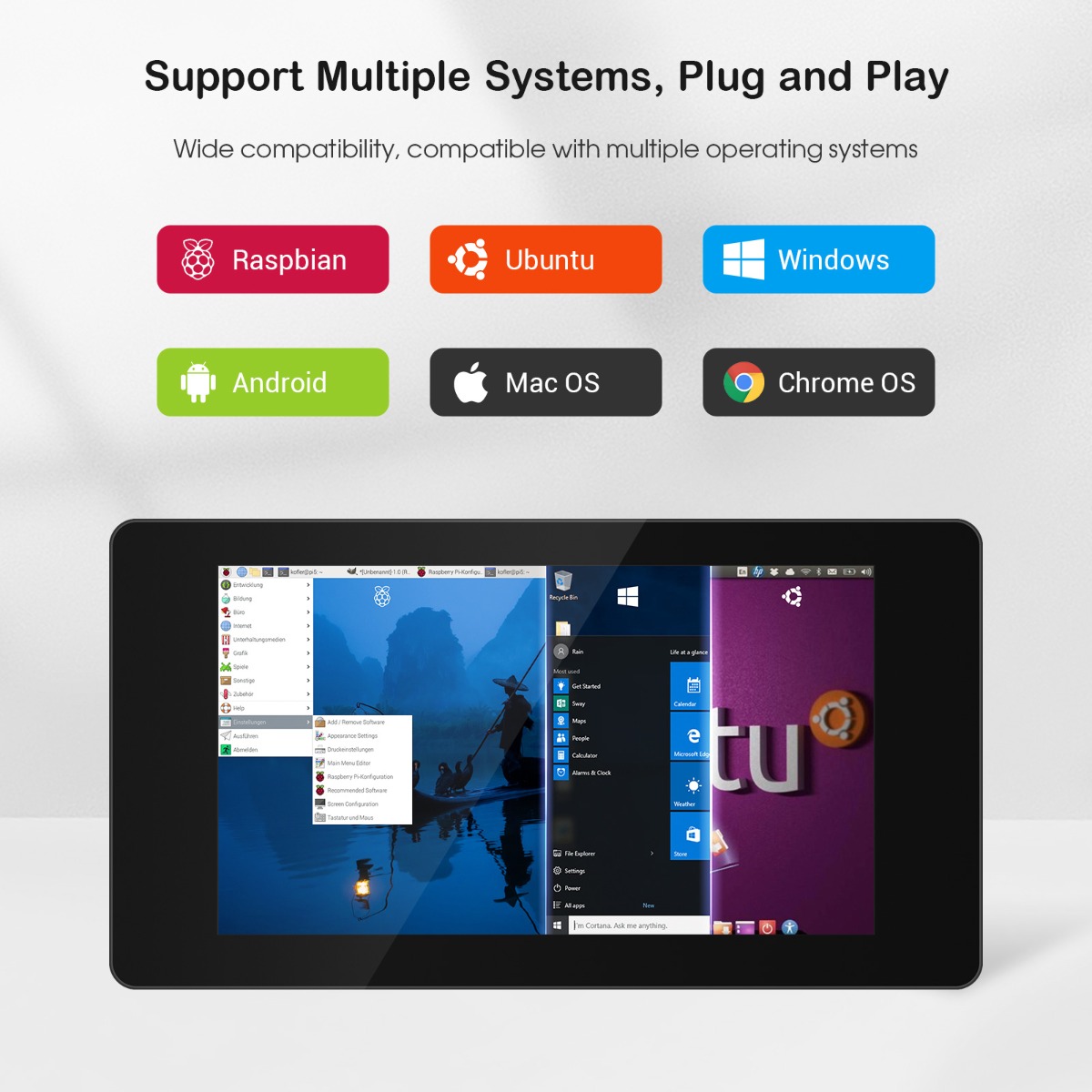

Support multiple systems, plug and play

Wide compatibility, compatible with multiple operating systems (Raspbian, Ubuntu, Windows, Android, MAC OS, and Chrome OS)

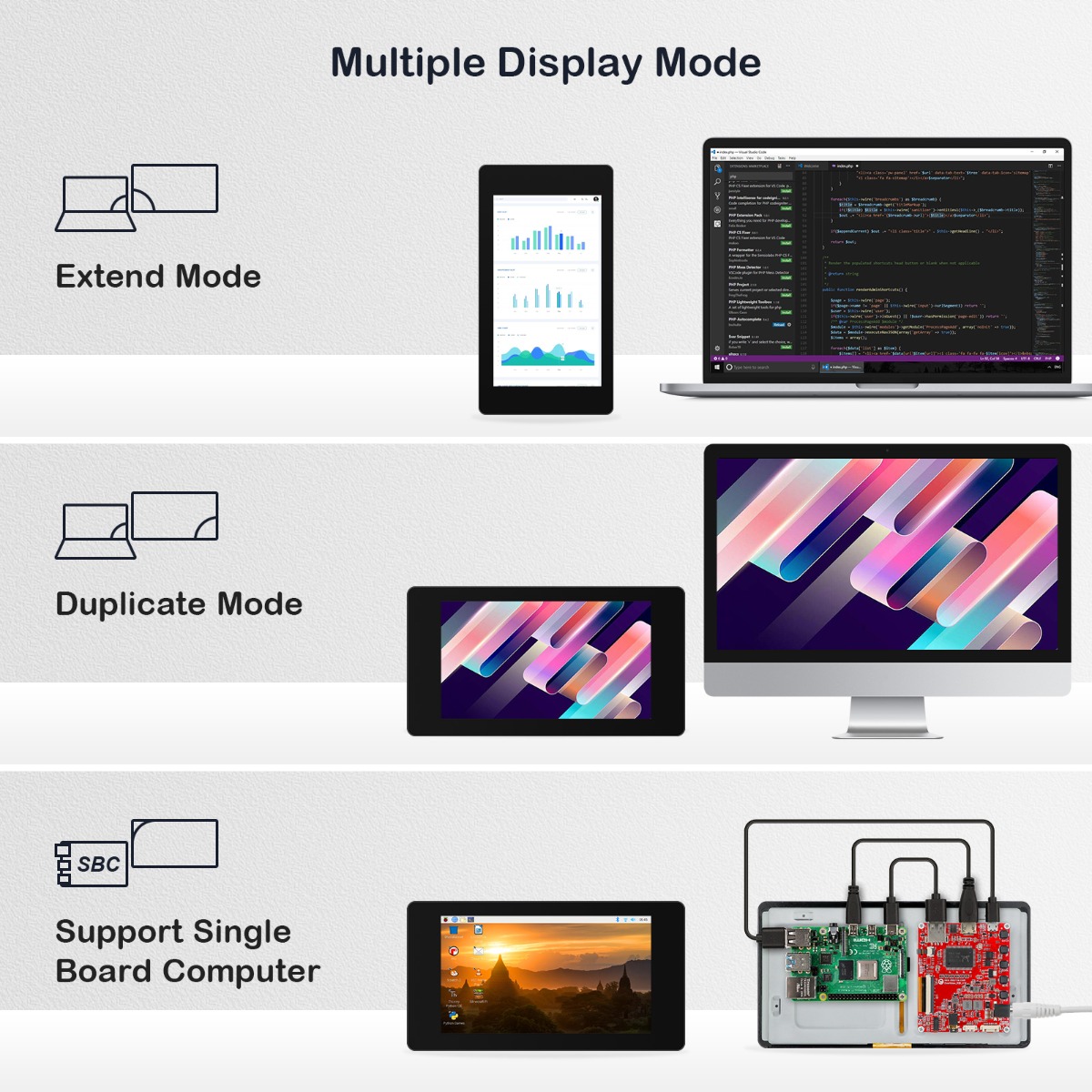

3 In 1 display mode

Applications

Package Details

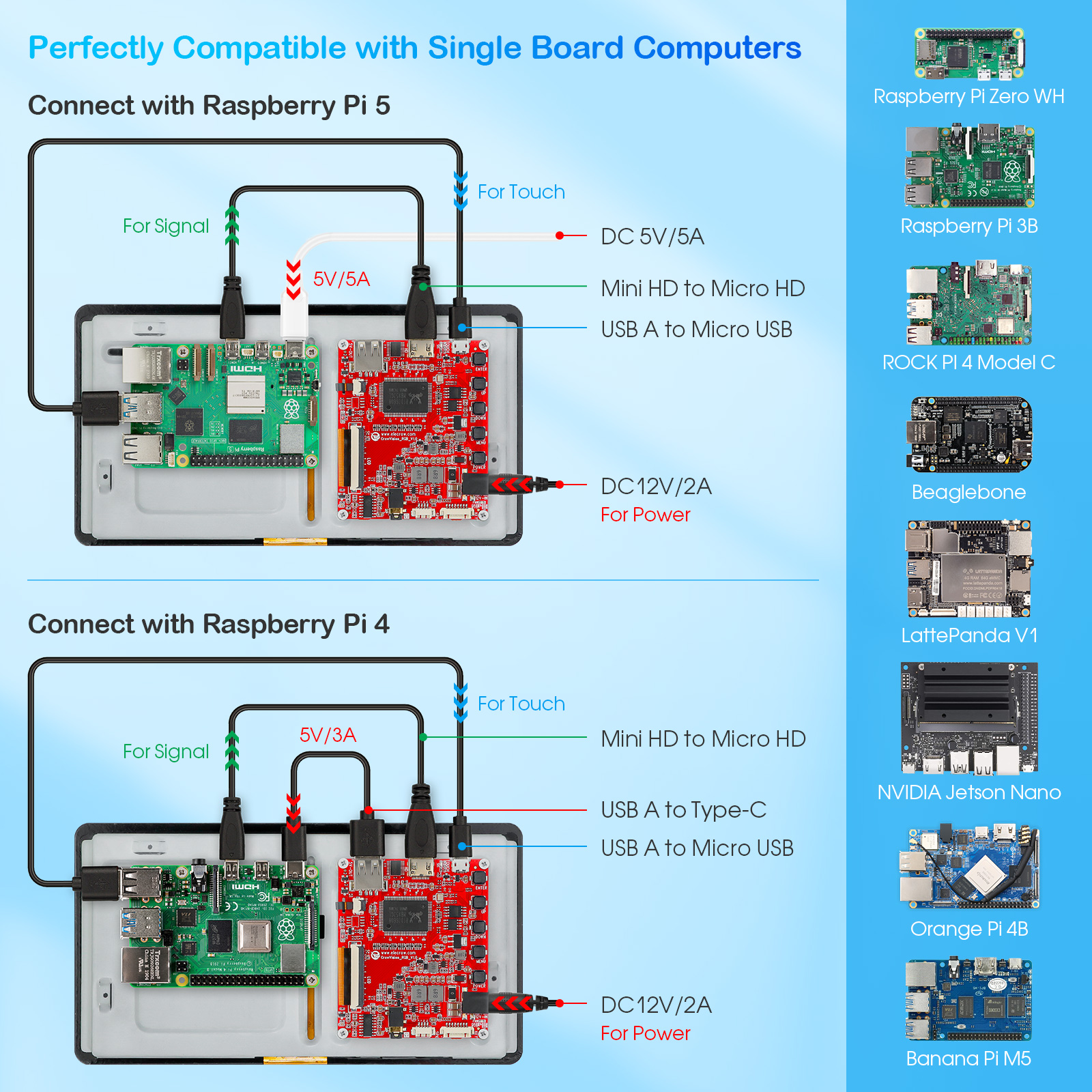

Supports most single-board computers & host devices

Note: For SBC compatibility, please refer to the above table parameters, if you have any questions, please contact us.

Feature

Specification

• Size: 7 Inch
• Touch Type: 5-point Capacitive Touch
• Resolution: 1024*600
• Color Depth: 16M
• Vertical Screen: supported
• Viewing angle: 178°Wide Viewing Angle
• Display Type: IPS Panel
• Screen Type: TFT-LCD
• External power supply: 12V-2A
• Digital input: HDMI-compatible interface
• Interface: 1xKeypad interface, 1x Power supply 5V output, 1x Mini HD interface, 1xTouch interface, 1x Speaker interface, 1x Headphone socket,1x Power supply 12V input
• CompatibilitySystem: Raspbian, Ubuntu, Windows, Android, MAC OS, and Chrome OS, etc.
• Housing type: Acrylic
• Active Area: 99.9*167mm(W*L)
• Dimension Size: 110.3*204mm(W*L)
• Net weight: 298g

Package List

• 1x 7.0 inch capacitive Touch Screen
• 1x USB-A to USB-C cable
• 1x USB-A to Micro B cable
• 1x HD to Mini HD cable
• 1x Micro HD to Mini HD cable
• 1x Power Adapter
• 1x OSD Control Board
• 1x Screwdriver
• 2x Ribbon
• 1x User Manual

Wiki & External links

• Wiki of CrowVision 7" touch display
• User Manual of CrowVision 7" touch display
• CE Certificate of CrowVision 7" touch display
• RoHS Certificated of CrowVision 7" touch display
• 3D File of CrowVision 7" touch display
• Post your tech questions in the forum
