Crowtail- ESP8266 Node MCU

Model : CEN82665C

Initial Weight : 13.00g

$12.00

Availability: In stock

Qty:

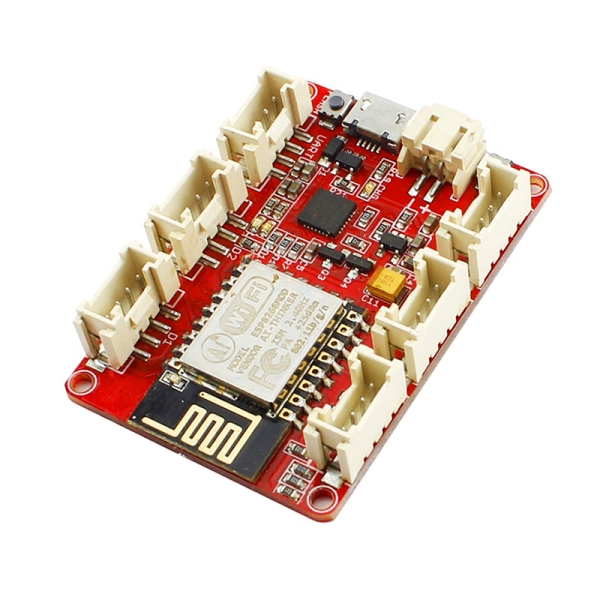

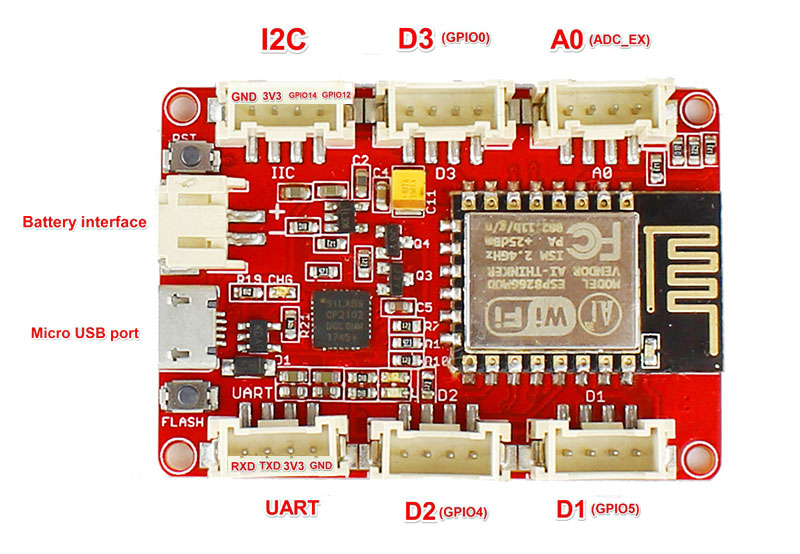

This is a new crowtail product, which is called Crowtail- ESP8266 Node MCU, it adds six crowtail interface on the board, so you can easily to use the ESP8266 Iot board with other crowtail modules.  We wired up a USB-Serial chip that can upload code. It also has auto-reset so no noodling with pins and reset button pressings. To make it easy to use for portable projects, we added a connector for 3.7V Lithium polymer batteries and built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The board will automatically switch over to USB power when its available. Comes fully assembled and tested, with a USB interface that lets you quickly use it with the Arduino IDE or NodeMCU Lua. (It comes preprogrammed with the Lua interpretter) We also toss in some header so you can solder it in and plug into a solderless breadboard. Lipoly battery and USB cable not included (but we do have lots of options in the shop if you'd like!)
  • If you need battery, please click here

  • Features

    • Compatibly Crowtail interface
    • Sizes: 50mm(length) x 35mm(width)
    • light weight
    • ESP8266 @ 80MHz with 3.3V logic/power
    • 4MB of FLASH (32 MBit)
    • Built in WiFi 802.11 b/g/n
    • 3.3V regulator with 500mA peak current output
    • CP2104 USB-Serial converter onboard with 921600 max baudrate for uploading
    • Auto-reset support for getting into bootload mode before firmware upload
    • 9 x GPIO pins - can also be used as I2C and SPI
    • 1 x analog inputs 1.0V max
    • Built in 100mA LiPoly charger with charging status indicator LED, can also cut a trace to disable the charger
    • Pin #0 red LED for general purpose blinking. Pin #2 blue LED for bootloading debug & general purpose blinking
    • Power/enable pin
    • 4 mounting holes
    • Reset button

    Package list

    • Crowtail- ESP8266 Node MCU x1
