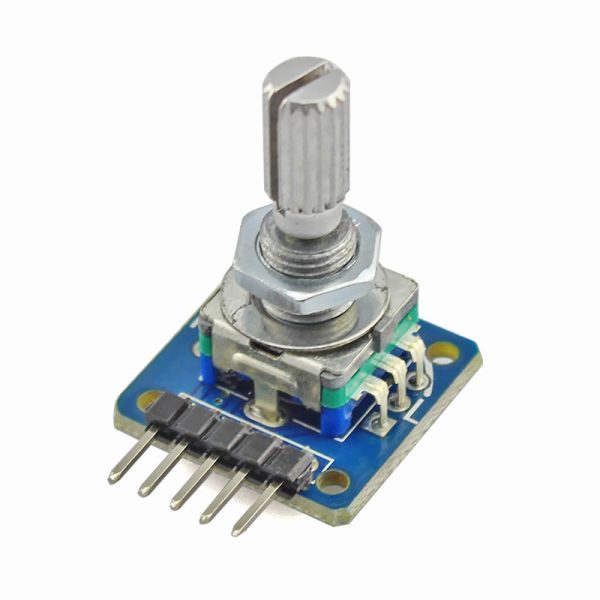

Encoder Module- EC11

This is an incremental rotary encoder that encodes the rotation by electronic pulse, each outputs encodes clockwise and counterclockwise with 20 pulses per circle. Unlike rotary potentiometer count, this rotation counts are not limited, and the outputs are digital. it can be also pressed, to generate another “knob” signal for your projects. When you need to add a rotary knob to your project, for example a volume knob for a speaker, a selection panel or a digital input, this will be your first choice.

Features

Incremental encoder
EC11 encoder switch button module
Location number: 20
Pulse count: 20
With switch

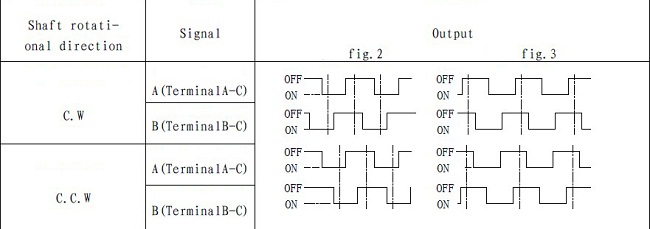

Left/right rotary output pulse, each circle with 20 pulse, press middle is switch

Download

EC11 Datasheet
Encoder Module Demo Code
Encoder Usage on Arduino Forum
