Features
Where to use?
Elecrow CrowPanel Series
Basic Series
CrowPanel ESP32 HMI Display Basic Series - Ultimate Cost-Effectiveness
Multiple Sizes Available
Offering Screen Sizes from 2.4 to 7 Inches
Wireless
Built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2
Easy to Learn
16 LVGL ESP32 tutorials and a wealth of open-source learning materials available
Multi-Environments
Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Micro python
LVGL supported
Compatible with open source Graphics Library LVGL
Multi-functions
Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
Advanced Series
CrowPanel ESP32 HMI Display Advanced Series - AI Function | High Performance
Multiple Sizes Available
Offering Screen Sizes from 2.4 to 7 Inches
Wireless
Built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) , Bluetooth 5.0 and BLE
Easy to Learn
15 LVGL ESP32 tutorials and a wealth of open-source learning materials available
Replaceable Module Design
Replaceable and pluggable, compatible with multiple protocols such as Zigbee/LoRa/nRF2401/Matter/Thread/Wi-Fi HaLow.
Smart Voice AI Function
Integrates a high-sensitivity microphone and audio output, supporting voice command interaction, voice recognition, and speech synthesis.
Multi-Environments
Support development environment Arduino IDE and Espressif IDF and LVGL
Multi-functions
Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
ESP32-P4 Series
CrowPanel HMI Display ESP32-P4 Series - Flagship-level Powerful Computing Power
Multiple Sizes Available
Offering Screen Sizes from 5 to 10.1 Inches
Wireless
Built-in wireless communication Wi-Fi 6 , Bluetooth 5.3
AI vision integration
Optional 2-megapixel camera, supporting face recognition and object tracking.
Replaceable Module Design
Compatible with open source Graphics Library LVGL
Multi-Environments
Support development environment Arduino IDE and Espressif IDF and LVGL
Multi-functions
Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
Rotary Series
CrowPanel HMI Display Rotary Series - Innovative HMI Interaction
Multiple Sizes Available
Offering Screen Sizes from 1.28 to 2.1 Inches
Wireless
Built-in wireless communication 2.4G WiFi, Bluetooth 5.0 and BLE
Dual interaction
Supports capacitive touch and knob (rotation/press) operation
Multi-Environments
Support development environment Arduino IDE and and LVGL
Multi-functions
Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
CrowPanel Display Comparison
| Size | 2.4/2.8 | 3.5 | 4.3 | 5.0 | 7.0 | 9.0 | 10.1 | |
|---|---|---|---|---|---|---|---|---|
| Resolution | Basic | 320*240 | 480*320 | 480*272 | 800*480 | 800*480 | / | / |
| Advance | 320*240 | 480*320 | 800*480 | 800*480 | 800*480 | / | / | |
| ESP32-P4 | / | / | / | 800*480 | 1024*600 | 1024*600 | 1024*600 | |
| Touch Type | Basic | Resistive | Resistive | Resistive | Capacitive | Capacitive | / | / |
| Advance | Capacitive | Capacitive | Capacitive | Capacitive | Capacitive | / | / | |
| ESP32-P4 | / | / | / | Capacitive | Capacitive | Capacitive | Capacitive | |
| Main Processor | Basic | ESP32-WROOM-32 | ESP32-WROVER-B | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | / | / |
| Advance | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | / | / | |
| ESP32-P4 | / | / | / | ESP32-P4+ESP32-C6 | ESP32-P4+ESP32-C6 | ESP32-P4+ESP32-C6 | ESP32-P4+ESP32-C6 | |
| Frequency | Basic | 240 MHz | 240 MHz | 240 MHz | 240 MHz | 240 MHz | / | / |
| Advance | 240 MHz | 240 MHz | 240 MHz | 240 MHz | 240 MHz | / | / | |
| ESP32-P4 | / | / | / | 400MHz | 400Mhz | 400Mhz | 400Mhz | |
| Flash | Basic | 4MB | 4MB | 4MB | 4MB | 4MB | / | / |
| Advance | 16MB | 16MB | 16MB | 16MB | 16MB | / | / | |
| ESP32-P4 | / | / | / | 16MB | 16MB | 16MB | 16MB | |
| SRAM | Basic | 520KB | 520KB | 512KB | 512KB | 512KB | / | / |
| Advance | 512KB | 512KB | 512KB | 512KB | 512KB | / | / | |
| ESP32-P4 | / | / | / | 768 KB L2MEM(HP) 32 KB SRAM(LP) |
768 KB L2MEM(HP) 32 KB SRAM(LP) |
768 KB L2MEM(HP) 32 KB SRAM(LP) |
768 KB L2MEM(HP) 32 KB SRAM(LP) |
|
| ROM | Basic | 448KB | 448KB | 384KB | 384KB | 384KB | / | / |
| Advance | 384KB | 384KB | 384KB | 384KB | 384KB | / | / | |
| ESP32-P4 | / | / | / | 128 KB ROM(HP) 16 KB ROM(LP) |
128 KB ROM(HP) 16 KB ROM(LP) |
128 KB ROM(HP) 16 KB ROM(LP) |
128 KB ROM(HP) 16 KB ROM(LP) |
|
| PSRAM | Basic | / | 8MB | 2MB | 8MB | 8MB | / | / |
| Advance | 8MB | 8MB | 8MB | 8MB | 8MB | / | / | |
| ESP32-P4 | / | / | / | 32MB | 32MB | 32MB | 32MB | |
| Display Driver | Basic | ILI9341V | ILI9488 | NV3047 | ILI6122 & ILI5960 | EK9716BD3 & EK73002ACGB |
/ | / |
| Advance | ST7789 | ILI9488 | ST7265 | ST7262 | GW1076-i2 | / | / | |
| ESP32-P4 | / | / | / | ST7265 | EK79007 | EK79007 | EK79007 | |
| Screen Type | Basic | TN | ILI9488 | NV3047 | TN | TN | / | / |
| Advance | IPS | ILI9488 | ST7265 | IPS | IPS | / | / | |
| ESP32-P4 | / | / | / | IPS | IPS | IPS | IPS | |
| Brightness | Basic | 175 cd/m²(Typ.) | ILI9488 | NV3047 | 175 cd/m²(Typ.) | 175 cd/m²(Typ.) | / | / |
| Advance | 400 cd/m²(Typ.) | ILI9488 | ST7265 | 400 cd/m²(Typ.) | 400 cd/m²(Typ.) | / | / | |
| ESP32-P4 | / | / | / | 400 cd/m²(Typ.) | 400 cd/m²(Typ.) | 400 cd/m²(Typ.) | 400 cd/m²(Typ.) | |
| Replaceable Module | Basic | NO | ILI9488 | NV3047 | NO | NO | / | / |
| Advance | YES | ILI9488 | ST7265 | YES | YES | / | / | |
| ESP32-P4 | / | / | / | YES | YES | YES | YES | |
| RTC | Basic | NO | ILI9488 | NV3047 | NO | NO | / | / |
| Advance | NO | ILI9488 | ST7265 | YES | YES | / | / | |
| ESP32-P4 | / | / | / | NO | NO | NO | NO | |
| Interface | Basic | 1*UART0 1*UART1 1*I2C 1*GPIO 1*BAT |
2*UART0 1*I2C 1*GPIO 1*BAT |
1*UART0 2*UART1 2*I2C 1*BAT |
2*UART0 2*GPIO 2*I2C 1*BAT |
2*UART0 2*GPIO 2*I2C 1*BAT |
/ | / |
| Advance | 1*UART1 1* UART0-IN 1*I2C 1*USB 1*BAT 1*Buzzer |
1*UART1 1* UART0-IN 1*I2C 1*USB 1*BAT 1*Buzzer |
1*UART0 1*UART1 1*UART0-IN 1*I2C 1*BAT 1*Buzzer |
1*UART0 1*UART1 1*UART0-IN 1*I2C 1*BAT 1*Buzzer |
1*UART0 1*UART1 1*UART0-IN 1*I2C 1*BAT 1*Buzzer |
/ | / | |
| ESP32-P4 | / | / | / | 1*UART0 1*UART1 1*UART3-IN 1*USB 2.0 1*I2C1 1*BAT 1* GPIO Pin Header 2*Speakers |
1*UART0 1*UART1 1*UART3-IN 1*USB 2.0 1*I2C1 1*BAT 1* GPIO Pin Header 2*Speakers |
1*UART0 1*UART1 1*UART3-IN 1*USB 2.0 1*I2C1 1*BAT 1* GPIO Pin Header 2*Speakers |
1*UART0 1*UART1 1*UART3-IN 1*USB 2.0 1*I2C1 1*BAT 1* GPIO Pin Header 2*Speakers |
|
| Button | Basic | 1* RESET 1*BOOT |
1* RESET 1*BOOT |
1* RESET 1*BOOT |
1* RESET 1*BOOT |
1* RESET 1*BOOT |
/ | / |
| Advance | 1* RESET 1*BOOT |
1* RESET 1*BOOT |
1* RESET 1*BOOT |
1* RESET 1*BOOT |
1* RESET 1*BOOT |
/ | / | |
| ESP32-P4 | / | / | / | 1* RESET Button 1*BOOT Button 1* Power Button |
1* RESET Button 1*BOOT Button 1* Power Button |
1* RESET Button 1*BOOT Button 1* Power Button |
1* RESET Button 1*BOOT Button 1* Power Button |
|
| Battery Detection | Basic | NO | NO | NO | NO | NO | / | / |
| Advance | NO | NO | NO | NO | NO | / | / | |
| ESP32-P4 | / | / | / | YES | YES | YES | YES | |
| Camera (Optional) | Basic | NO | NO | NO | NO | NO | / | / |
| Advance | NO | NO | NO | NO | NO | / | / | |
| ESP32-P4 | / | / | / | YES | YES | YES | YES | |
| MIC | Basic | NO | NO | NO | NO | NO | / | / |
| Advance | YES | YES | YES | YES | YES | / | / | |
| ESP32-P4 | / | / | / | YES | YES | YES | YES | |
| Speaker Jack | Basic | YES | YES | YES | YES | YES | / | / |
| Advance | YES | YES | YES | YES | YES | / | / | |
| ESP32-P4 | / | / | / | YES | YES | YES | YES | |
| TF Card Slot | Basic | YES | YES | YES | YES | YES | / | / |
| Advance | YES | YES | YES | YES | YES | / | / | |
| ESP32-P4 | / | / | / | YES | YES | YES | YES | |
| AI-Compatible | Basic | NO | NO | NO | NO | NO | / | / |
| Advance | YES | YES | YES | YES | YES | / | / | |
| ESP32-P4 | / | / | / | YES | YES | YES | YES |
Hear What Experts Say
Este DISPLAY lo hace TODO 😱 | ESP32-P4
By Cómo Lo Hice Inventor
Elecrow CrowPanel Advanced 7.0-HMI (ESP32-P4) – to nie jest tablet!
By Home-Tech Mate
Termostato WiFi por 40€ vs Nest: Cuál es mejor realmente
By Home Assistant y Domótica Fácil
SONUNDA! | ELECROW CROWPANEL 1.28" | DÜRÜST İNCELEME
By Mete Hoca
ESP32-S3 LVGL Project: RS485 Temperature and Humidity Display on 5" CrowPanel
By Pang
ESP32S3 DIY Smart Greenhouse | Elecrow Advance 7" Touch Display Project | ESP32-S3 | ESP32 Lora
By Project Weekend
Quando a automação encontra design: conheça esse painel ESP32! Elecrow
By LNPBR
ESPHome now supports LVGL - Elecrow 5-inch ESP32 display
By Vaclav Chaloupka
#269 TFT 3.5" Touch Screen & ESP32 built in - Elecrow review
By Ralph S Bacon
ESP32 Display
By Vaclav Chaloupka
No Creerás lo que el ESP32 Puede Hacer! 🔥 KIT TERMINAL ESP32 - ELECROW
By LaBuhardillaDelLoco
CrowPanel Display Lesson
Video Lessons
The CrowPanel ESP32 Display Tutorial includes multiple creative instructional guides to explore the endless possibilities for your electronics projects.Compatible with the open source LVGL graphics library, the CrowPanel display enables a variety of fun HMI GUI projects.
With the related appropriate electronic modules, these displays excel in smart home, gaming, and IoT applications. They can function as voice-controlled LED lighting assistants, AC terminal controllers, air quality monitors, and temperature monitoring systems. They can also serve as stylish smart desk clocks and entertaining gaming consoles where you can enjoy the fun of "Whack a Mole" or engage in epic battles with enemies in "King of Fighter".
In addition, the CrowPanel display can even function as a mobile phone for making calls. The possibilities of the CrowPanel ESP32 display series go far beyond what's been mentioned, inviting you to enter and explore more of the world of DIY electronics.
Study Now

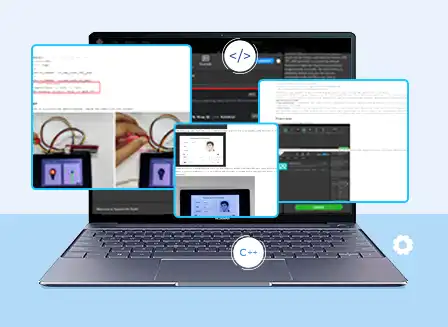

WIKI
By combining LVGL with ESP32, you can develop sophisticated and responsive GUI designs that enhance the user experience and add value to your projects, such as support for animation, themes, fonts, and touch input.
In this 16-lesson, step-by-step LVGL ESP32 tutorial, we will guide you through the process of setting up LVGL on your ESP32 development board, creating a basic GUI application, and adding advanced features such as animation, themes, and touch input. We will also cover best practices for optimizing your LVGL GUIs for performance and memory usage.
Whether you are an experienced embedded systems developer or just getting started with LVGL and ESP32, this tutorial will give you the knowledge and skills you need to create stunning GUI features for your ESP32 projects. So let's get started!
Study NowProducts
CrowPanel Advanced 10.1inch |ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen | WiFi 6 Support|Compatible with Arduino/LVGL
as low as
$53.9
CrowPanel Advanced 9inch |ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen | WiFi 6 Support |Compatible with Arduino/LVGL
as low as
$50.9
CrowPanel Advance 7inch |ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen with WiFi 6 Compatible with Arduino/LVGL
as low as
$45.9
CrowPanel Advanced 5inch |ESP32-P4 HMI AI Display 800x480 IPS Touch Screen with WiFi 6
as low as
$42.9
CrowPanel 1.28inch-HMI ESP32 Rotary Display 240*240 IPS Round Touch Knob Screen
$29
CrowPanel 2.1inch-HMI ESP32 Rotary Display 480*480 IPS Round Touch Knob Screen
$35.7
CrowPanel Advance 7inch HMI| ESP32-S3 AI-Powered IPS Touch Screen (800x480) Support LVGL
as low as
$34.9
CrowPanel Advance 5inch HMI|ESP32-S3 AI-Powered IPS Touch Screen (800x480) Support LVGL
as low as
$32.9

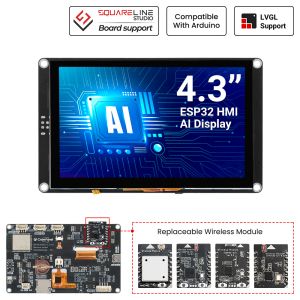

CrowPanel Advance 4.3inch HMI|ESP32-S3 AI-Powered IPS Touch Screen (800x480) Support LVGL
as low as
$29.9

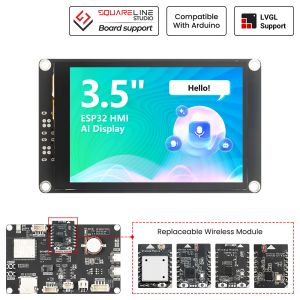

CrowPanel Advance 3.5inch HMI|ESP32-S3 AI-Powered IPS Touch Screen (480x320) Support LVGL
as low as
$24.9
CrowPanel Advance 2.8inch HMI|ESP32-S3 AI-Powered IPS Touch Screen (320x240) Support LVGL
as low as
$18.9
CrowPanel Advance 2.4inch HMI|ESP32-S3 AI-Powered IPS Touch Screen (320x240) Support LVGL
as low as
$17.9
CrowPanel 7inch -HMI ESP32 Display 800x480 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython
as low as
$24.9
CrowPanel 5inch-HMI ESP32 Display 800x480 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython
as low as
$3
CrowPanel 4.3inch-HMI ESP32 Display 480x272 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython
as low as
$2.5
CrowPanel 3.5inch-HMI ESP32 Display 480x320 SPI TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython
as low as
$1.8
CrowPanel 2.8inch-ESP32 HMI 320x240 Display SPI TFT LCD Touch Screen Compatible with Arduino/LVGL/ Esphome-Homeassistant/PlatformIO/Micropython
as low as
$1.8
CrowPanel 2.4inch-ESP32 HMI 320x240 SPI TFT LCD Touch Screen Compatible with Arduino/LVGL/ Esphome-Homeassistant/PlatformIO/Micropython
as low as
$9.9

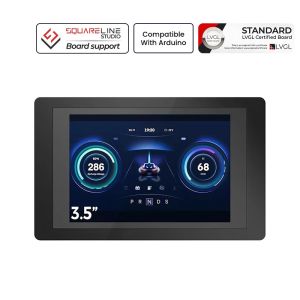

CrowPanel ESP Terminal - ESP32 3.5inch 480x320 Parallel RGB Touch Display
$33.9
$28.9
CrowPanel-ESP32 Terminal 3.5inch SPI Capacitive Touch Display with OV2640 Camera (320x480)
$39.9
$35.91
For bulk orders or project inquiry，distribution interest, welcome to discuss with us via email service@elecrow.com
