MIDI Guy Rev 2.1 Kit

$28.50
Availability: In stock
SKU
CQA241010GK1
Weight
70g
×
ok  Add to cart successfully!
Customers Who View This Item Also Bought
left right

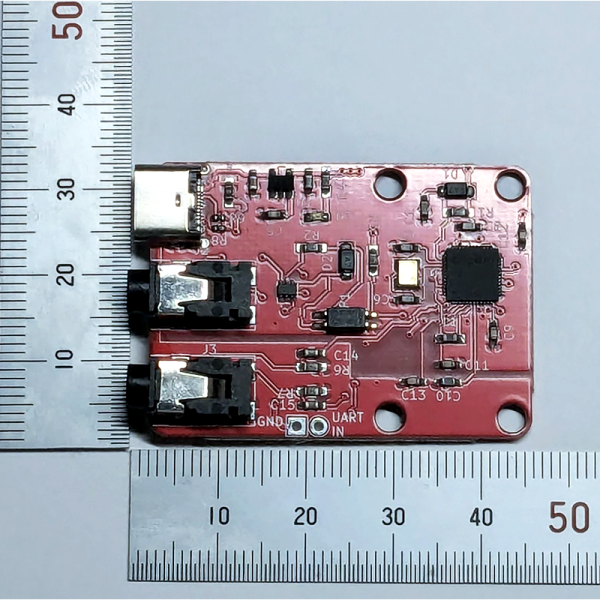

MIDI Guy is a sound module with SAM2695, a single chip General MIDI(GM) synthesizer.

Frequently Bought Together



What is it?

MIDI Guy is a sound module with SAM2695, a single chip General MIDI(GM) synthesizer. It can generate GM's 127 sound programs such as "Acoustic Grand Piano", "Trumpet", etc.

You can also use effects and EQs. Please refer to the SAM2695's datasheet for details. https://www.dream.fr/pdf/Serie2000/SAM_Datasheets/SAM2695.pdf

Kit contents

  • Pre-assembled circuit board
  • 2 pcs. of 3.5mm TRS Jack
  • 1 pc. of DIN <-> TRS(Type A) Conversion Cable

How to assemble

  • Solder TRS Jack to the preassembled PCB. Please refer to the WEB Site(https://github.com/kinoshita-lab/MIDI-guy/)  for details.
