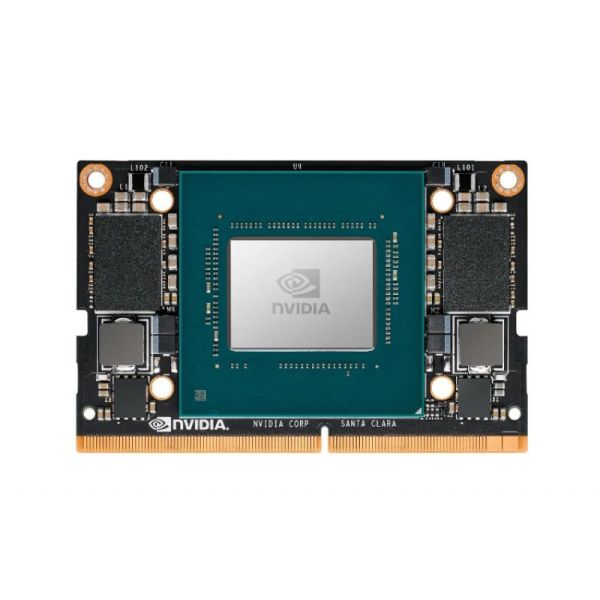

NVIDIA Jetson Xavier NX Module

SKU
DJX57992N
Weight
50
Out of stock
Only 0 left
$559.00
Overview

The NVIDIA Jetson Xavier NX module is considered to be the smallest AI supercomputer in the world for embedded and edge systems. This module  is only 70 x 45 mm yet packs in high performance and power efficiency.

This module is especially suited for running entire AI systems. With up to 21 TOPS of accelerated computing, it delivers the computing power needed to run parallel neural networks and process data from multiple high-resolution sensors simultaneously.

The NVIDIA Jetson Xavier NX module is considered to be the smallest AI supercomputer in the world for embedded and edge systems. This module  is only 70 x 45 mm yet packs in high performance and power efficiency.

This module is especially suited for running entire AI systems. With up to 21 TOPS of accelerated computing, it delivers the computing power needed to run parallel neural networks and process data from multiple high-resolution sensors simultaneously.

The Jetson Xavier NX also features support for cloud-native technologies, making it easier for developers to upgrade and manage the AI products. In addition, it comes with pre-trained AI models from NVIDIA NGC and the NVIDIA Transfer Learning Toolkit that allow for the faster creation of professional and optimized AI networks.

The module perfectly suits high-performance AI systems such as AI-powered high-resolution vision systems, drones, smart cameras, commercial robots, or medical equipment.

Features

  • Compact size SOM powerful enough for advanced AI applications with low power consumption
  • More than 10X the performance of Jetson TX2
  • Supports entire NVIDIA Software Stack for application development and optimization
  • Enables development of AI applications using NVIDIA JetPack™ SDK
  • Easy to build, deploy, and manage AI at the edge
  • Continuous updates over the lifetime of the product

Specifications



RAM

8GB

16GB

AI Performance

21 TOPS (INT8)

GPU

NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores

Max GPU Frequency

1100 MHz

CPU

6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3

Max CPU Frequency

1900 MHz

Memory

8 GB 128-bit LPDDR4x @ 1866MHz 59.7GB/s

16 GB 128-bit LPDDR4x @ 1866MHz 59.7GB/s

Storage

16 GB eMMC 5.1

Power

10W | 15W | 20W

PCIe

1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s *

CSI Camera

Up to 6 cameras (24 via virtual channels)

14 lanes MIPI CSI-2

D-PHY 1.2 (up to 30 Gbps)

Video Encode

2x 4K @ 30 | 6x 1080p @ 60 | 14x 1080p @ 30 (H.265/H.264)

Video Decode

2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265) 2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264)

Display

2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0

DL Accelerator

2x NVDLA Engines

DLA Max Frequency

1100 MHz

Vision Accelerator

7-Way VLIW Vision Processor

Networking

10/100/1000 Base-T Ethernet

USB

1xUSB 3.1 (10 Gbps) | 3xUSB 2.0

Other IOs

1x SDIO / 2x SPI / 3x UART / 2x I2S / 4x I2C / 1x CAN / GPIOs

Dimensions

45 mm x 69.6 mm

Connector

260 pin SO-DIMM connector

Package list

  • Jetson Xavier NX Mudule*1
