PAA3905 Optical Flow Camera

Description

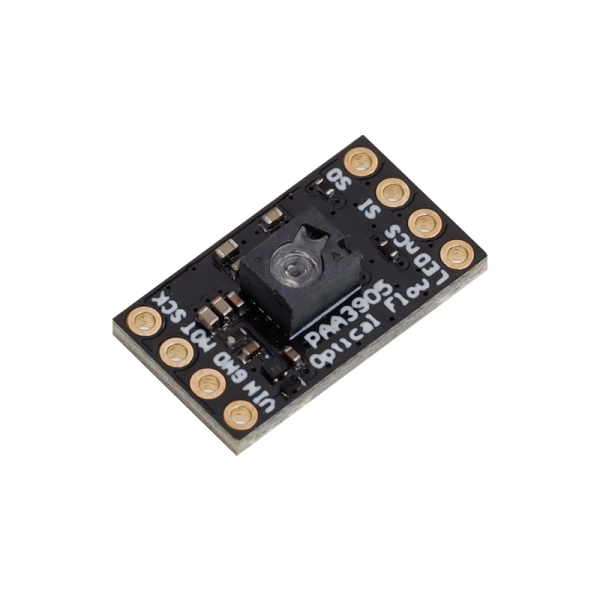

This is a small (17.9 mm x 10.3 mm) breakout board for PixArt's PAA3905 optical flow sensor.

From the data sheet: "The PAA3905E1 is PixArt Imaging's optical motion tracking chip specifically designed for low light level operation. ... It is suitable for far field tracking application in providing motion tracking with stable hovering function for drone."

In other words, the sensor provides lateral velocity information useful for UAV hovering and navigation. It's 80 mm minimum distance also allows application to navigation of rolling robots within the limitation of its maximum 7.2 rad/s flow speed.

The sensor uses an 8-bit, 35 x 35 pixel imager which is sensitive to both visible and infrared (940 nm) light. The sensor automatically identifies features in the pixel map and tracks them from frame to frame at up to 126 Hz frame rate to identify the average feature motion, which is reported as signed 16-bit delta X and delta Y, proportional to the lateral velocity components. The proportionality depends on the distance from the sensor to the measurement surface as well as the resolution set by the user. In general, user calibration of speed vs output counts at the working distance is recommended for best results.

The sensor comes with a properly fitted L242-ZSZ1 polycarbonate lens made specifically for the PAA3905 IC but gluing this lens to the PAA3905 liquid crystal polymer package is left up to the user. Gluing is recommended where significant mechanical impact during use is expected. Bonding agents such as LOCTITE 3129, EPOTEK 730, or UV curable adhesive can be used among others. Contact PixArt for details.

The sensor uses standard SPI for communications (nCS, MOSI, MISO, SCLK exposed on the breakout) at a maximum serial port speed of 2 MHz. The sensor has an interrupt for data ready (active LOW) exposed on the breakout. Power input is limited to 1.8 - 3.6 V and GND. Lastly, there is an led sync pin (active LOW) exposed on the board for controlling an led via a FET (not included with the breakout) for custom illumination. Given the sensitivity of the image sensor to the IR, a 940 nm led would be a good choice.

Multiple PAA3905 sensors can be synced together to match data timing or one or more PAA3905 can be synced with other sensors such as IMUs, etc.  For both led and sensor sync functionality contact PixArt for more details.

The sensor uses typically 3.5 mA in operation and has a 12 uA shutdown mode.

This sensor offers two sensitivities: standard detection and enhanced detection for rough terrain at > 15 cm height. The sensor can automatically switch between bright (>60 lux), low light (>30 lux), and super low light (> 5 lux) conditions (perfect for dusk or overcast operation). Bright and low light modes work at 126 frames per second. The super low light mode is limited to 50 frames per second.

The sensor can operate in navigate mode producing delta X and Y values which are proportional to lateral velocity. The limiting speed is determined by the maximum 7.2 rads/sec flow rate and by the distance to the measurement surface; 80 mm is the minimum measurement distance. So at 80 mm the maximum speed is 0.58 m/s (1.3 mph), at 2 meter distance (~drone height) the maximum speed is 14.4 m/s (32 mph), etc.

The sensor can also operate in raw data (frame grab) mode producing 35 x 35 pixel images from the sensor at a frame rate of ~18 Hz. This makes the PAA3905 an inexpensive, low-resolution, infrared-sensitive video camera. The data sheet cautions: "the sensor needs to be held stationary for the duration of grabbing raw data until the data array is completely read out". I measured the complete frame grabbing process to take 56 milliseconds. The stationary requirement is to presumably avoid blurring; changing of the pixel values during the readout process. So it remains to be demonstrated how accurate of a "video camera" this sensor can be.

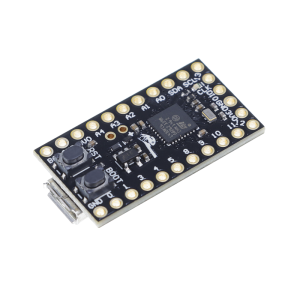

I tested this using Adafruit's 160 x 128 pixel rgb TFT display on an STM32L476 Dragonfly development board.  In the main loop it takes 56 ms to grab a 35 x 35 pixel (each pixel is 1  byte) frame but the display rate seems more like about ~2 Hz or so.  I am plotting the data on the TFT display by mapping rgb colors to intensity. Since I am using the Dragonfly with its embedded 16 MByte SPI NOR flash  I could also just store the 1225 bytes of data per frame on the flash for later download. I could record ~10 minutes of video at the ~18 Hz frame rate.

In the image below the PAA3905 is pointed toward a window with my hand in the field of view (basically backlit).  In addition to faster display speed, using the PAA3905 as a video camera would benefit from using an IR (830 or 940 nm) led and the led sync pin for scene illumination.

There are Arduino sketches reposited at Github (see also here ) that configure the sensor parameters, set up the data ready interrupt, and output both navigation data and 35 x 35 pixel raw data frames. The sketches demonstrates most of the operations of the sensor and are a good basis for customizing to your application.

IMUs are great for absolute orientation estimation but not great for velocity or position estimation simply because errors add linearly or quadratically, respectively, with time and there is no easy way to compensate for these errors.

Optical flow sensors offer direct measurement of lateral (X/Y) velocity as long as the distance to the measurement surface is known; the PixArt PWM3901 optical flow sensor in combination with VL53L1 time-of-flight ranging sensor first developed by Bit-Craze allows UAV height stabilization and hovering. Optical flow sensors at fixed heights can allow rolling robots to track velocity quite accurately.

The problem with the PMW3901 is that it is somewhat power hungry using 9 mA in run mode. But more significantly, it requires light levels at least 60 lux to operate properly.

PixArt introduced the PAW3902 optical flow sensor a couple of years ago that allows the user to adjust the light sensitivity depending on the measured signal to as low as 9 lux sensitivity. In addition, the PAW3902 current consumption is a bit more modest 6 mA. Manual adjust of the light level works, it is just a bit clunky in practice.

All of these PixArt optical flow sensors also have a frame grab mode which allows the sensor elements to act like a low-resolution 35 x 35 pixel camera. The problem with previous generations of optical flow sensor is that each read of the 1225 pixels required two register reads, checking of a status flag, and constructing of the pixel data from two separate bytes, slowing the frame rate to a miserable once per 5 seconds in the PAW3902.

With the PAA3905, PixArt got it right. The light level adjustment is automatic (although can still be done manually), streamlining sensor management. The sensor is smaller than its predecessors, with fewer pins making design and assembly easier. The current usage is just 3.5 mA in run mode with the same 12 uA in shutdown mode. Light level sensitivity extends down to 5 lux. The frame grab occurs at a crisp ~15 Hz (56 milliseconds to complete), allowing low-resolution video imaging using the infrared-sensitive sensor element. This sensor is a winner!

The small breakout board is open source for easy integration into your application.

There is a well-commented Arduino sketch showing how to use the device for navigation and frame grabbing.

The frame grab rate is significantly improved over its predecessor, making for a practical low-resolution still imaging and video camera capability.

Power usage is a modest 3.5 mA and the sensor can move in and out of shutdown mode quickly allowing flexible power management.

The PAA3905 is a nice complement to ST's latest VL53L5 time-of-flight ranging camera!

Order pcbs from OSH Park and assemble some of your own, or order the fully assembled and tested PAA3905 breakouts here and see how useful this optical flow sensor can be for your application!
