PCIE M.2 NVME 2280 Gen3 SSD HAT for Raspberry Pi 5 MPS 2280 solid state drive expansion board

Rating:
73 % of 100
$29.90
Availability: In stock
SKU
RPI83134H
Brand
elecrow
Weight
205g

【Complete all-in-one experience】Provide a comprehensive Raspberry Pi 5 integrated experience and the best cooling-expansion solution;

【RPI5 MPS 2280 SSD Hat with Multi-interface】Featuring PCIe and M.2 M-key interfaces, dual LED indicators;

【Heat dissipation solution】An all-aluminum heat sink set with a cooling fan can effectively solve the heat dissipation problem of Raspberry Pi 5;

【Aluminum alloy casing】Rugged and durable aluminum alloy casing, providing extra protection and heat dissipation.

Description

This PCIE SSD all-in-one kit is specially designed for Raspberry Pi 5, providing the most practical solution for expanding the solid-state drive (SSD). It includes an SSD expansion board that extends the PCIE interface to connect to an SSD, an all-aluminum heat sink set with a cooling fan, and an aluminum alloy case designed specifically for Raspberry Pi 5. This comprehensive kit offers users a perfect all-in-one experience with Raspberry Pi 5 while addressing the common issue of heat dissipation.

The included expansion board supports booting the system from an NVMe SSD, enabling easy storage expansion. Alternatively, the SSD can be used independently for storage expansion while booting the system from the TF card. The expansion board's embedded design provides convenient access to the 40-pin GPIO, simplifying operations for users.

Essentially, this Raspberry Pi 5 MPS 2280 SSD Hat all-in-one kit not only enhances storage scalability and performance, making Raspberry Pi 5 more suitable for projects and applications that require high storage performance, such as data storage, virtualization, and artificial intelligence but also effectively solves the heat dissipation problem associated with Raspberry Pi. It becomes the optimal choice for users to develop Raspberry Pi projects.

You can click if you would like to learn more about the SSD expansion board or purchase a superior FPC cable.

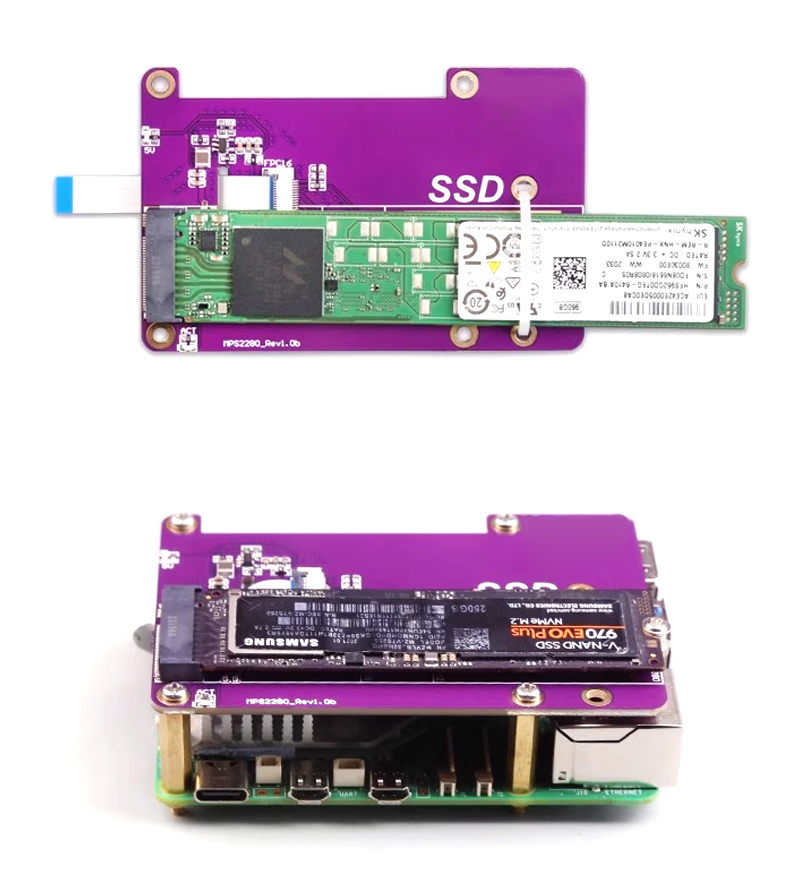

NVME 2280 connect with Raspberry Pi 5

Note: It doesn't include the NVME 2280 SSD.

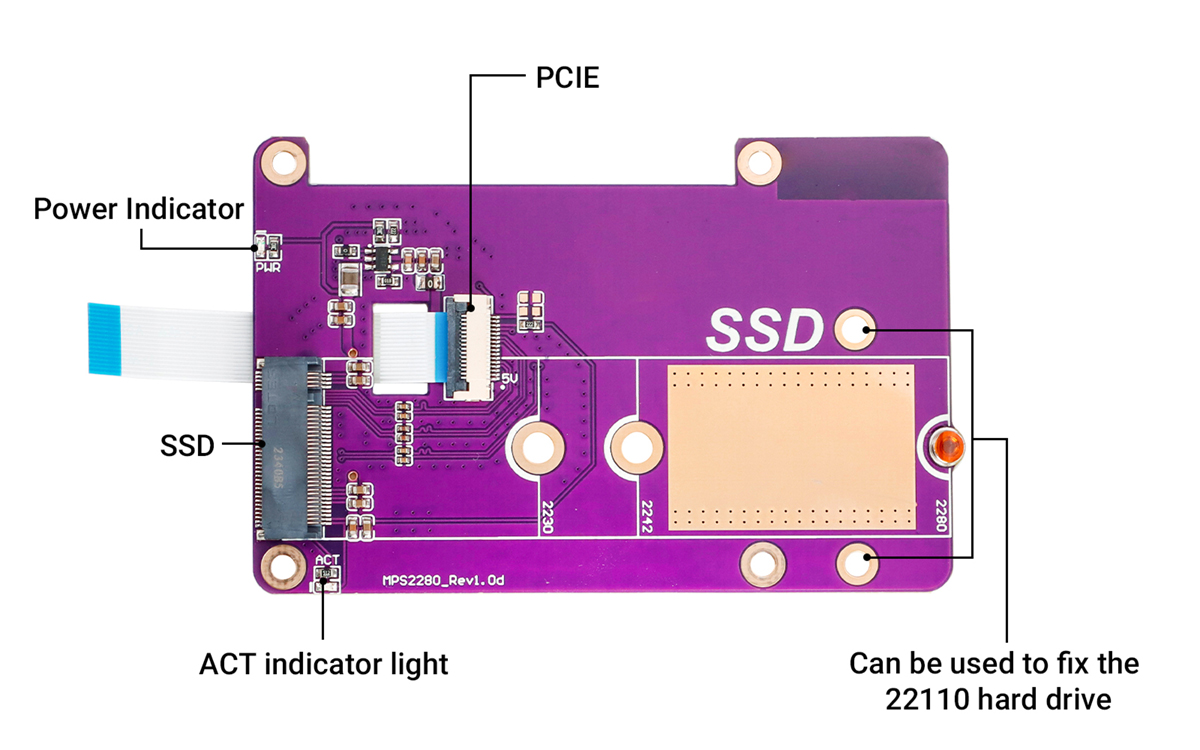

SSD Expansion board interface overview



SSD expansion board dimension

Raspberry Pi 5 aluminum case dimension

Feature

  • Perfect Raspberry Pi cooling-expanding all-in-one computer experience;
  • Featuring PCIe and M.2 M-key interfaces, dual LED indicators, support M.2 2280 SSD;
  • An all-aluminum heat sink set with a cooling fan can effectively solve the heat dissipation problem of Raspberry Pi 5 and maintain the stable operation of the device.
  • Rugged and durable aluminum alloy casing designed for Raspberry Pi 5, providing extra protection and heat dissipation.



Specification

SSD Expansion Board

Interface

PCIe interface and M.2 M-Key interface

Working input current

3.3V 1.5A

Dimension

56mm*85mm

Weight:

18.5g

Case

Material

Aluminum

Dimension

91.8*60*40mm

Weight

102g

Active Cooler

Dimension

62*45mm

Weight

25g

FPC Cable

Dimension

50mm*8cm

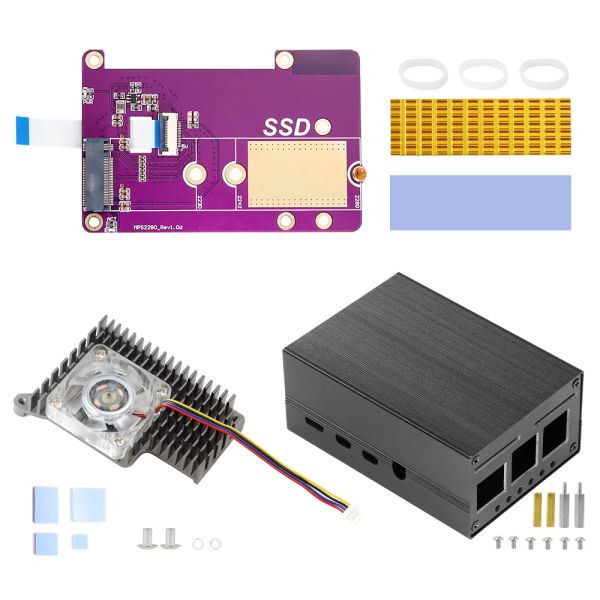

Package List

  • 1x PCIE to SSD Expansion board
  • 1x FPC Cable
  • 1x Aluminum Case with Screws
  • 1x SSD Heat Sink
  • 1x Raspberry Pi 5 Heat Sink Fan
