Description

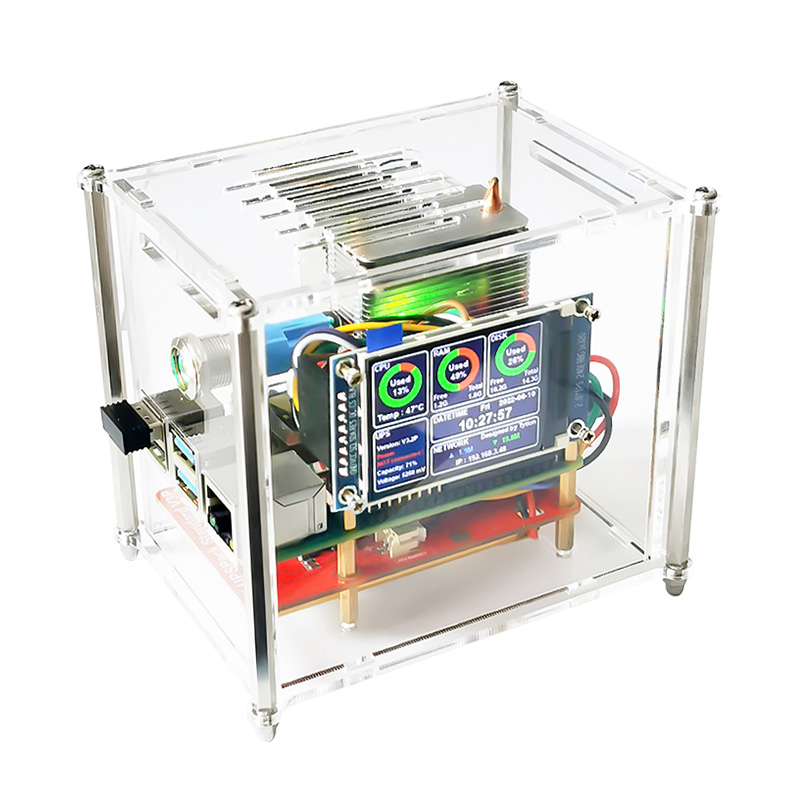

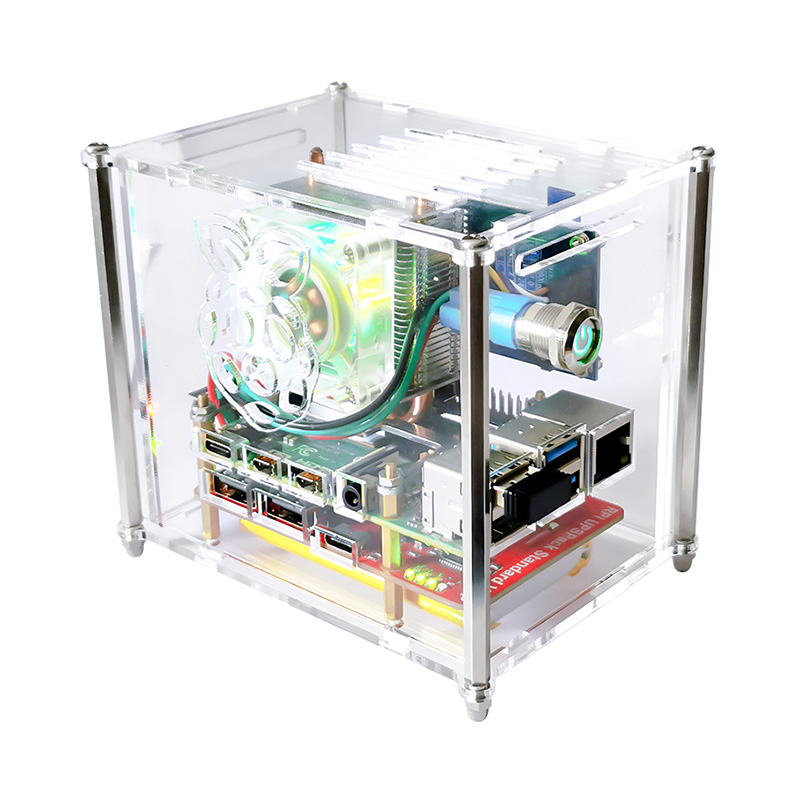

This is an ICE tower cooling fan kit for Raspberry Pi 4B. It is equipped with a custom-made acrylic shell kit, a 2-inch IPS 240*320 LCD screen, a 12mm metal self-locking switch, and a UPS battery expansion board, which can connect to a battery for an uninterruptible power supply.
It solves the problem that the Raspberry Pi generates a lot of heat, the switch is inconvenient, and the sudden power failure causes damage to the Raspberry Pi files. The ice tower fan with a 5mm copper tube, multi-layer heat sink, and 7-blade design can solve the heat dissipation problem of Raspberry Pi very well. The 2-inch IPS LCD screen can monitor the operating status of Raspberry Pi and UPS power supply in real-time, including CPU, RAM DISK, clock function, and network status monitoring. The shell is made of high-quality acrylic material, which has high light transmittance and will not cover the RGB light switch, balancing beauty and practicality.
Feature
- Support Raspberry Pi 4B
- 2-inch LCD display can monitor the status of Raspberry Pi and UPS power supply in real-time
- Support monitor CPU, RAM DISK, clock function, and network status
- Support UPS uninterruptible power supply, realize power failure without restarting
- ICE Tower Cooling fan with colorful LED provides strong heat dissipation
- Compact and mini, easy to assemble
Specification
Shell |
Material |
Acrylic |
Size |
107*78*96mm |
|
Color |
transparent |
|
Applicable Model |
Raspberry Pi 4B |
|
Ice Cooling Fan |
Material |
PTB,Aluminum, Copper |
Fan blade |
7 |
|
Power |
0.4w |
|
Voltage |
5v |
|
Current |
0.8A |
|
LCD Display |
Size |
2 inch |
Resolution |
240(H)*320(W) |
|
Interface Type |
SPI |
|
Pin |
8 Pins |
|
Angle of view |
Full view |
|
Operating Temperature |
-20~70℃ |
|
Logic Voltage |
3.3V |
|
Backlight Type |
4 LED |
|
Connection method |
2.54 pitch header |
|
Weight |
15g |
Package List
- 6x Acrylic Cases
- 4x M3 Nuts
- 4x M3*90+6 Studs
- 4x M3*6 Screws
- 8x M2.5*11+6 Copper Pillars
- 4x M2.5 Screw Nuts
- 4X M2.5 Screws
- 4x M2 Screw Nuts
- 4X M2*10 Screws
- 1x U-shaped ICEtower cooling fan and black fan
- 1x Screwdriver
- 1x Screw Copper ColumnPack
- 1x 2 inch LCD Display
- 1x 24p DuPont female seat with 8 wires
- 1x 10P Positive curved pin header
- 1x Self-locking switch

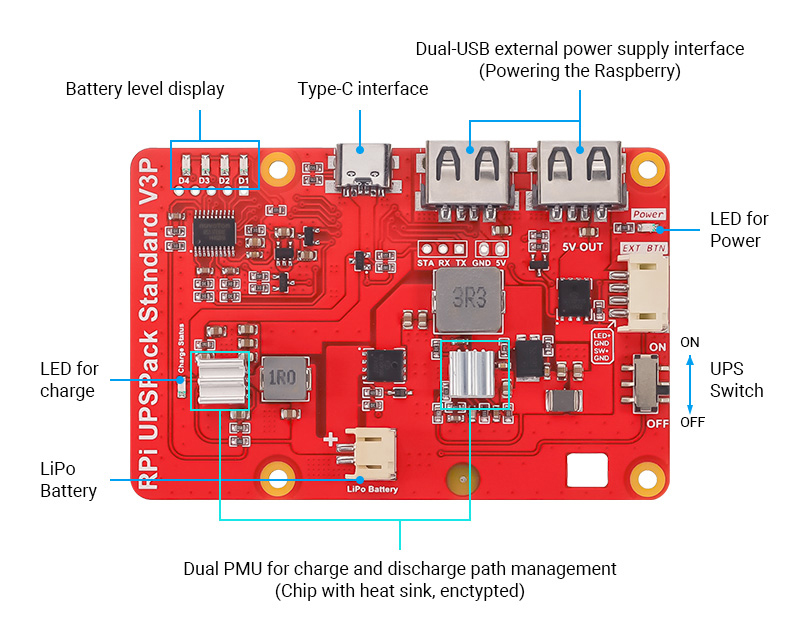

- 1x UPS board
- 5x UPS special silicone DuPont line
- 1x GPIO edge expansion board
- 1x TF Extension Card
