In today's advanced electronics manufacturing, the precision demanded by Surface Mount Technology (SMT) is non-negotiable. Component packages keep shrinking (think 0201s, 01005s), lead pitches are incredibly tight (0.3mm BGA pitch, for instance), and 3D stacked packages (PoP, SiP) are commonplace. This reality has pushed soldering from a basic step to a complex systems engineering discipline. Reflow soldering, central to SMT, isn't just about tweaking parameters anymore; it’s a blend of materials science, thermodynamics, fluid dynamics, and precision mechanical control. This paper dissects the critical technical junctures within reflow soldering, showing how a systematic, engineered approach genuinely boosts production efficiency, soldering quality, and slashes rework rates.
I. Beyond the Basics: SMT Soldering's Precision Hurdles and the Need for Systems Thinking
Traditional views on soldering often get bogged down in single-stage thinking. But with modern High-Density Interconnect (HDI) and complex packaging, even a tiny process slip can mushroom into catastrophic yield loss. A systems mindset is therefore essential—soldering quality is the direct result of many interacting factors.
- Microscopic Flaws, Macroeconomic Headaches: A slight solder paste slump, a hidden BGA void, or a micro-crack from thermal stress can mean early product failure. The fallout – damaged brand reputation, costly recalls – dwarfs initial production costs.
- The Squeezed Process Window: Lead-free mandates, miniaturization, and high-mix manufacturing have drastically narrowed what was once a more forgiving process window. Lead-free solders like SAC305, for example, melt higher and wet less readily, demanding far tighter control over temperature profile accuracy and uniformity.
II. Deep Optimization of the Reflow Soldering Process Chain: From Material Specifics to In-Process Controls
1. Solder Paste Deposition: More Science Than "Spread"
Accurate, consistent solder paste deposition is the foundation of quality reflow. The technical depth here goes well beyond a simple squeegee pass.
Stencil Technology – The Nitty-Gritty:
- Materials & Fabrication: Laser-cut stainless steel stencils are standard. For ultra-fine pitch (<0.4mm), however, electroformed nickel stencils offer a clear edge with smoother aperture walls and tighter dimensional control.
- Aperture Design & Optimization – Key Ratios and Shapes:
- Aspect Ratio (Aperture Width/Stencil Thickness): Needs to be >1.5 for clean paste release.
- Area Ratio (Aperture Area/Wall Area): Should be >0.66, crucial for small apertures.
- Aperture Geometry: Trapezoidal apertures (wider top, narrower bottom) improve release. Specialized designs like "U-shaped" or "home-plate" tackle issues like solder balling.
- Step Stencils: For boards with mixed component types (e.g., power parts alongside fine-pitch QFPs), step stencils vary thickness locally for tailored paste volumes.
- Surface Treatments: Nano-coatings drastically cut friction between paste and aperture walls. This boosts transfer efficiency and means less frequent cleaning – a big plus for tiny apertures and high throughput.
Printing Parameters – Precision is Key:
- Squeegee: Material (metal/polyurethane), durometer, angle (45°-60° typical), pressure, and speed need precise, ideally closed-loop, control. These directly affect how well apertures fill and how flat the deposit is.
- Print Gap (Snap-off) & Support: On-contact (zero-gap) printing is the norm. But PCB flatness and solid underside support (magnetic pins, vacuum tooling) are make-or-break for print quality, stopping board warp from ruining deposits.
- Stencil Cleaning: The how and how often of automated under-stencil cleaning (dry, wet, vacuum) directly impacts print consistency and defect rates down the line.
2. Solder Paste Materials Science: Microstructure Governs Performance
Solder paste isn't just metal powder and flux mixed together; its formulation is a deep dive into chemistry and materials science.
Solder Alloy & Powder – What Matters:
- Alloy Choice: Beyond leaded/lead-free, the application drives selection. Low-temp solders (BiSn, In-based) suit heat-sensitive parts or multi-stage reflow. High-temp alloys handle harsh environments. Trace elements in the alloy heavily influence long-term joint reliability (fatigue, creep resistance).
- Powder Type (IPC J-STD-005): Type 3 (25-45µm) was common. Now, fine-pitch drives use of Type 4 (20-38µm), Type 5 (15-25µm), even Type 6 (5-15µm) for good fill in tiny apertures and to fight bridging.
- Powder Shape & Oxide Level: Highly spherical powder, tight particle size distribution, and low oxide content are non-negotiable for good printing and soldering.
Flux Chemistry – The Unsung Hero:
- Activity & Cleaning: No-Clean fluxes are popular because residues often don't need removal. But their activity, residue corrosivity, and ICT probe-ability need careful checking. Water-Soluble fluxes are highly active but demand thorough cleaning post-soldering, or residues cause serious electrochemical migration. Rosin-based fluxes vary in activity (R, RMA, RA, etc.).
- Rheology: The paste's viscosity, thixotropy (shear-thinning), slump resistance, and tackiness are critical for good prints, stable component placement, and preventing pre-reflow defects like component shift or paste stringing.
- Voiding Control: Voids are a major reliability killer, especially for BGAs and power device thermal pads. Controlling volatiles in the flux, solvent choice, and specific chemical additives are key to minimizing them.
3. Thermal Management & Profile Engineering: Beyond Basic "Four Zones"
An accurate, uniform, repeatable temperature profile is the heart of reflow. Its complexity goes far beyond a simple four-zone model.
Heat Transfer:

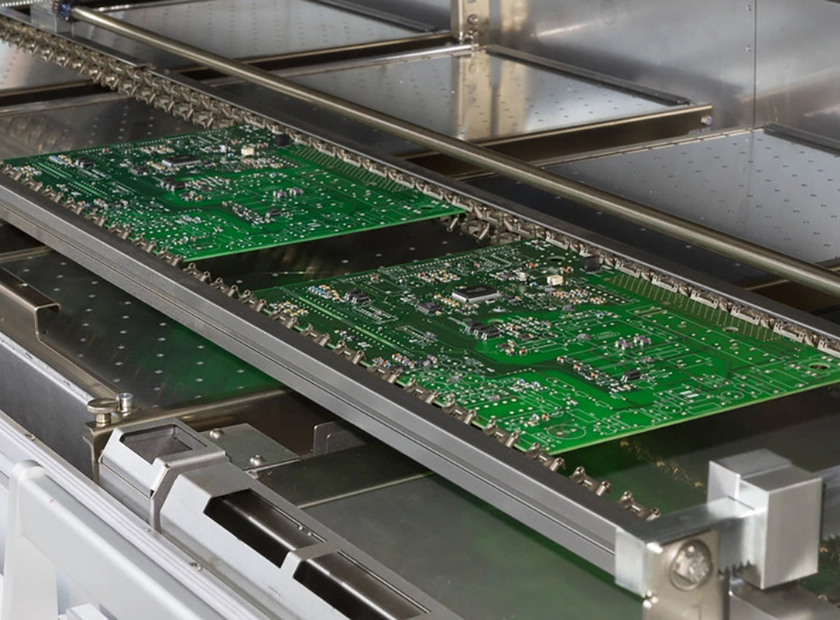

Modern reflow ovens mostly use forced convection – far more efficient and uniform than older IR heating. Nitrogen (N2) atmosphere can widen the process window, improve wetting, and cut oxidation, a plus for OSP-finished PCBs and sensitive parts.
Profiling – The Fine Art:
- Ramp Strategies (RTS vs. RSS): Ramp-to-Spike (RTS) is simpler, ramps faster, but can cause bigger board ΔTs with mixed thermal mass components. Ramp-Soak-Spike (RSS) has a soak zone for temperature equalization and full flux activation, but might use up more flux activity. The choice depends on the product and paste.
- ΔT Control: Temperature differences across the PCB and between components must be tight (typically <5-10°C) to prevent local overheating or bad joints.
- Key Parameters – Nail Them Down: Peak Temperature, Time Above Liquidus (TAL), and ramp/cool rates directly shape the Intermetallic Compound (IMC) layer (formation, thickness, microstructure), which dictates long-term joint reliability.
- Thermocoupling Strategy: Using multiple thermocouples (3-5 minimum, more for complex boards) at critical spots (high/low thermal mass parts, board edges/center) is fundamental for accurate profiling and verification.
Oven Capability:
Zone count (5, 8, 10+), heater power/layout, airflow, and cooling system efficiency/control all determine how well an oven can deliver stable profiles and a wide process window.
4. Component & PCB Design (DFM/DFA): A Crucial Partnership
Soldering quality isn't just a manufacturing issue; it's deeply tied to upstream design choices.
Component Factors:
- MSL (Moisture Sensitivity Level): Bake moisture-sensitive parts per their MSL before soldering. Trapped moisture "popcorning" at high temp will ruin them.
- Coplanarity: Out-of-spec lead coplanarity on BGAs, QFPs, etc., means opens or bad joints.
PCB Design for Manufacturability (DFM):
- Pad Design: Dimensions, shape, spacing, and solder mask definition (SMD vs. NSMD) are critical for paste volume control, anti-bridging, and wetting.
- Thermal Design: Large copper areas need thermal reliefs to stop heat sinking and cold joints. Conversely, poor heat paths can cause solder joints to overheat.
- Via-in-Pad (VIP): If not done right (e.g., incompletely filled/capped), VIPs can cause paste wicking, voids, or rogue solder balls.
- Fiducials: Accurate, reliable registration marks for printers and placers are essential for precision.
5. Advanced Inspection & Smart Process Control (SPC/APC): Closing the Loop
Feedback is key to continuous improvement and stable, high-yield production.
Inspection Technologies:
- SPI (Solder Paste Inspection): 3D SPI measures paste volume, area, height, offset, and shape on every deposit. It catches print defects early and can feed data back to the printer for auto-correction (via APC).
- AOI (Automated Optical Inspection): Spots defects after placement and reflow – missing parts, offsets, wrong polarity, bridges, insufficient solder, tombstoning. AI-driven AOI means better accuracy, fewer false alarms.
- AXI (Automated X-ray Inspection): For hidden joints (BGAs, QFNs, LGAs), AXI is the only non-destructive way in. 2D AXI finds gross defects. 3D AXI (or CT) gives a much clearer picture of voids, joint shape, and wetting.
Data-Driven Decisions:
Pulling together data from SPI, AOI, AXI, and oven monitoring, then using SPC to track key process parameters, helps predict problems. This shifts focus from "firefighting" to "fire prevention."
Systems Engineering is Driving Soldering Innovation
Optimizing reflow soldering for better efficiency, quality, and less rework isn't about isolated tweaks. It's a complex systems engineering task involving materials, equipment, design, process control, and data analysis. It demands cross-disciplinary know-how, from understanding solder paste particle behavior to grasping production line thermodynamics. By continuously digging deeper and synergizing efforts in paste deposition, material choice, thermal management, DFM, and smart controls, electronics manufacturing can meet future tough challenges and achieve true lean production with top-tier quality. This systematic approach builds core competitive strength, vital in today's fierce market.
