Unlocking the Potential of Long-Range Wireless Connectivity with LR1302 LoRaWAN Gateway Module

Prologue

In the ever-evolving landscape of the Internet of Things (IoT), reliable and efficient communication is the cornerstone of success. Introducing Elecrow LR1302 LoRaWAN gateway module and the LoRaWAN Hat, cutting-edge solutions designed for your LoRaWAN devices.

What is LoRa?

LoRa, standing for Long Range, is a wireless communication technology for long-distance communication while keeping power consumption low. Derived from Chirp Spread Spectrum (CSS) technology, LoRa encodes information on radio waves using chirp pulses—an ingenious concept inspired by the communication methods of dolphins and bats.

What is LoRaWAN?

LoRaWAN, the acronym for Long Range Wide Area Network, is a communication protocol designed for long-range, low-power IoT (Internet of Things) applications, serving as a network protocol improving the communication efficiency between sensors and gateways. It is based on the LoRa wireless modulation technology, which enables communication over several kilometers while consuming little power. Operating at the software layer, LoRaWAN applies Media Access Control (MAC), defining how the connected LoRaWAN devices use LoRa.

Elecrow LR1302 LoRaWAN Gateway Module

Elecrow LR1302 stands out as a new generation LoRaWAN gateway module, sporting a mini-PCIe form factor that combines low power consumption with high performance. The Semtech LoRaWAN baseband chip of SX1302 is a technological marvel that endows with higher sensitivity, lower power consumption, and lower operating temperature compared with the previous versions of SX1301 and SX1308 LoRa chips.



With support for 8-channel data transmission—an impressive upgrade—the LR1302 LoRaWAN gateway module significantly enhances communication efficiency and capacity. This makes it a powerhouse for IoT applications requiring smoother data transmission.



Due to variations in communication frequency bands across different countries, Elecrow offers two versions of the LoRaWAN gateway module. The US915 version is tailored for customers in the United States, operating within the frequency band of 863-870MHz. Meanwhile, the EU868 version is designed for customers in European countries, functioning within the frequency band of 902-928MHz. Thus, the Elecrow LoRaWAN Gateway Module ensures compliance with regional regulations and optimal performance for users in their respective locations.



Buy Now with the Cost-effective Price of $23.9!

EU868 - Elecrow LR1302 LoRaWAN Gateway Module

US915 - Elecrow LR1302 LoRaWAN Gateway Module

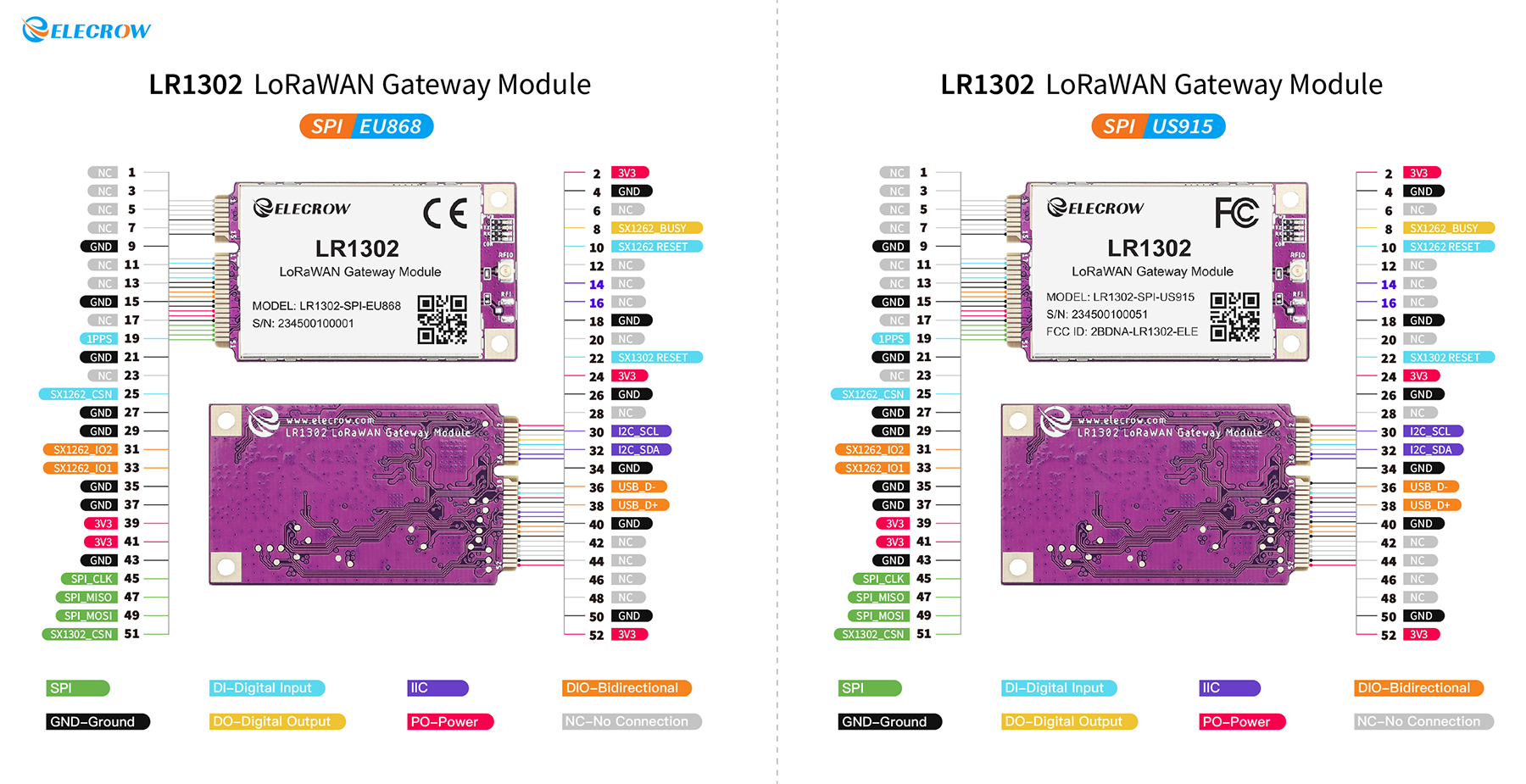

lorawan gateway module

Elecrow LR1302 LoRaWAN Hat

To optimize your IoT application workflow, the Elecrow LoRaWAN Hat holds paramount significance, complementing the functionality of the LR1302 LoRaWAN gateway module. Specifically designed as a Raspberry Pi expansion board, the LoRaWAN Hat interfaces with the LR1302 LoRaWAN gateway module and is compatible with Raspberry Pi (up to Raspberry Pi 5).



Equipped with a GPS module and an RTC real-time clock, the LoRaWAN Hat facilitates real-time monitoring within your LoRaWAN devices without necessitating an internet connection. Additionally, the integrated GPS module offers the convenience of obtaining precise geolocation data for your LoRaWAN gateway.



In ensuring compatibility with the LR1302 LoRaWAN gateway module's mini-PCIe form factor, the LoRaWAN Hat automatically configures the standard 52-pin gold finger to the Raspberry Pi GPIO connector, featuring a 40-pin compatible header. This streamlines the integration process with Raspberry Pi for tech enthusiasts. Furthermore, the inclusion of a cooling fan enhances heat dissipation for the Raspberry Pi, thereby optimizing its overall performance.



By using the Elecrow LR1302 LoRaWAN Hat in conjunction with the LR1302 LoRaWAN Gateway Module and a Raspberry Pi, users can construct a comprehensive and compact LoRaWAN wireless communication gateway.

Get Elecrow LR1302 LoRaWAN Hat with the price lower to $16.90.

elecrow lorawan gateway module

Use Scenarios for LoRaWAN

With the ability to handle multiple channels, the Elecrow LoRaWAN Gateway Module ensures communication, facilitating the smooth exchange of data between devices and gateways. With the capabilities of LoRaWAN, it is suitable for various real-time data transmission scenarios, spanning applications such as smart cities, agriculture, industrial automation, and beyond.



  • Smart Agriculture: In precision agriculture, sensors deployed across vast farmlands collect real-time data on soil moisture, temperature, and crop health.
  • Smart Cities: Smart street lighting systems utilize IoT technology to optimize energy consumption based on ambient light levels and pedestrian activity.
  • Industrial Automation: In a smart factory setting, numerous IoT devices, such as sensors and actuators, communicate to streamline production processes.
  • Environmental Monitoring: Environmental monitoring stations are strategically placed to collect data on air quality, pollution levels, and weather conditions.
  • Supply Chain and Logistics: IoT-enabled tracking devices are deployed on shipping containers to monitor location, temperature, and humidity during transit.
  • Smart Metering: Utility companies deploy smart meters to collect consumption data from homes and businesses.
  • Healthcare Monitoring: Wearable health devices, such as remote patient monitoring sensors, collect vital signs and health data.
  • Asset Tracking: IoT-enabled trackers are attached to valuable assets, such as vehicles, equipment, or high-value inventory.

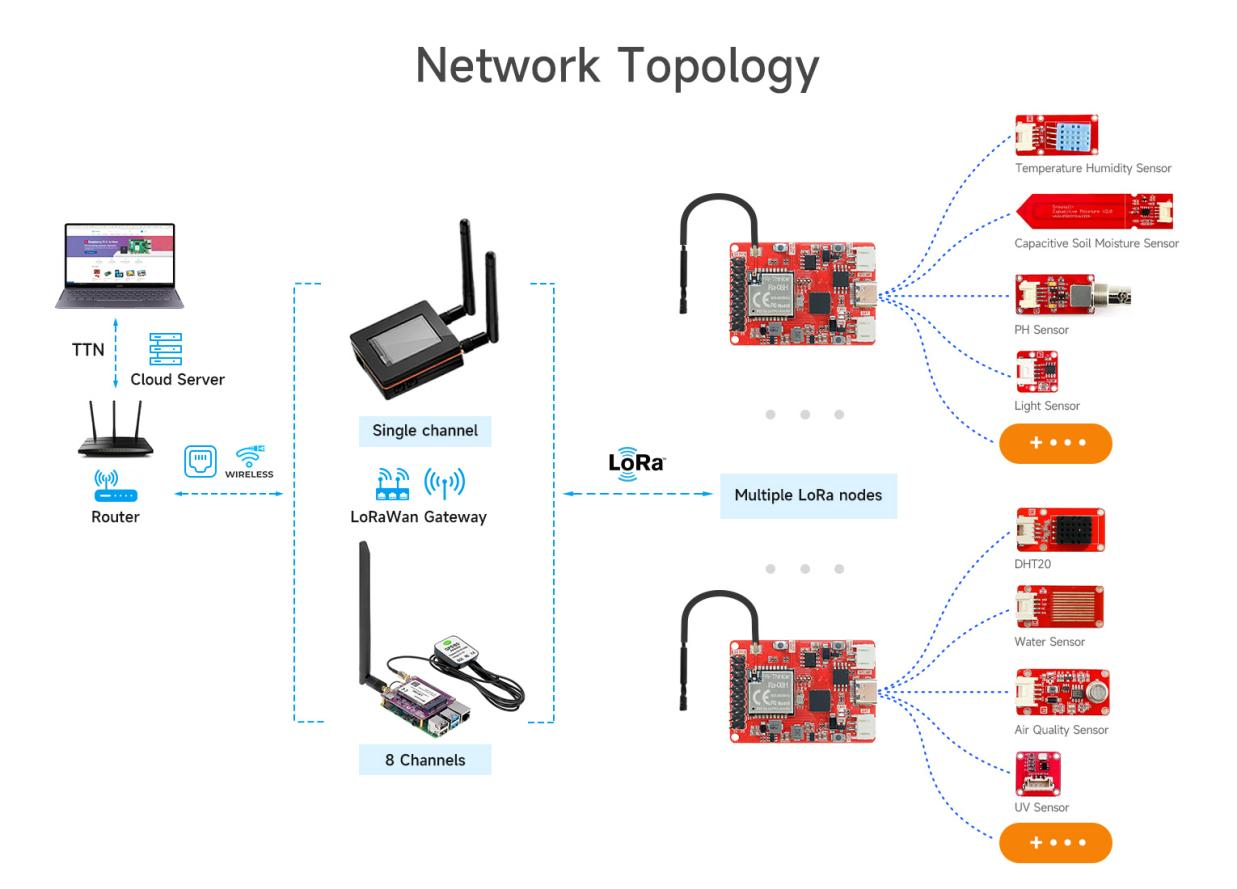

  lorawan network topology

Elevate Your IoT Applications with Elecrow LoRaWAN Gateway Module

Elecrow invites you to seize the opportunity and embark on your IoT journey with the LR1302 LoRaWAN Gateway Module and LoRaWAN Hat. Propel your endeavors into the wireless future, where possibilities are limitless, connections are robust, and innovation knows no bounds. Your gateway to a connected world awaits—embrace it today.
