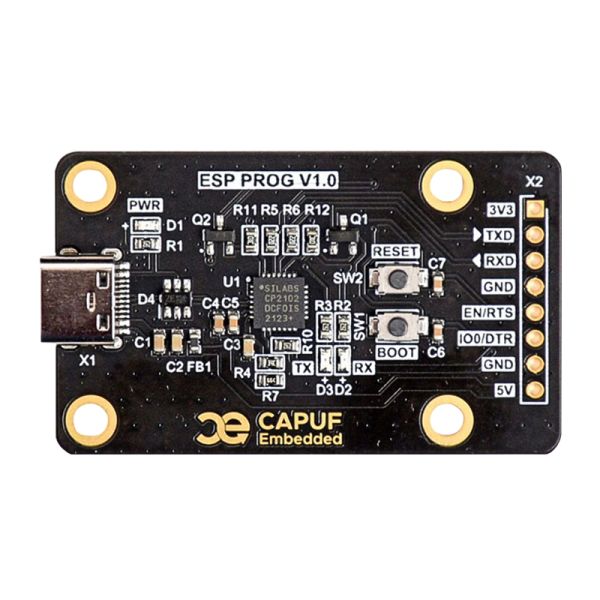

CAPUF ESP PROG V1

was $7.00 Special Price $6.40
Availability: In stock
SKU
CQA240129P1
Weight
100g

Descriptions

It can be used in multiple ways like use it for programming ESP8266, ESP32, or any other microcontroller which needs boot Pin and Reset Pin control along with UART RX, and TX for flashing the MCU with a new program.

Or, one can also use it as a USB to UART adapter.

We see many designs where developers put the USB to UART (with auto reset and boot) on their custom hardware so that with the same interface they will be able to reprogram the board as well in the production & field easily.

But, this is not recommended because this poses a risk.

Someone can hack your hardware to do something else with their firmware or break it easily to make you look bad in front of the customer, all these things happen in real life.

So, you should not have an easy way exposed, to reflash your MCU.

What you should do is, have a 6-pin connector(RX, TX, 3.3V, GND, EN, IO0) on the board and buy a programmer board to do the programming in the production. For the field to have a secured OTA or secured physical interface.



Features

  • Compact size: 50mmx30mm
  • USB-C Type Interface: you can connect a USB in any direction. Use USB-A to USB-C Cable.
  • LEDs for Power, RX, TX
  • Switch for Reset and Boot
  • Both 3.3V and 5V are available on the O/P connector
  • All signals on a standard 2.54mm Pitch Header (Header will come along with the board (unsoldered))
  • We test each and every ESP32 Programmer board before shipping
