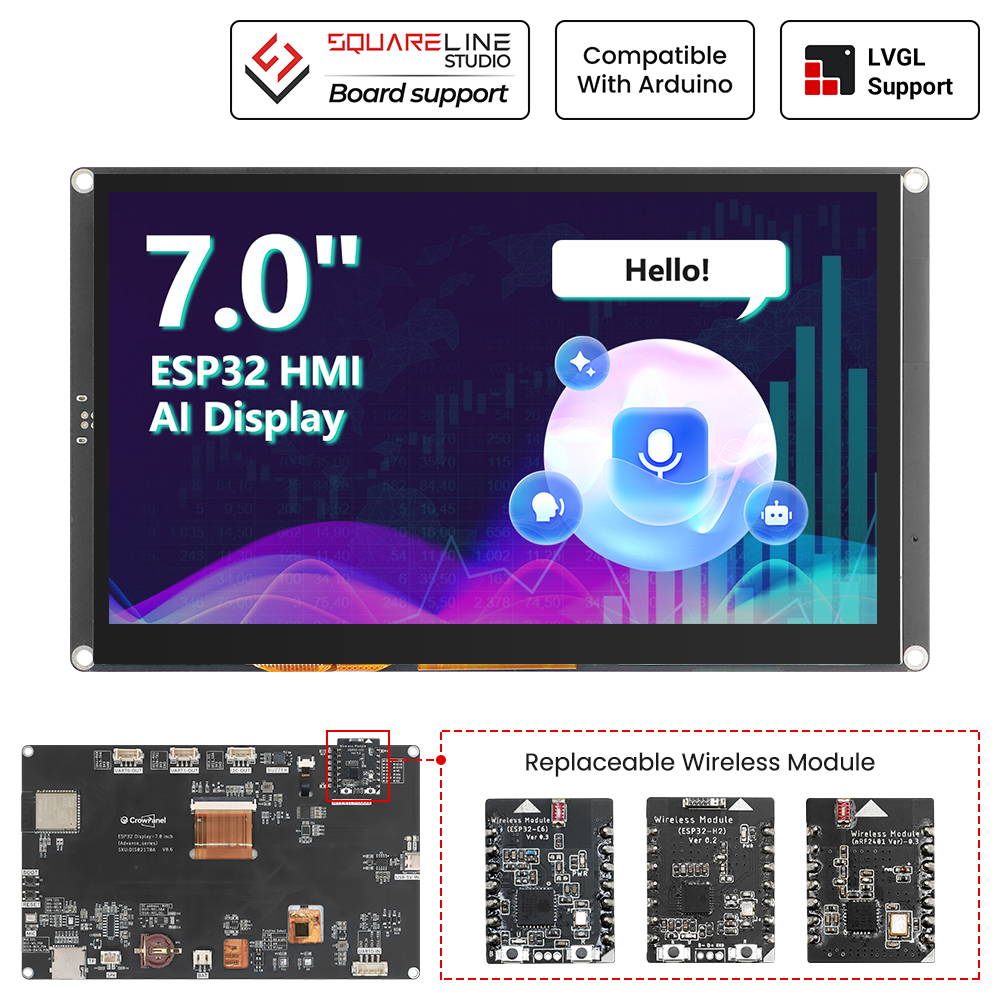

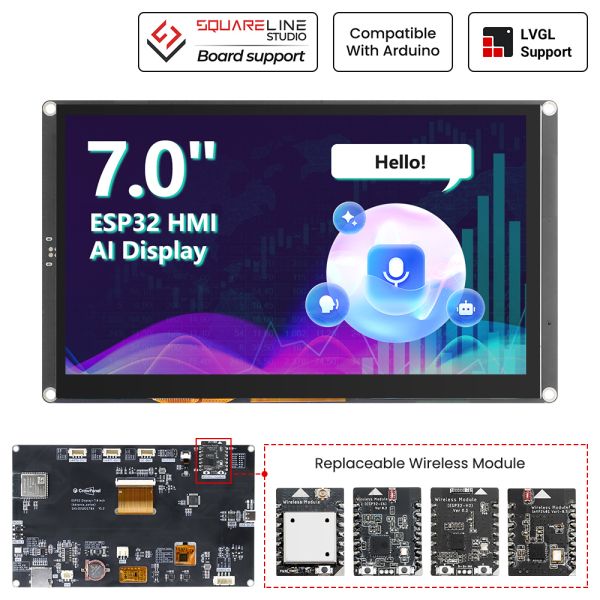

[ESP32 HMI 7inch Display] 800x480 resolution IPS capacitive touch display, integrated ESP32-S3 module, frequency up to 240MHz, compatible with Bluetooth 5.0 and BLE;
[Smart AI Function] Equipped with a speaker port and a high-performance microphone, supporting voice command interaction, voice recognition, and speech synthesis;
[Replaceable Wireless Module Design] Replaceable plug-in wireless communication module supports multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread, and Wi-Fi 6;
[Real-time Clock Function]
[Multiple Development Environments] Supports development environments such as Arduino IDE and Espressif IDF, and is compatible with LVGL graphics library.
[❤️What you get] 24H Friendly Customer Service and 1 Year warranty.1x CrowPanel Advance 7" display,1x Charging Cable,1x Dupont Cable, 16x Tutorials.
If you want to buy the basic series of ESP32 HMI Display 7.0" together, please click the link.
Note: The version currently on sale is V1.3. And this version doesn't support Meshtastic.
Following the acclaim of the CrowPanel Basic Series screens, we are now launching the upgraded CrowPanel Advance Series screens, aiming to provide more outstanding performance and richer features.
The CrowPanel Advance ESP32 7-inch display is a powerful HMI touchscreen with an 800×480 IPS screen and an ESP32-S3 core processor. This processor features a dual-core Xtensa 32-bit LX7 CPU with up to 240 MHz frequency, 512 KB SRAM, 8 MB PSRAM, and 16 MB Flash. The integrated 2.4GHz Wi-Fi and BLE functions, combined with the built-in RF antenna, ensure the stability and reliability of the wireless connection. Also, the diverse interfaces and low power make this 7-inch screen ideal for HMI applications that need strong wireless connectivity. It supports the Arduino IDE, Espressif IDF, and PlatformIO. It is compatible with the LVGL graphics library and supports C++.
This 7-inch screen uses an IPS panel, and the 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle. Capacitive touch technology provides a responsive user experience.
A notable feature of the CrowPanel Advance 7-inch display is its integrated AI function. Users can interact by using the microphone and speaker. This includes voice recognition and speech synthesis. They can have seamless conversations with smart assistants to get information. Another highlight of this screen is that its modular design provides diversified wireless communication options. Users can replace modules as needed. They support multiple protocols: Zigbee, LoRa, nRF2401, Matter, Thread, and Wi-Fi 6. One screen and different modules can meet the wireless connection needs of different scenarios.
This upgrade enhances connectivity flexibility and reliability, provides more diverse application possibilities, and meets the demands of modern intelligent systems for remote monitoring and control.
Quick Click to where you are interested: #Feature, #Customer's project, #Specification, #Documents, #Wireless Module Specification.
Designed & manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.
Note: The LoRa module purchased on this page does not include the Meshtastic firmware and is intended solely for LoRa communication.
Note: The version currently on sale is V1.3. Some parts of version V1.3 have been optimized and replaced. Some of the code of version V1.3 is not universal and is still being updated.
If you want to know the reviewer's feedback, please click here.
Integrated Intelligent AI Functions
Voice interaction is achieved through the microphone and speaker, allowing seamless conversations with the smart assistant and easy access to information.

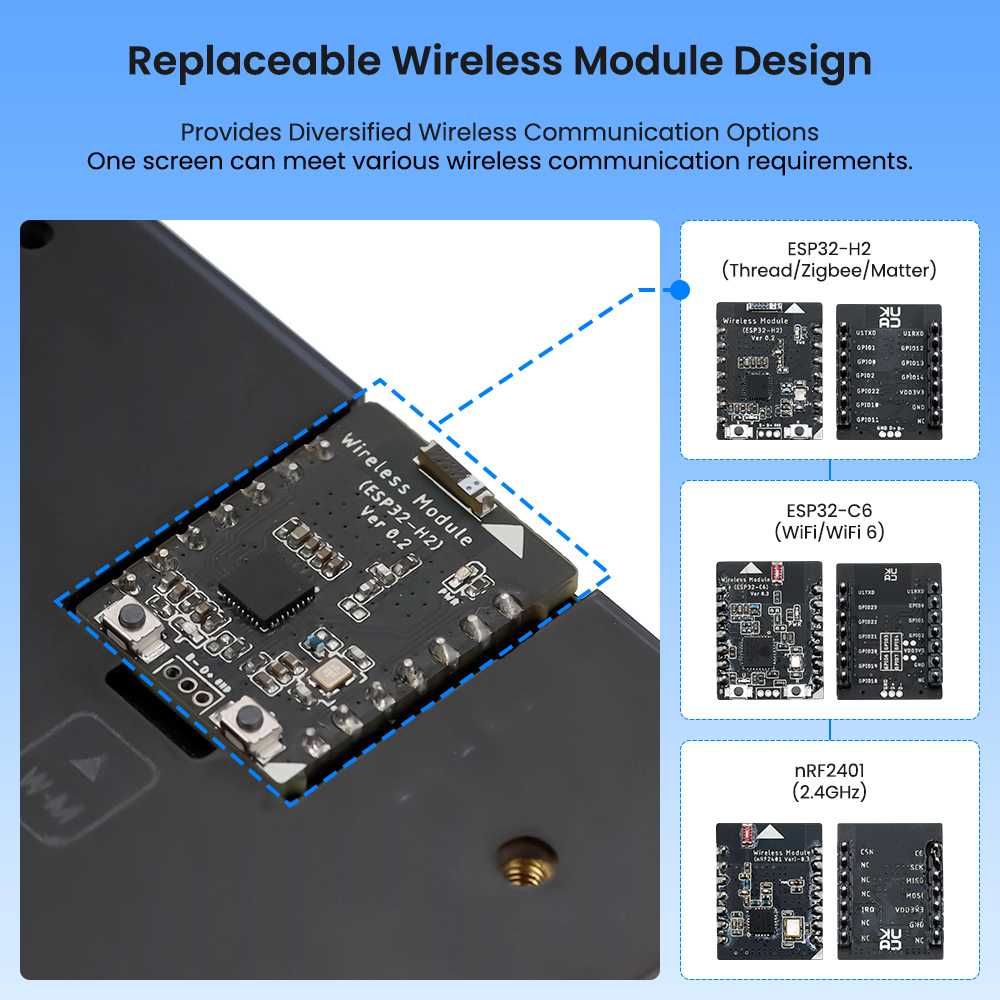

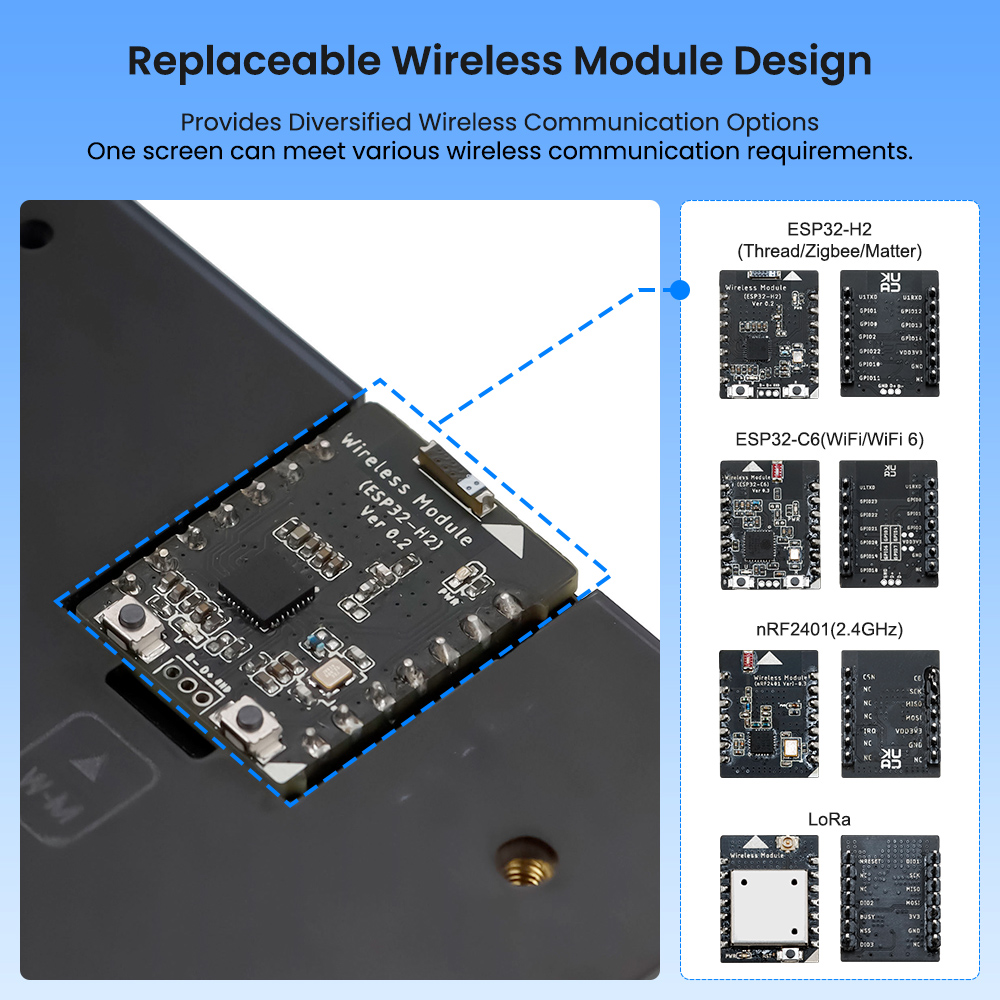

Replaceable Wireless Module Design, Provides Diversified Wireless Communication Options
By replacing the module, it supports multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread and Wi-Fi 6. One screen can meet various wireless communication requirements.
IPS Panel With 178°Wide Viewing Angle
The 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle.
Support Multiple Development Environments
It supports multiple development environments such as Arduino IDE, Espressif IDF, and PlatformIO, and development languages like C++ to meet the needs of different developers and make every project possible.
Support Open Source Graphics Library - LVGL
It supports the LVGL graphics library, and you can design various UIs.
Design And Build UI Easily With SquareLine Studio
Easily design and build your own LVGL UI with SquareLine Studios, simplifying design and development.
Squareline Vision has entered BETA, sign up now to get 40% off all licenses. https://vision.squareline.io/
Connect With More Than 150+ Crowtail Sensors
Application Scenario
It is suitable for various scenes such as automotive HMI, medical equipment, drone control, camera control, smart home, home automation, industrial control, civil electronics, smart agriculture, environmental monitoring and IoT application devices.
Hardware Overview

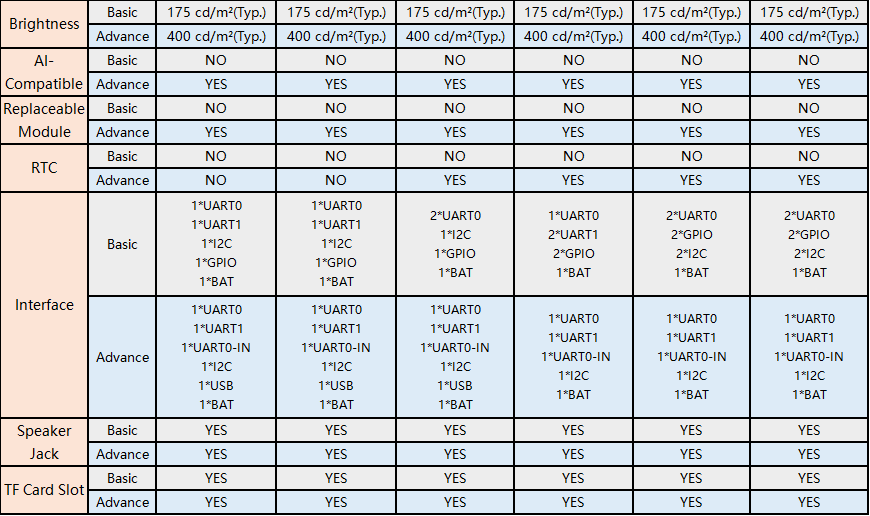

What's the difference between the CrowPanel Basic Series and Advanced?
Engineers and technicians, system integrators, facility managers, R&D personnel, agricultural workers, environmental scientists, medical professionals, retailers and restaurant owners, educational institutions, energy companies, etc.

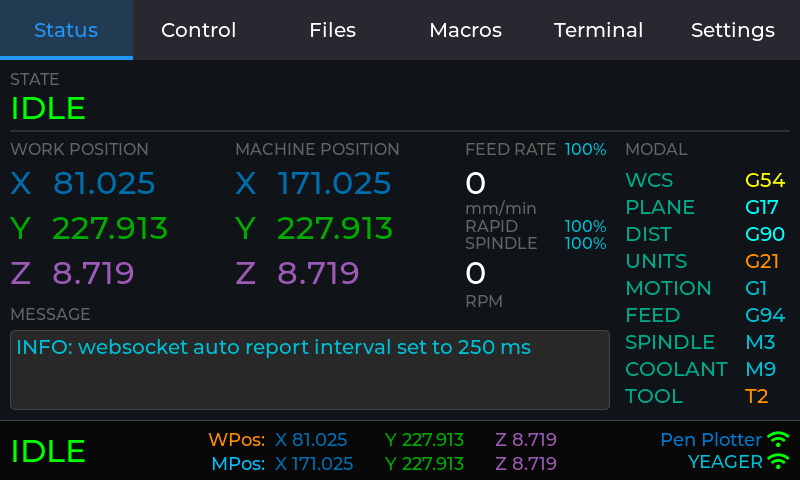

Local Private AI Assistant with CrowPanel Advance | Build Your Own Digital Drawing Board with CrowPanel Advance |
|
![]() |
Main Chip-ESP32-S3-WROOM-1-N16R8 |
|
CPU/SoC |
high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz |
System Memory |
512KB SRAM、8M PSRAM |
Memory |
16M Flash,384KB ROM |
Development Language |
C/C++ |
Development Environment |
ESP-IDF、Arduino IDE、PlatformIO、LVGL |
Screen |
|
Size |
7.0 inch |
Diver IC |
SC7277 |
Resolution |
800*480 |
Display Panel |
IPS Panel |
Touch Panel |
Capacitive Single Touch |
Viewing Angle |
178° |
Brightness |
400 cd/m²(Typ.) |
Color Depth |
16-bit |
Wireless Communication - Onboard Antenna |
|
WiFi |
Support 2.4GHz, 802.11a/b/g/n |
Bluetooth |
Support Bluetooth 5.0 and BLE |
Other |
Zigbee、LoRa、nRF2401、Matter、Thread and Wi-Fi 6 (Optional) |
Interface/Function |
|
Interface |
USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone, etc. |
Function |
RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc. |
Button/LED Indicator |
|
Reset Button |
Yes, press to reset the device |
Boot Button |
Yes, press and hold the power button to burn the program |
PWR |
Power indicator |
CHG |
Lithium battery charging status, completion indication |
Other |
|
Installation method |
Back hanging, fixed hole (M3 thread) |
Operating temperature |
-20~70 °C |
Storage temperature |
-30~80 °C |
Power Input |
5V/2A, USB or UART terminal |
Active Area |
156mm*87mm |
Dimensions |
181.26*108.36*16mm |
Pin |
Pin Direction |
Note |
U1RXD |
Input |
Serial port 0 receiving pin |
U1TXD |
Output |
Serial port 0 receiving pin |
GPIO12 |
Input/Output |
GPIO |
GPIO13 |
Input/Output |
GPIO |
GPIO14 |
Input/Output |
GPIO |
3V3 |
|
Power supply |
GND |
|
Ground wire, connected to the power reference ground |
GPIO1 |
Input/Output |
GPIO |
GPIO0 |
Input/Output |
GPIO |
GPIO2 |
Input/Output |
GPIO |
GPIO22 |
Input/Output |
GPIO |
GPIO10 |
Input/Output |
GPIO |
GPIO11 |
Input/Output |
GPIO |
BOOT |
Press and then tap the RST key to enter the burning mode |
|
RST |
Press it to re-run the program and also to burn the program. |
Chip performance
Chip Model |
ESP32-H2FH4 |
|
FLASH |
4MB Quad SPI |
|
SRAM |
320KB |
|
ROM |
128KB |
|
LP memory |
4KB |
|
Ambient temperature |
-40℃~105℃ |
|
Voltage |
3.3V |
|
Bluetooth Low Energy Radio Specifications |
||
Working channel center frequency range |
2402~2480MHz |
|
RF transmission power range |
-24.0~20.0dBm |
Patch Antenna Performance
Gain and efficiency |
Bandwidth 2.4G~2.5GHz |
Peak Gain |
4.33dBi |
Average Gain across the band |
4.0dBi |
Gain Range across the band |
3.59dBi~4.33dBi |
Peak Efficiency |
62.5% |
Average Efficiency across the band |
57.5% |
Efficiency Range across the band |
51.3%~62.5% |
Pin |
Pin Direction |
Note |
U1RXD |
Input |
Serial port 0 receiving pin |
U1TXD |
Output |
Serial port 0 receiving pin |
GPIO0 |
Input/Output |
GPIO |
GPIO1 |
Input/Output |
GPIO |
GPIO2 |
Input/Output |
GPIO |
3V3 |
|
Power supply |
GND |
|
Ground wire, connected to the power reference ground |
GPIO23 |
Input/Output |
GPIO |
GPIO22 |
Input/Output |
GPIO |
GPIO21 |
Input/Output |
GPIO |
GPIO20 |
Input/Output |
GPIO |
GPIO19 |
Input/Output |
GPIO |
GPIO18 |
Input/Output |
GPIO |
BOOT |
Press and then tap the RST key to enter the burning mode |
|
RST |
Press it to re-run the program and also to burn the program. |
Chip performance
Chip Model |
ESP32-C6FH4 |
|
L1 cache |
32KB |
|
ROM |
320KB |
|
HP SRAM |
512KB |
|
LP SRAM |
16KB |
|
FLASH |
4MB Quad SPI |
|
Ambient temperature |
-40℃~105℃ |
|
Voltage |
3.3V |
|
Bluetooth Low Energy Radio Specifications |
||
Working channel center frequency range |
2402~2480MHz |
|
RF transmission power range |
-15.0~20.0dBm |
|
WIFI RF Specifications |
||
Working channel center frequency range |
2412~2484MHz |
|
Wireless Standards |
IEEE 802.11b/g/n/ax |
Patch Antenna Performance
Gain and efficiency |
Bandwidth 2.4G~2.5GHz |
Peak Gain |
3.74dBi |
Average Gain across the band |
3.66dBi |
Gain Range across the band |
3.45dBi~3.74dBi |
Peak Efficiency |
58.9% |
Average Efficiency across the band |
55.9% |
Efficiency Range across the band |
53.0%~58.9% |
Pin |
Pin Direction |
Note |
CE |
Input |
Module control pin |
SCK |
Output |
SPI Data Pin |
MISO |
Input |
SPI Data Pin |
MOSI |
Output |
SPI Data Pin |
3V3 |
|
Power Supply |
GND |
|
Ground wire, connected to the power reference ground |
CSN |
Input |
Module chip select pin, used to start an SPI communication |
IRQ |
Input |
Module interrupt signal output, low level is effective |
Chip performance
Patch Antenna Performance
Gain and efficiency |
Bandwidth 2.4G~2.5GHz |
Peak Gain |
3.74dBi |
Average Gain across the band |
3.66dBi |
Gain Range across the band |
3.45dBi~3.74dBi |
Peak Efficiency |
58.9% |
Average Efficiency across the band |
55.9% |
Efficiency Range across the band |
53.0%~58.9% |
Interface Definition
Interface |
Description |
Connector Type |
SPK |
Output audio signal and connect to speakers. The mainboard has a power amplifier chip circuit. |
PH2.0-2P |
PWR |
Power LED |
|
RST |
Reset button. Press it to reset the system. |
|
BOOT |
|
|
UART0-OUT |
Build communication between Logic modules, including serial communication module and printing module. |
HY2.0-4P |
UART1-OUT |
Build communication between Logic modules, including serial communication module and printing module. |
HY2.0-4P |
UART0-IN |
|
XH2.54-4P |
I2C-OUT |
Establish communication between the microcontroller and peripheral devices. |
HY2.0-4P |
BAT |
Connect lithium battery. (With battery charging circuit) |
PH2.0-2P |
For more pin functions, see the Wiki.
