Description

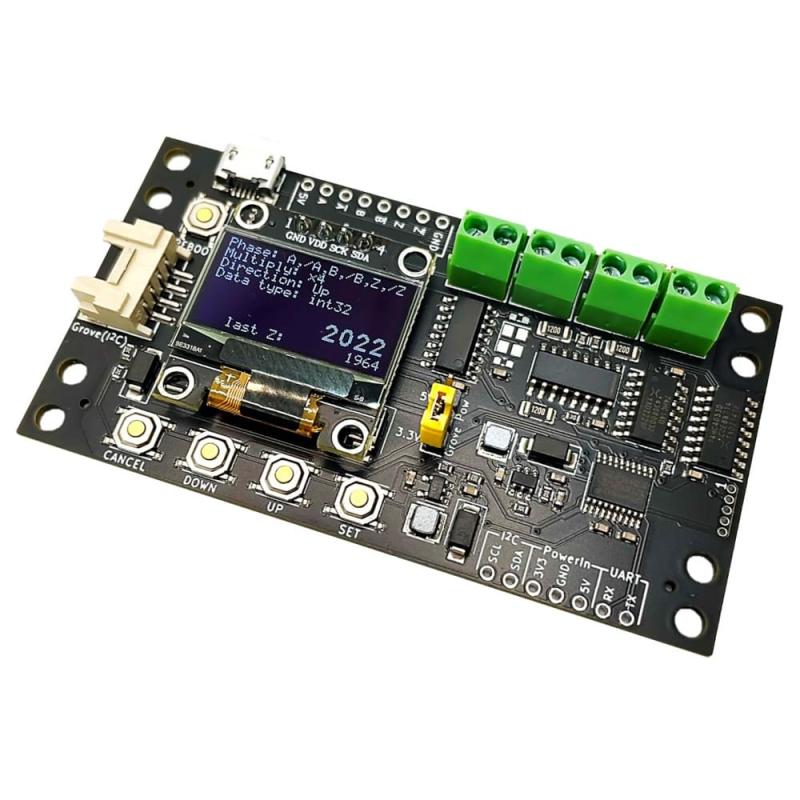

This module displays and outputs the count of incremental output encoder pulses.
2-phase (A, B) and 3-phase (A, B, Z) encoders are supported. Also, open collector output, voltage output, and line driver output encoders are supported. USB and Grove(I²C) are supported as communication interface.
USB bus power, Grove (3.3V or 5V), and external input (5V or 3.3V) are supported as power supply.
Both DIN rail mounting and screw mounting are supported.

Feature

Supports 2-phase (A, B) and 3-phase (A, B, Z) encoders
Supports encoders with open collector output, voltage output, and line driver output
Count values can be obtained via USB or Grove (I²C)
Compatible with both DIN rail mounting and screw mounting (* Adapter for mounting must be prepared separately)

Part Names

Included Items

Board × 1

* Encoders, various cables, and mounting adapters are not included.

Communication Specifications

I²C：Register Map

Serial communication (USB, UART)

Output format

When Z-phase is enabled: ＜Count Value＞:＜Count value at last detection of Z phase＞:＜After Z-phase detection: 1, Before Z-phase detection: 0＞\n (ex.: 12345:7890:1\n)
When Z-phase is disabled: ＜Count Value＞\n (ex.: 12345\n)

Command

c: Get count value. Sends a string in the above output format, disabled if USB Tx Mode is enabled.
r: Reset count. Set the count value to the initial value and Z-phase to the undetected state.

Specification

Supported encoders

Phase: 2-pahse (A, B) , 3-phase (A, B, Z)
Output signal type: 5V line driver output(AM26C31 equivalent), 5V voltage output, Open collector output
Power supply voltage: 5V (* when power is supplied from this product)
Maximum current consumption of encoder: Less than 250 mA (* when power is supplied from this product)

Counter

Number of input channels: 1
Maximum input frequency: 5 MHz (* depends on output method and wiring environment)
Counter update period: 1 ms
Count range: 32 bit (signed/unsigned selectable)
