In the world of electronics and telecommunications, reliable and efficient signal transmission is paramount. Whether it's for wireless communication systems, antennas, or radio frequency applications, a rugged and dependable connector is critical. The SMA connector - a small but mighty component - plays an important role in ensuring seamless signal transmission. In this blog post, we will delve into the world of SMA connectors, exploring their features, applications, and why they are an essential part of modern technology.


What are SMA connectors?

SMA connectors, derived from "Sub-Miniature Version A", are widely used in RF (radio frequency) and microwave applications. Originating in the 1960s, these connectors were designed as a compact interface for coaxial cable with a screw-type coupling mechanism. With a characteristic impedance of 50 Ω, SMA connectors have become an industry standard. SMA connectors feature a threaded coupling mechanism that provides a secure connection, minimizes signal loss, and maintains excellent electrical performance. Known for their compact size, durability, and superior impedance-matching capabilities, SMA connectors are an ideal choice for a wide range of applications.

SMA Connectors


SMA Connector Features and Benefits

Compact Size:

One of the primary advantages of SMA connectors is their compact size. They are significantly smaller than other coaxial connectors, making them ideal for applications where space is limited. The compact design allows for high-density installations and minimizes the overall footprint of the equipment.


Broad Frequency Range:

SMA connectors are designed to operate over a broad frequency range, typically up to 18 GHz or higher. This wide bandwidth capability makes them suitable for a wide range of applications, including high-frequency RF systems, microwave devices, and wireless communications.


Excellent Electrical Performance:

SMA connectors are known for their excellent electrical performance. They offer low insertion loss, low reflection coefficient (VSWR), and high return loss. These characteristics ensure efficient signal transmission with minimal power loss and signal degradation. SMA connectors also provide high impedance matching, contributing to improved overall system performance.


Robust and Durable:

SMA connectors are built to withstand harsh environmental conditions and repeated mating cycles. They feature a threaded coupling mechanism that ensures a secure and reliable connection, even in high-vibration environments. The connectors are constructed using high-quality materials, such as stainless steel or brass, which provide durability and resistance to corrosion.


Versatile Applications:

SMA connectors find applications in various industries and fields. They are widely used in wireless communication systems, including Wi-Fi routers, cellular base stations, and satellite communication systems. SMA connectors also play a crucial role in test and measurement equipment, where they enable accurate signal measurement and analysis.


Interchangeability :

Another benefit of SMA connectors is their interchangeability. They adhere to a standardized interface, allowing for easy interchangeability with other SMA connectors from different manufacturers. This feature ensures compatibility and simplifies the process of equipment integration and maintenance.


Available in Various Configurations:

SMA connectors are available in multiple configurations to suit different application requirements. These include straight connectors, right-angle connectors, bulkhead connectors, PCB-mount connectors, and adapters. The availability of various configurations enhances flexibility in design and installation, accommodating diverse system architectures.


SMA Connector Types


- SMA Male / Plug Connectors: The SMA Male connector features a center pin enclosed by a threaded barrel. It's also referred to as an SMA Plug connector and measures 0.312 inches (7.9 mm) in diameter. This type of connector includes a hex nut that can be adjusted with a torque wrench to tighten or loosen a connection.

- SMA Female / Jack Connectors: When it comes to SMA connectors, the Female SMA connectors, also known as SMA Jack, are a popular option. This type of connector features a center sleeve surrounded by a barrel with threads on the outside. The outer thread length of an SMA Female connector is 4.32 mm, with the diameter of the thread area being 6.34 mm.

- Right-Angle SMA Connector: Designed with a 90-degree bend, allowing for connection in tight spaces or when a right-angle orientation is required.

- SMA Bulkhead Connector: Equipped with a mounting flange, enabling secure installation on panels or enclosures.

-Reverse Polarity SMA Connectors: RP-SMA connectors, also known as Reverse Polarity SMA connectors, have a different interface gender compared to regular SMA connectors. For instance, an RF-SMA female connector looks similar to a standard female SMA connector with threads on the outside, but the center receptacle is replaced by a male pin. On the other hand, RP-SMA male connectors have threads on the inside, but the center male pin is replaced with a receptacle.

 SMA Connectors


Other SMA Connector Features


SMA Connector Geometry

SMA connectors are available in straight and right-angle geometries, chosen based on circuit configuration. See the image below.

 SMA Connector Geometry


SMA Connector Mounting Options

There are various mounting configurations available for SMA Connectors, including Panel Mount (2-Hole and 4-Hole Flange), PCB Mount, Edge Mount, Bulkhead Mount, SMT, and Through Hole Mount.

 SMA Connector Mounting Options



SMA Connector Dielectric

SMA Connectors use a dielectric material as an insulator between the inner and outer conductors. While air would be the best insulator, a material is needed to keep the center pin in place. Polyetrafluoroethylene (PTFE) is the most commonly used dielectric material for SMA Connectors.

The type of dielectric used affects the impedance of the SMA Connector. Repeated connections can wear down the connector, causing the impedance to fluctuate and increase reflections and losses in the system. For this reason, manufacturers usually specify the number of mating cycles.

SMA Connectors typically have Brass or Stainless Steel bodies with Nickel or Gold finishes. The center contact/pin is usually made of Brass or Copper and has a gold finish.


Best Practices for SMA Connector Usage:

To ensure optimal performance and longevity of SMA connectors, it is essential to follow some best practices:

- Carefully align and thread the connectors to avoid cross-threading or damaging the threads.

- Avoid excessive torque when tightening the connector to prevent damage.

- Keep the connectors clean and free from debris or contaminants that can impair signal transmission.

- Use quality cables and connectors from reputable manufacturers to ensure reliability and performance.


Elecrow Offers Open-Source Products For Your Signal Transmission Project Needs

In the realm of signal transmission projects, SMA connectors play a vital role. However, there are various other technologies available, such as GPS, GSM, WiFi, LoRa, and more, that cater to the needs of makers seeking efficient signal transmission solutions.

As an esteemed open-source hardware provider, Elecrow has curated a diverse range of products that effectively meet customers' requirements. Makers and DIY electronics enthusiasts are encouraged to explore Elecrow's comprehensive design paradigm, which serves as an invaluable resource for project prototyping reference.



Elecrow GSM Products

Elecrow offers a wide range of GSM products designed to revolutionize your connectivity experience. From GSM modules and antennas to innovative GSM development boards, our high-quality solutions empower you to establish reliable and efficient communication networks. The SIM800C GPRS GSM Shield-V1.1 and the Leonardo GPRS GSM IOT Board-V1.2 below are GSM Boards designed with SMA connector ports that can help you promote your signal transmission projects.


 SIM800C GPRS GSM Shield-V1.1

Leonardo GPRS GSM IOT Board-V1.2



Elecrow Lora Modules to Enhance Your Work

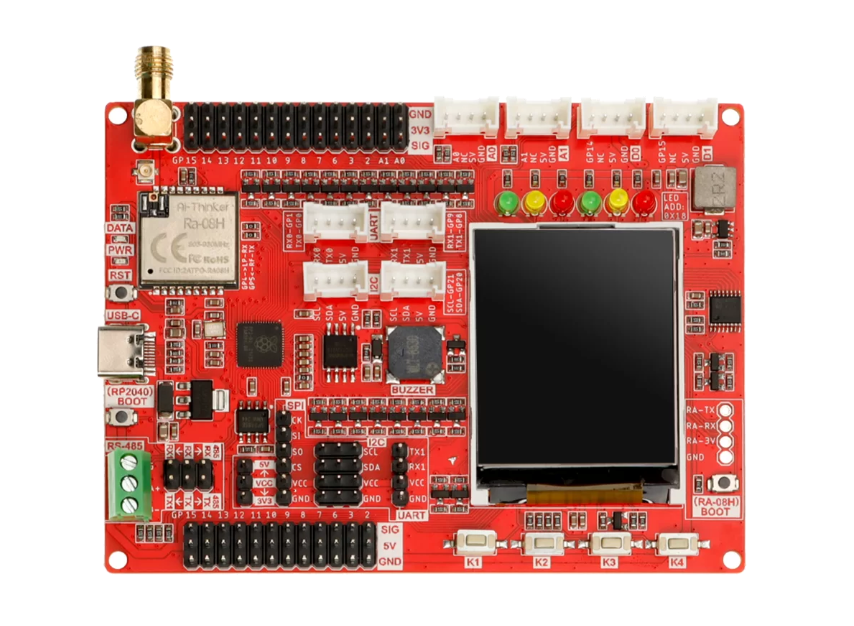

Elecrow brings you a comprehensive range of LoRa products, revolutionizing the way you connect and communicate over long distances. Our high-quality LoRa modules, gateways, and development boards empower you to build robust, low-power, and long-range wireless networks. We provide a lot of Lora-technology embedded products with SMA connector ports that can enhance your projects, the LoRaWAN RA-08H Development Board Integrated RP2040 with 1.8 “ LCD for Long Range Communication (868Mhz/915Mhz), and LoRaWan Gateway Module Based on ESP32 with 1.8” LCD - 1 Channel for Long Range Communication (868Mhz/915Mhz) are 2 products standing out among the series.

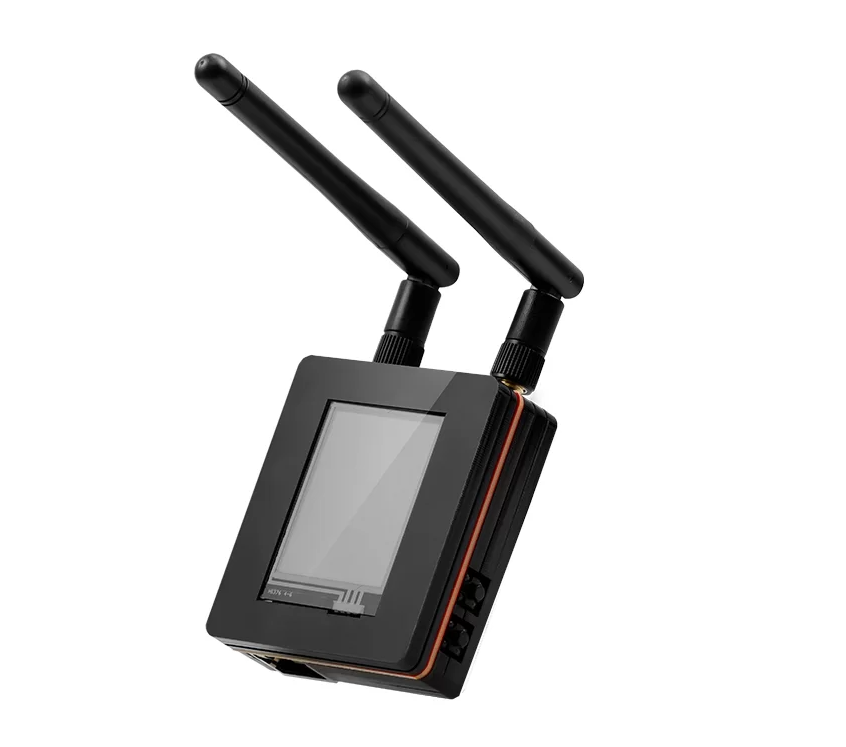

LoRaWan Gateway Module Based on ESP32 with 1.8” LCD - 1 Channel for Long Range Communication (868Mhz 915Mhz)
