HDMI 3.5 inch 480 x 320 Resolution Touch Screen Monitor for Raspberry Pi

SKU
AJP70043E
In stock
$35.00
Weight
220
-
+
With this product, you earn 35 loyalty points.

Feature:

3.5 ”display, resolution 480 * 320, frame rate 60FPS or more.

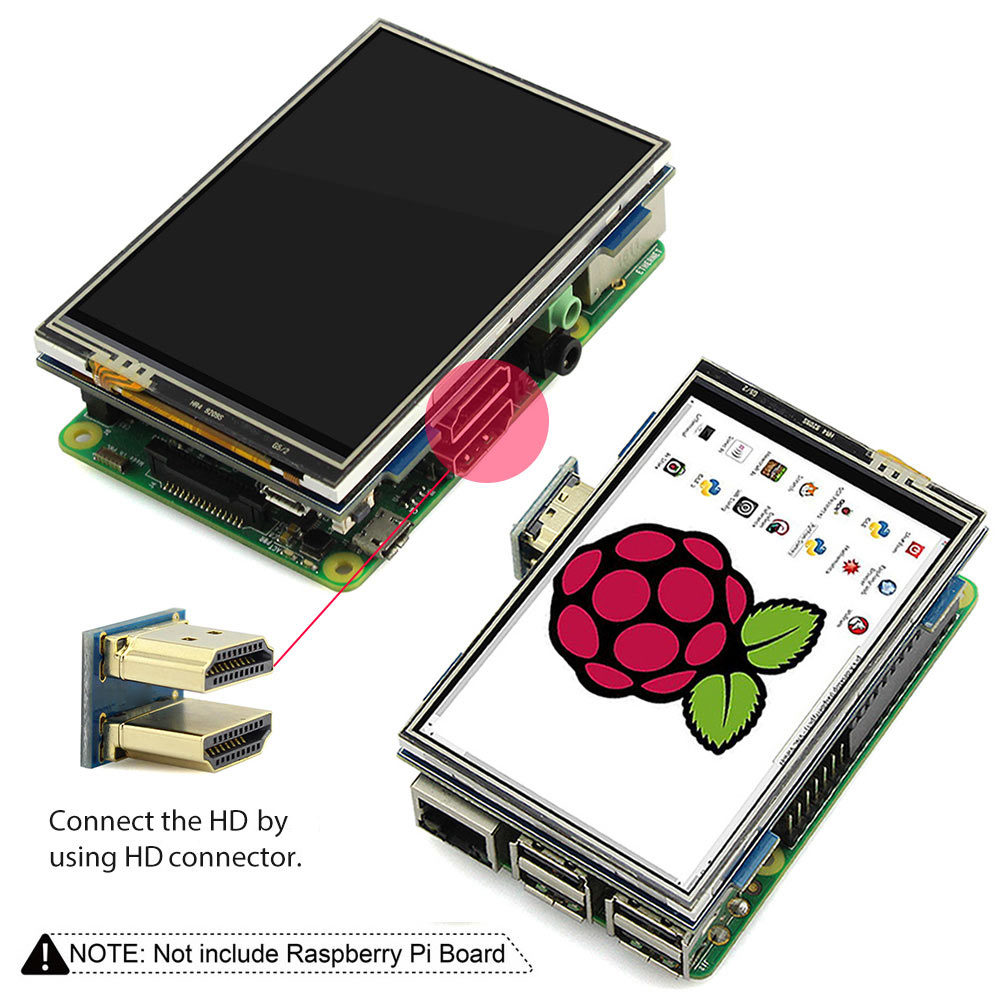

It has an HDMI interface, so it is not only for Raspberry Pi, but also for other devices.
Since the monitor is designed for Raspberry Pi, the touch panel function is dedicated to Raspberry Pi and supports Raspbian, Ubuntu, and Kali Linux.
The screen size is 77x52mm. Since the panel itself is small, the resolution increases to 1920x1080, but the characters are small and difficult to read. Set the output resolution appropriately.



Specification:

Size: 3.5 inches
Resolution: 480 * 320

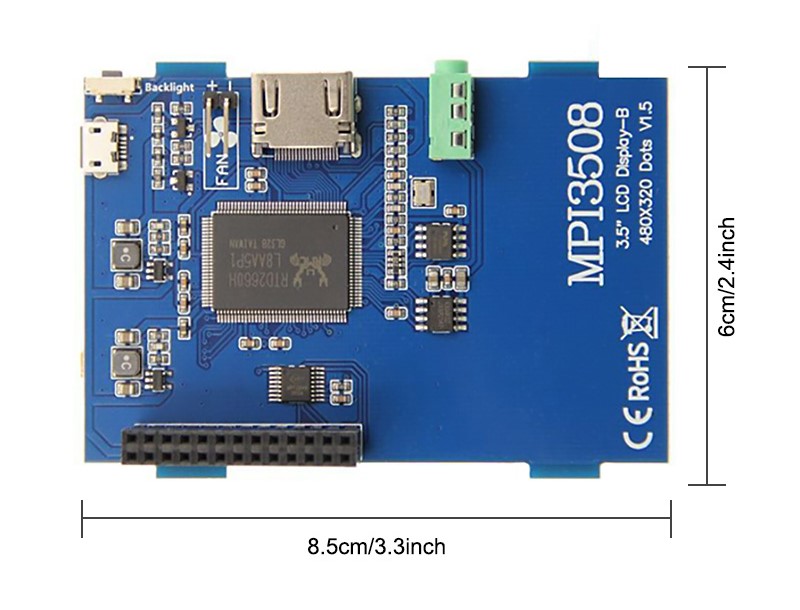

Dimension: 85 * 60mm
Weight: 480g
When using Raspbian / Ubuntu



Package List:

Monitor body x1

Touch pen x1

HDMI connector x1

DVDx1.



Wiki & External links

Raspberry Pi Monitor Comparison:

Size Product Name Resolution Display Tec Display Port Touch Panel Type

Screen Dimension

(mm)

VESA Audio Output Camera Microphone Multi-language Menu Backlight Buttom Stand Device Support
3.5inch 3.5inch 480x320 MCU SPI Serial TFT LCD Module Display 480x320 TFT SPI × 48.96x73.44 × × × × × × × Raspberry Pi
HDMI 3.5 inch 480 x 320 Resolution Touch Screen Monitor for Raspberry Pi 480x320 TFT

HDMI

&USB

Resistive 85.51x60.6 × Earphone × × × × Raspberry Pi, PC etc.
Elecrow RR035 3.5 Inch 480x320 TFT Display with Touch Screen for Raspberry Pi 480x320 TFT SPI Resistive 85x55 × × × × × × × Raspberry Pi
4inch RR040I 4 inch HD 800x480 Resolution IPS TFT Touch Screen Display for Raspberry Pi 800x480 TFT HDMI Resistive 98.60x58.05 × × × × × × × Raspberry Pi, PC etc.
RC040 4 Inch HD 480x320 TFT Display with Touch Screen for Rapberry Pi 480x320 TFT SPI Resistive 100x60 × × × × × × × Raspberry Pi
5inch RC050S HDMI 5 Inch 800x480 Capacitive Touch Monitor Built-in Speaker with Backlight Control 800x480 IPS

HDMI

&USB

Capacitive 119.38x76.2 × Speaker × × × Raspberry Pi, PC etc.
Elecrow HDMI 5 Inch 800x480 TFT Display with Backlight Control 800x480 TFT

HDMI

&USB

Resistive 121mmx78 × × × × × × Raspberry Pi, PC etc.
Elecrow RC050 5 inch HDMI 800 x 480 Capacitive Touch LCD Display for Raspberry Pi/ PC/ SONY PS4 800x480 IPS

HDMI

&USB

Capacitive 121.11x95.24 × Earphone × × × × Raspberry Pi, PC etc.
Elecrow RR050 HDMI 5 Inch 800x480 Resistive Touch Screen TFT Display for Raspberry Pi B+/2B/3B/4B 800x480 TFT

HDMI

&USB

Resistive 121mmx78 × × × × × × × Raspberry Pi, PC etc.
7inch RC070S 7 inch 1024*600 IPS HDMI Capacitive Touch Monitor 1024x600 IPS

HDMI

&USB

Capacitive 165x120 × Earphone & Speaker × × × × Raspberry Pi, PC etc.
RC070P 7 Inch 1024x600 Raspberry Pi Monitor Touchscreen Capacitive IPS Display with Built-in Speaker & Stand 1024x600 IPS

HDMI

&USB

Capacitive 177.8x127 × Earphone & Speaker × × × Raspberry Pi, PC etc.
Elecrow RC070C 7inch Touch Screen Display 1024x600 Resolution with 2MP Camera for Raspberry Pi 2/3B/3B+/4B 1024x600 IPS

HDMI

&USB

Capacitive 165x133 × × × × × Raspberry Pi, PC etc.
RC070M 7 inch 1024 X 600 Touch Screen Display with 720P Camera for Raspberry Pi/ MacBook Pro./ Windows 10 1024x600 IPS

HDMI

&USB

Capacitive 177.06x133.09 × × × × × × Raspberry Pi, PC etc.
Elecrow RC070 7 inch 1024*600 HDMI LCD Display with Touch Screen 1024x601 TFT

HDMI

&USB

Capacitive 164.7x107.1 × × × × × × Raspberry Pi, PC etc.
7 Inch TFT Display for Raspberry Pi B+ Banana Pi BB BLACK 800x480 TFT

HDMI

&USB

Capacitive 165x107 × × × × × × Raspberry Pi, PC etc.
RR070 7 Inch 1024x600 HDMI/VGA/AV Display for Raspberry Pi B/B+/2B/3B/4B 1024x600 TFT

HDMI

&VGA

&AV

× 188x129 × × × × × Raspberry Pi, PC etc.
7 Inch 800x480 TFT Display for Raspberry Pi B+ Pcduino Banana Pi 800x480 TFT

HDMI

&USB

Capacitive 164.7x107.1 × × × × × × × Raspberry Pi, PC etc.

8inch

SH080 8 Inch Mini HDMI Portable LCD Display 1280x800 Resolution Monitor Built in Speakers 1024x600 IPS

HDMI

&USB

× 176.64x110.4 × Earphone & Speaker × × × × × Raspberry Pi, PC etc.
