Cristian Pitigoi

Published: Aug 03,2024

Simple temperature Regulator

Simple electronic circuit.

Attribution-ShareAlike (CC BY-SA)

Tools, APP Software Used etc.

Kicad

Story

Simple temperature regulator

Circuit description

The temperature controller uses as a temperature transducer a thermistor connected diagonally to a Wheatstone bridge. Transistors Q1 and Q2 form a flip-flop amplifier with a hysteresis loop in the 'YES / NO' system. This hysteresis is ensured by the value of resistor R5. If you want to increase the hysteresis effect to about 3% of the default value, using the RV1 potentiometer, then the value of R5 will increase to 100Ω. The temperature control range is +30 ... 95 * C. The thermistor should have an 10KOhm resistance at 25°Celsius .

Bill of materials available in the download section, and the schematic as well.

Have fun with it!

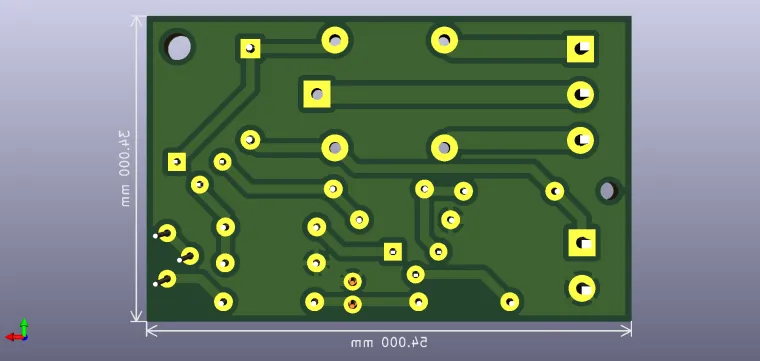

Schematic and Layout
