LoRa Node Expansion Board-nRFLR1110 Integrates nRF52840 for Long Range Communication Support GNSS Position

Description

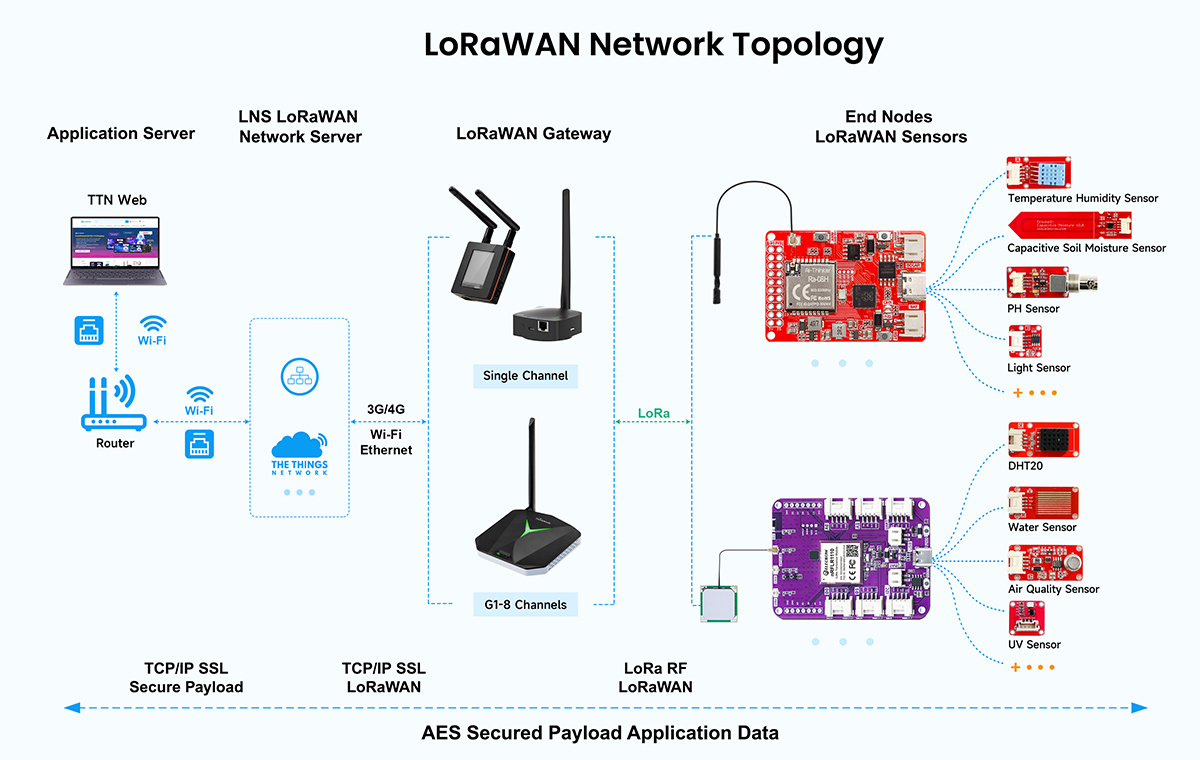

This is a powerful LoRa IoT core module based on the nRFLR1110 main controller. It integrates complete LoRa RF transceiver functionality and supports point-to-point transparent transmission and the standard LoRaWAN network protocol, providing a reliable core communication solution for long-distance, low-power IoT connections. The module offers 868MHz and 915MHz firmware for different regions.

The module design fully considers ease of outdoor deployment and rapid development. It features a built-in lithium battery charge/discharge management circuit and a reserved solar panel interface, supporting green energy self-sufficiency and suitable for long-term field monitoring. Simultaneously, it integrates six interfaces: two digital, two analog, one I2C, and one UART, allowing for plug-and-play connection to various Crowdtail sensors such as temperature, humidity, and air quality sensors, quickly building data acquisition nodes. It has a built-in high-precision GNSS positioning module and supports both GPS and BeiDou dual satellite systems, enabling fast and accurate outdoor positioning. Furthermore, it features onboard customizable function buttons and pin headers, providing users with high development flexibility in projects such as weather monitoring, smart homes, and industrial sensing.

Design&manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.

Supports connecting with Crowtail Sensors

Hardware Overview

Feature

• Dual-mode LoRa communication: Based on the nRFLR1110, it simultaneously supports LoRa point-to-point transparent transmission and LoRaWAN network access, and operates at 868/915 MHz.
• Green energy: Built-in lithium battery charge/discharge management circuitry and a dedicated solar charging interface ensure long-term stable operation of outdoor nodes.
• Rich expansion interfaces: Provides 2 digital (Dx2), 2 analog (Ax2), 1 I2C, and 1 UART interfaces, allowing direct connection to a large number of Crowtail sensor modules for rapid application node construction.
• Geographic positioning function: Built-in GNSS (GPS/Beidou), Wi-Fi, and Bluetooth functions for precise positioning;
• Convenient development and design: Onboard, reserved user-defined function buttons and included pin headers facilitate flexible soldering and secondary development to meet project requirements.

Application scenarios

• Smart cities,
• smart agriculture,
• Industrial automation,
• Environmental monitoring,
• Smart homes,
• Logistics management,
• Healthcare

Specification

Package List

• 1xLoRa Node Board (nRFLR1110)
• 1x LoRa Antenna
• 1x GNSS Antenna
• 1x WiFi/2.4G Antenna
• 2x 7pin header

Wiki & External links

• Wiki
