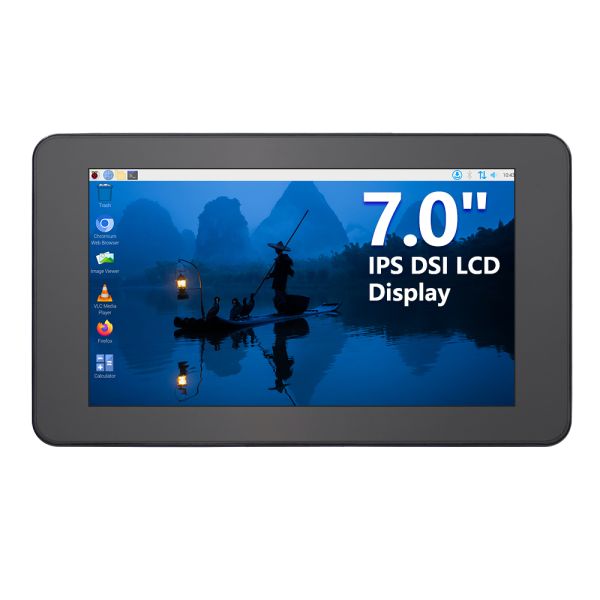

7inch IPS DSI Touch Screen-A 800*480 Monitor Compatible with Raspberry Pi/BB Black, etc

7inch DSI Raspberry Pi Display

This 7-inch IPS full-view display delivers true-to-life colors and excellent dynamic image quality with its 800×480 high-definition resolution, while also being energy-efficient and environmentally friendly. The screen uses capacitive touch technology, supports 5-point touch, and requires no driver installation, offering convenient plug-and-play operation. Specifically designed for Raspberry Pi, it can be directly plugged into Raspberry Pi 4B/5 models without a separate power supply, and fully supports operating systems such as Raspbian, Ubuntu, and Kali, providing developers with comprehensive hardware and software support.

Support 5-point capacitive touch

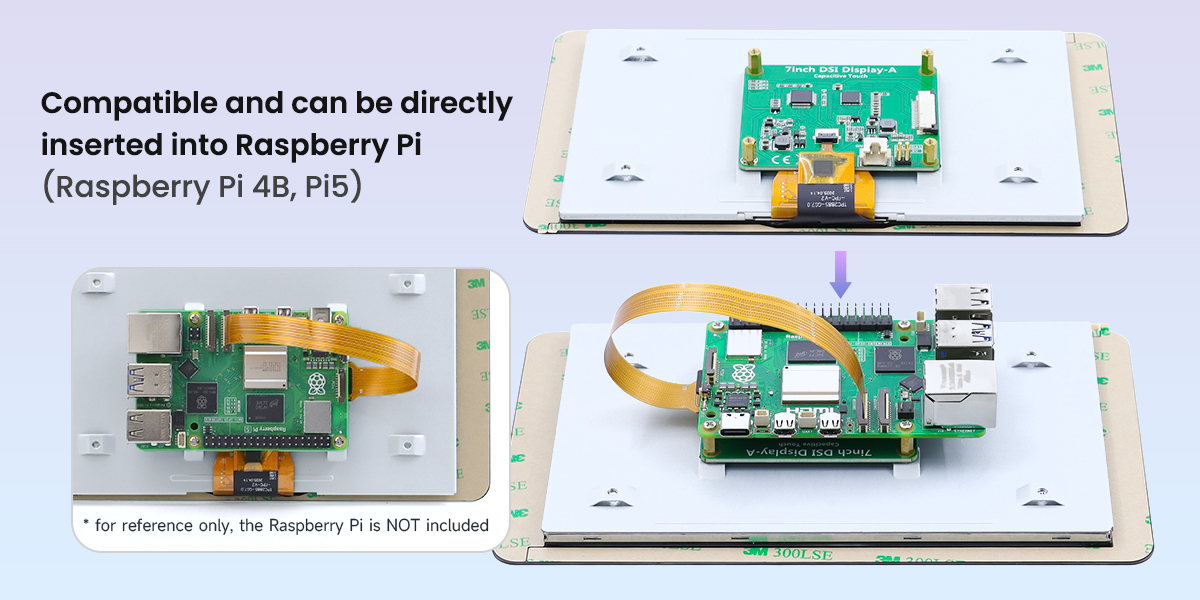

Compatible and can be directly inserted into the Raspberry Pi

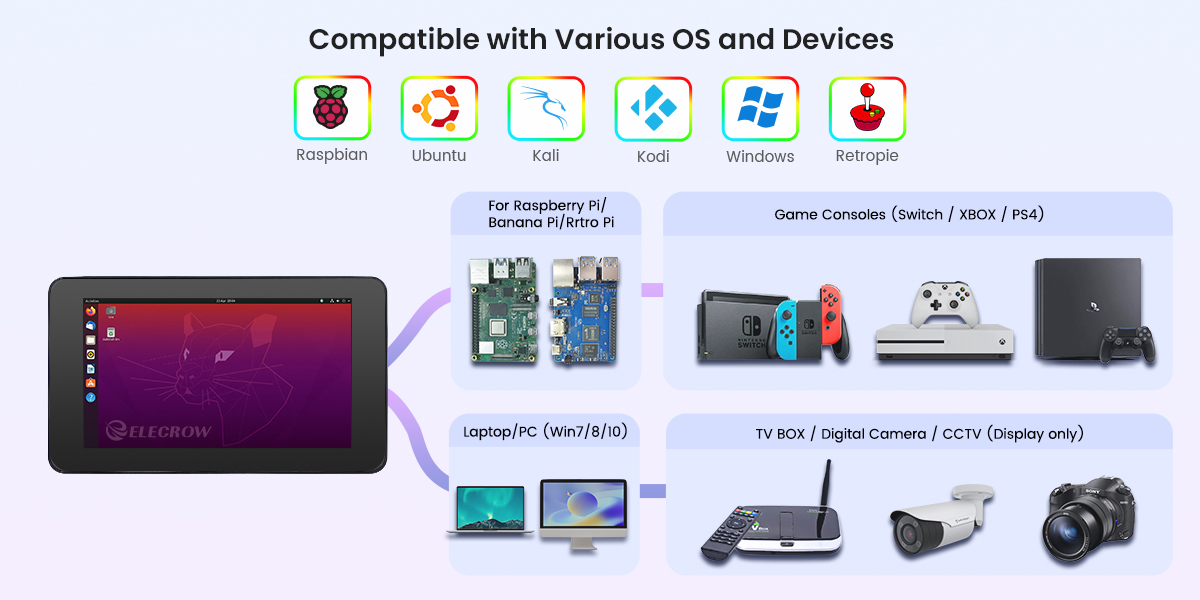

Compatible with Various OS and Devices

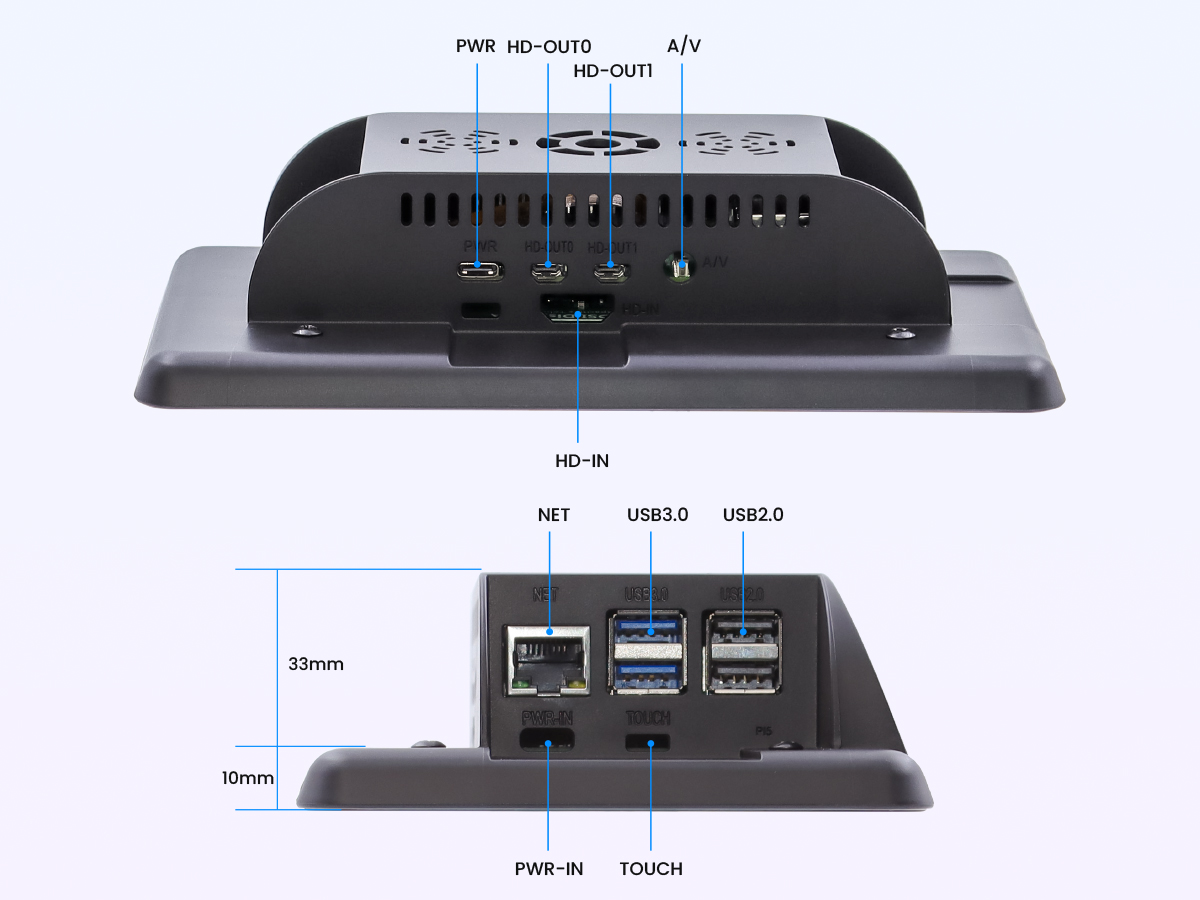

Hardware Overview

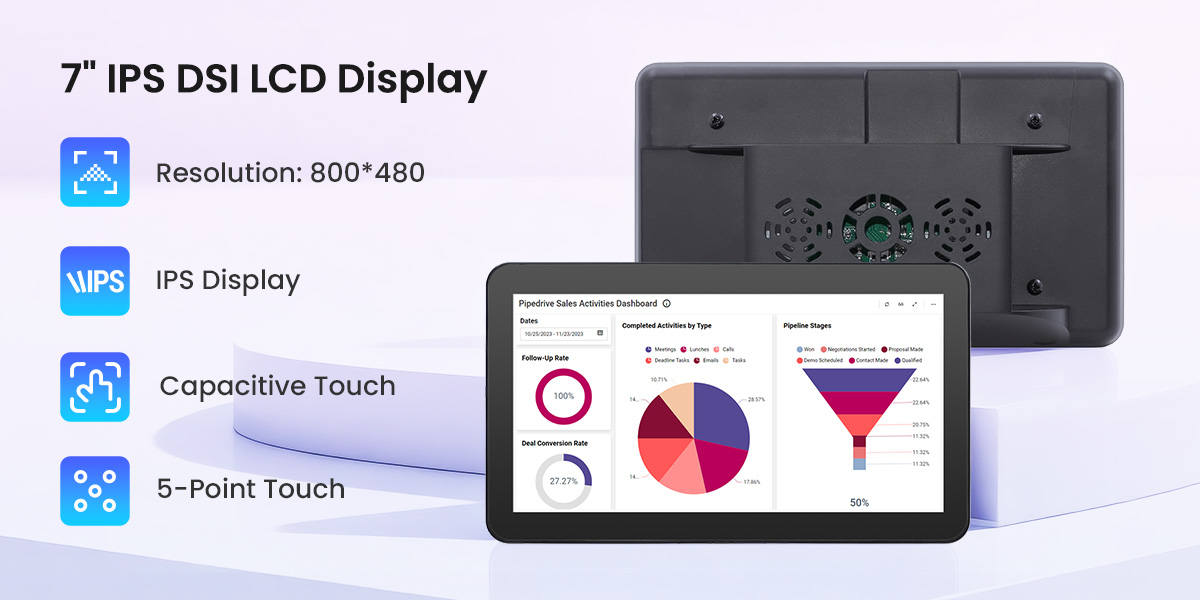

Feature

• High-definition IPS display: 7-inch IPS screen with a 1024×600 physical resolution, supporting 1080P signal input, providing a wide viewing angle and delicate image quality.
• Sensitive touch: 5-point capacitive touch, USB driverless operation, smooth operation.
• Professional functions: Equipped with an OSD menu to adjust brightness, contrast, etc., and supports USB software dimming to meet professional needs.
• Wide compatibility: Compatible with mainstream mini PCs such as Raspberry Pi (3/4/5), BB Black, and Banana Pi; supports Raspbian, Ubuntu, WIN10 IoT, and other systems; supports Windows 7/8/8.1/10/11 systems and game consoles such as PS4 and Xbox.
• Integrated design: Unique recessed interface design, optimized for back-mount installation of development boards such as Raspberry Pi, compact structure, saving space.
• Professional certification: CE and RoHS certified, safe and reliable.

 Specification

Package List

• 1x 7inch Touch Screen
• 1x 2 Pin Dupont Line
• 1x Ribbon Cable (5cm - For RPI 4B)
• 1x Ribbon Cable (10cm - For RPI 4B)
• 1x Ribbon Cable (20cm - For RPI 4B)
• 1x Ribbon Cable (16cm - For RPI 5)
• 4X RPI Screws Pack (M2.5)
• 1x Mini Screwdriver
• 4x Copper Pillars(M2)

Wiki & External links

• User Manual
