Simple Basic Weather Station

This a version of a well known and desired project by any maker.

Simple Basic Weather Station

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • Arduino Nano R3

    X 1

  • DHT11 Temperature & Humidity Sensor

    X 1 fenxiang

  • DS3231

    X 1 fenxiang

  • I2C LCD

    X 1 fenxiang

Tools, APP Software Used etc.

  • Kicad

    fenxiang
  • Arduino IDE

    Arduino IDE

    Arduino
    fenxiang

Story

Simple Basic Weather Station



Probably a common project and maybe already done for you, this project represent an adjustable digital clock, but also we can see the temperature and humidity of the room every minute. The clock can be adjusted using 3 push buttons: press P1 to enter in menu, P2 -> '+' and P3 -> '-' , for hours and minutes. I placed the modules in a such way because I will use jump wires, so the location of the modules on the pcb doesn't matter for me. I found the original project on internet, with rtc module and the lcd, I just added the dht11 sensor to it and made some modifications to the program.

Pay attention to the polarities.

You know what to do if you like this project. :)

Also, leave a message if you are interested in the program.

Code

  • example code

    Weather_Station_2_1559735797670967bf49139.zip
    Download(2)

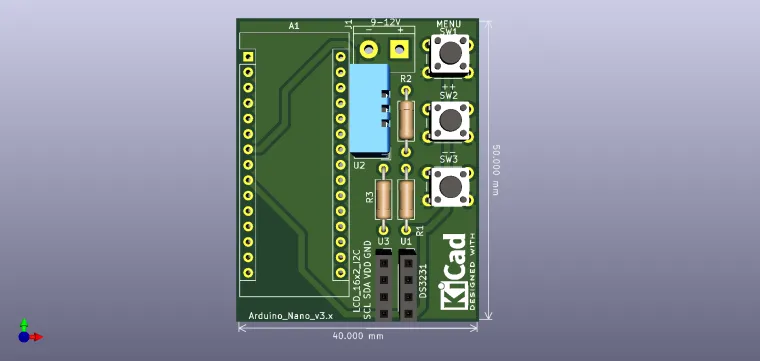

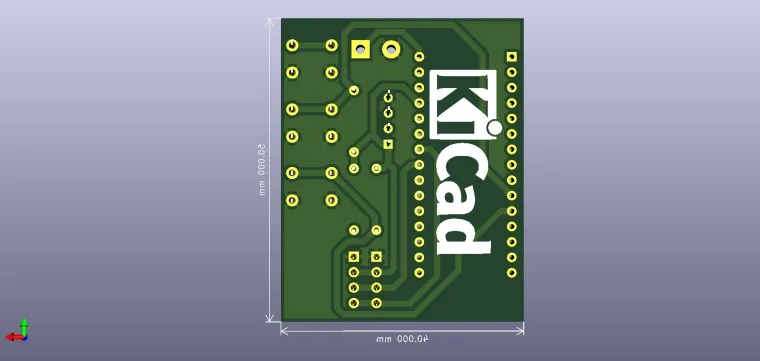

Schematic and Layout
Topic
View All
#arduino nano #ds3231 #dht11 #i2c lcd
License: Attribution-ShareAlike (CC BY-SA)
