2-Channel Velocity Measurement Kit

Details

This Kit helps you monitoring the velocity speed of motors, it uses the sensor HC-020 to sense the rotation of circular grid board, and thus output square waves. So users can calculate the rotation velocity or speed via these outputs frequency. There are 20 grids on the circular grid board, so each rising/falling edge standing an angle: 360/20= 18 degrees. Please uncover the yellow protect paper before your using.

Specification

Working Voltage: 4.5~5.5 VDC
Emitter Voltage Drop: 1.5V
Output Voltage: TTL
Max Output Frequency: 100Khz
Circular Grid Board Diameter: 24mm
Circular Grid Board Inner Diameter: 4mm

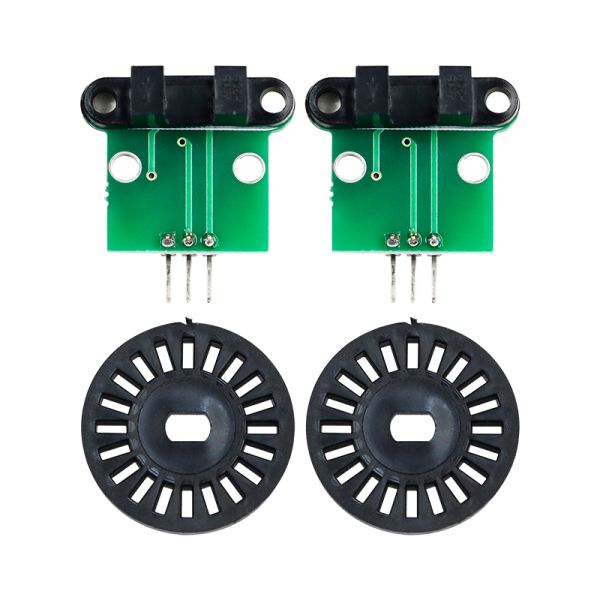

Partlist

HC-020 Sensor Board x2
Circular Grid Board x2
6 Pin Female to Female Wire x1
