4inch Square ESP32 Dev board, 480*480 Capacitive LCD Touch Screen, Serial Port Screen Support LVGL

Rating:
100 % of 100
$38.50
Availability: In stock
SKU
DIS19204D
Brand
elecrow
Weight
100g

【Powerful Core Performance】The ESP32-S3-WROOM-1-N16R8 chip features a dual-core 32-bit LX6 microprocessor with a high frequency of up to 240MHz, delivering powerful performance.

【Responsive Touch Experience】The 4-inch LCD display features capacitive touch technology, ensuring smooth and responsive operation.

【Rich Development Support】Supports development environments such as Arduino, Mixly, Scratch, and is compatible with the LVGL graphics library, allows the use of SquareLine_Studio to design personalized UI interfaces.

【Wide Range of Application Scenarios】Suitable for various scenarios including DIY projects, embedded systems, medical devices, industrial control, IoT devices, and smart homes.

Description



This 4.0-inch square screen is a powerful ESP32 LCD touch screen with a resolution of 480*480. It is powered by the ESP32-S3-WROOM-1 chip, equipped with 16MB Flash and 8MB PSRAM. The chip features a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth wireless functionalities, and operates at a high frequency of up to 240MHz. It possesses strong neural network computing and signal processing capabilities, making it suitable for projects involving image recognition, voice recognition, and other applications in the field of IoT devices and smart homes.

The module includes a 4-inch LCD display with a USB to TTL converter included. The display utilizes capacitive touch technology, ensuring sensitive and precise touch response. It supports development environments such as Arduino, Mixly, Scratch, and is compatible with the LVGL graphics library. Additionally, it allows the use of SquareLine_Studio to design customized UI interfaces.

Whether it's for DIY projects, embedded systems, medical devices, industrial control, IoT devices, smart homes, or other creative applications, this display meets your requirements and provides a new generation of remote development tools for users.

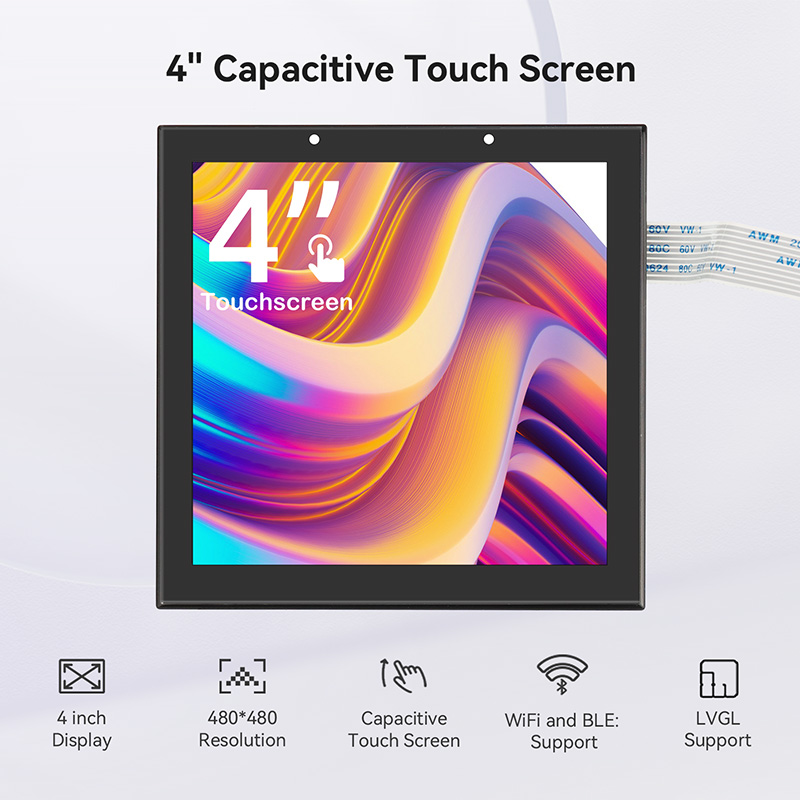

4 inch square ESP32 display features

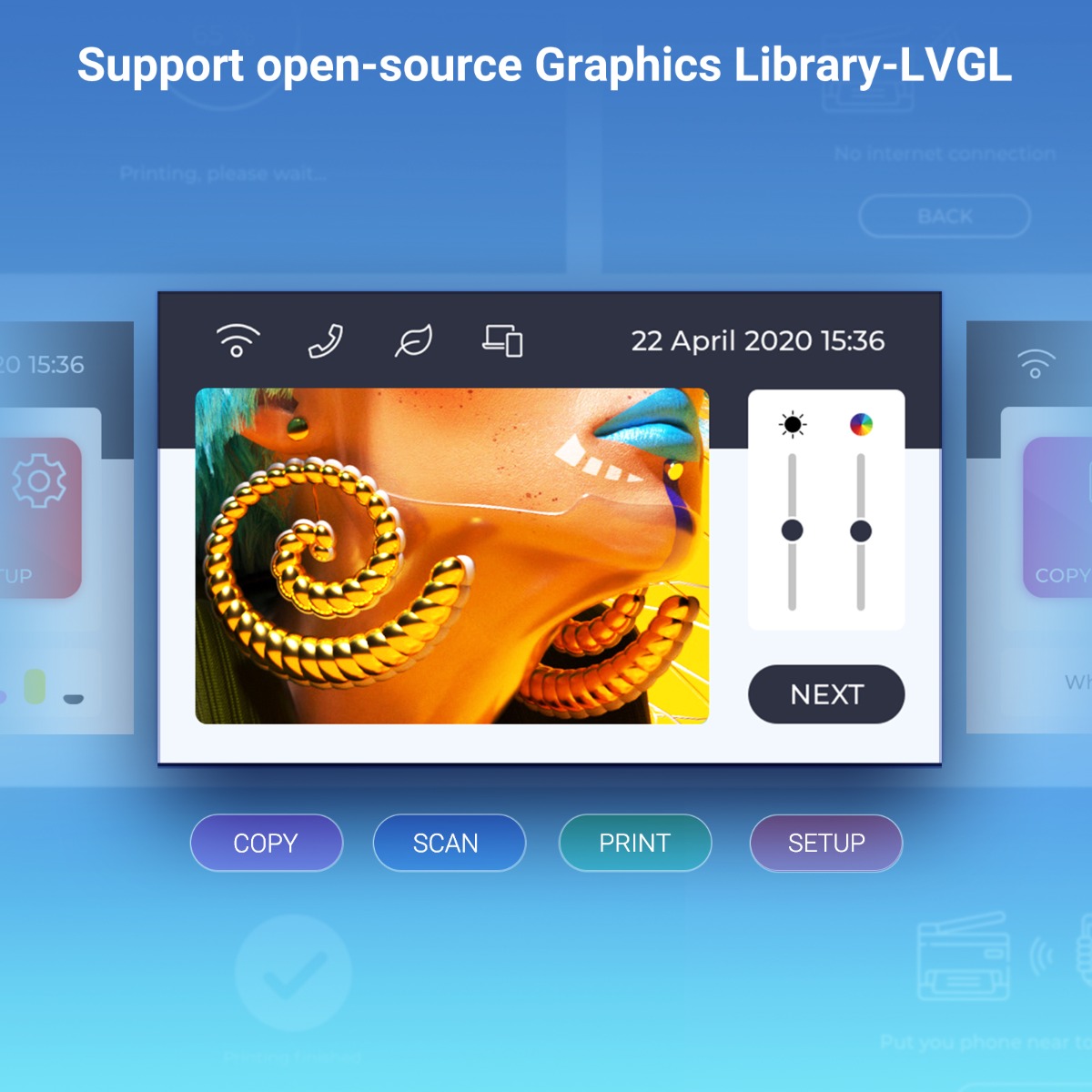

Support open-source Graphics Library-LVGL

4inch display support open-source graphics library-LVGL

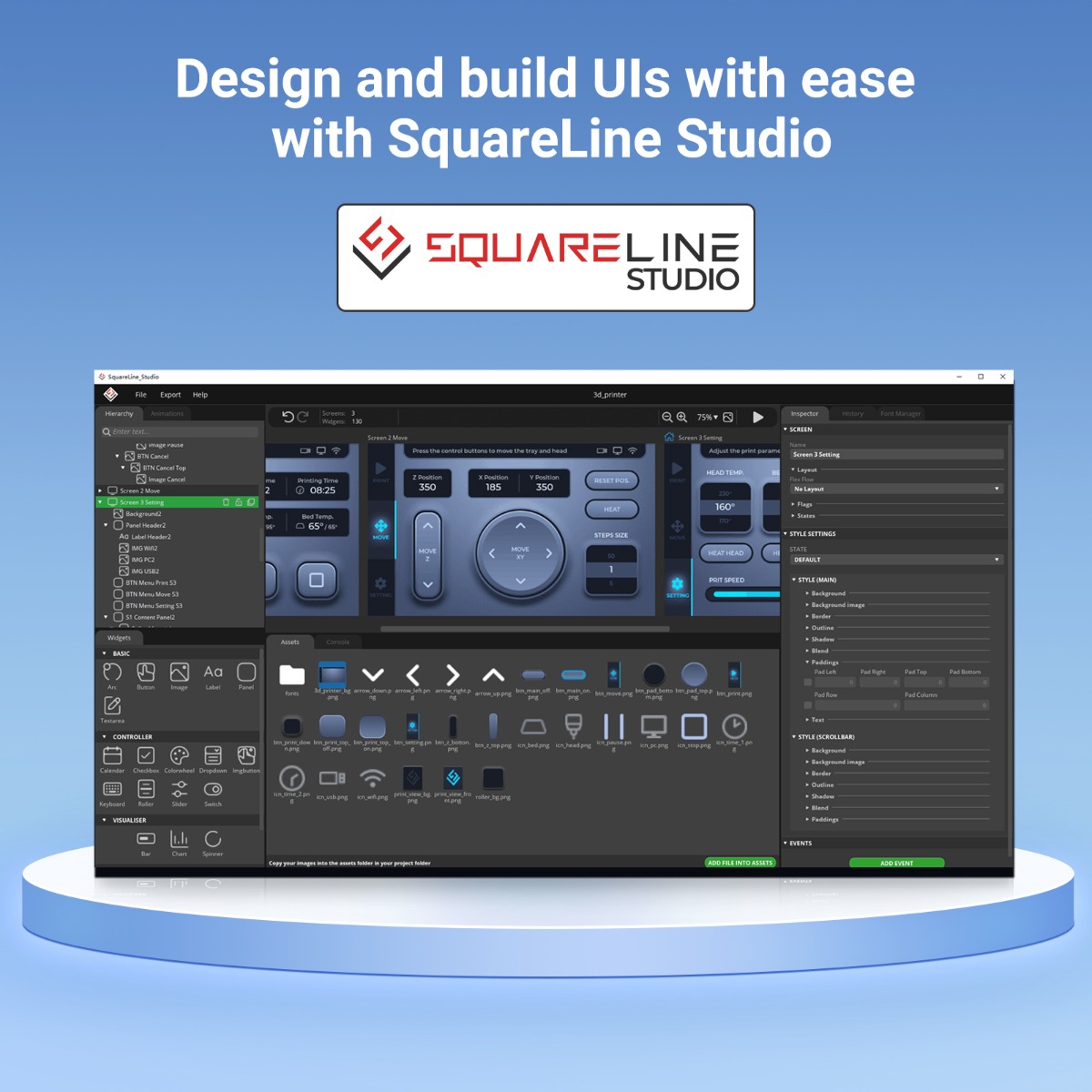

Design and build UIs with ease with SquareLine Studio

Design and build UIs with ease with SquareLine Studio



Easy to handle common edge terminal device application scenarios

4 inch square ESP32 display with application scenarios

wide applications of 4 inch IPS display

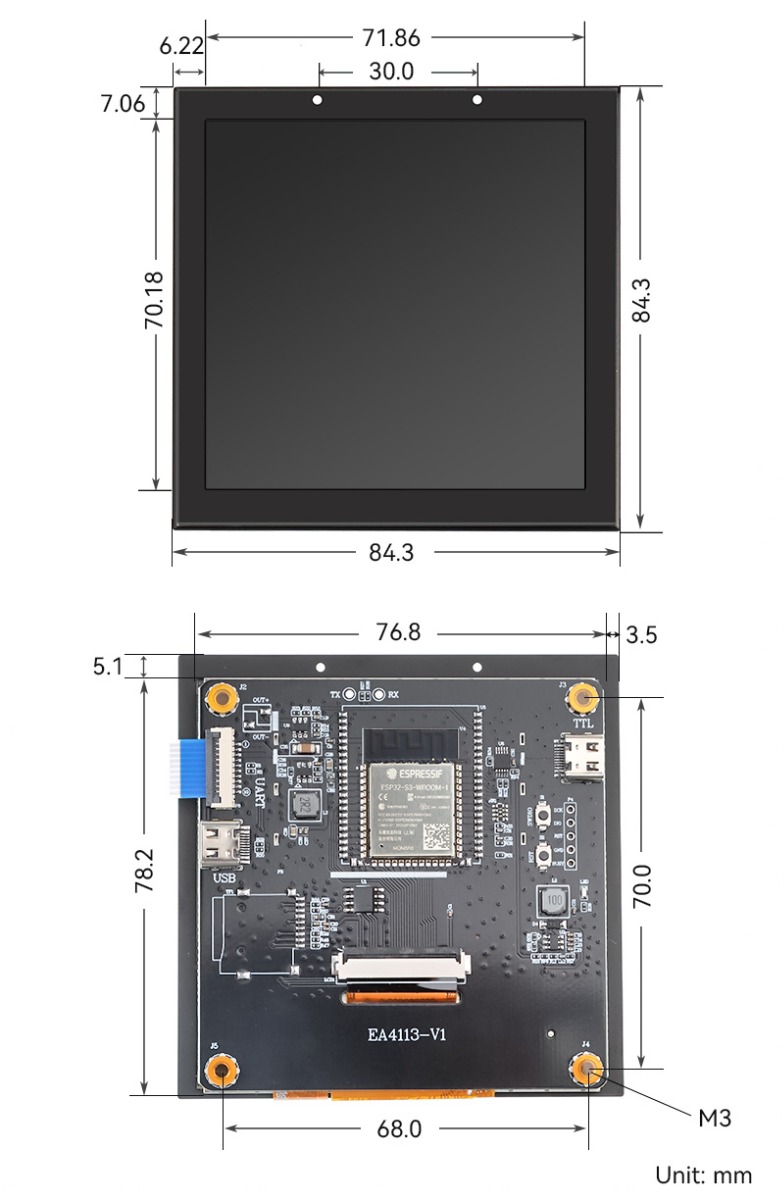

4 inch square ESP32 display dimension

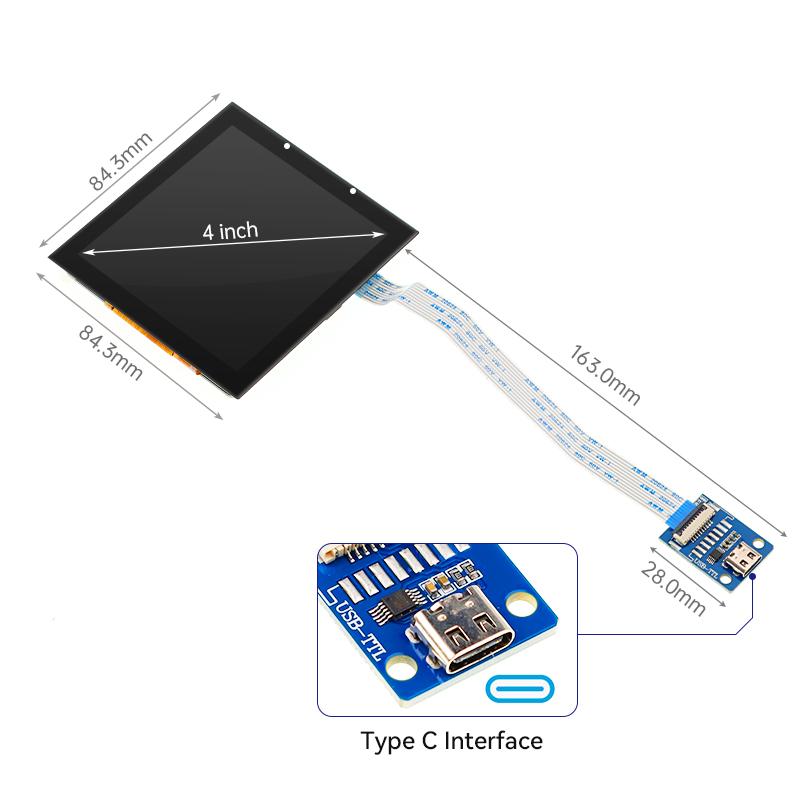

4 inch square ESP32 display front and back dimension

Feature



  • Powered by the ESP32-S3 as the main controller, featuring a dual-core 32-bit LX6 microprocessor with a maximum frequency of 240MHz.
  • 480*480 resolution, support capacitive touch.
  • Integrated WiFi and Bluetooth wireless functionalities, enabling easy implementation of IoT applications.
  • Supports development environments such as Arduino, Mixly, Scratch, compatible with the LVGL graphics library, and allows the use of SquareLine_Studio to design personalized UI interfaces.
  • Powerful neural network computing capabilities and signal processing capabilities, suitable for image recognition, speech recognition and other projects.
  • Suitable for various scenarios including DIY projects, embedded systems, medical devices, industrial control, IoT devices, and smart homes.



Specification



Main Processor

ESP32-S3-WROOM-1 N16R8

Flash

16MB(Quad SPI)

PSRAM

8MB(Octal SPI)

Frequency

240MHz

Size

4 inch

Resolution

480*480

Viewing Angle

80.80.80.80

Brightness

400 cd/m²

Touch Type

Capacitive Touch

Screen Type

TN Panel

Interface Type

Type C

WiFi

Support

Bluetooth 5.0

Support

Button

SWDIO Button and Reset Button

Operation Voltage

5V (can also use the USB port for 5V power supply)

Active Area

71*71mm

Module Dimension

84*84*10mm

Weight

80g



Package List



  • 1x 4.0 inch Square Touchscreen
  • 1x USB to TTL
