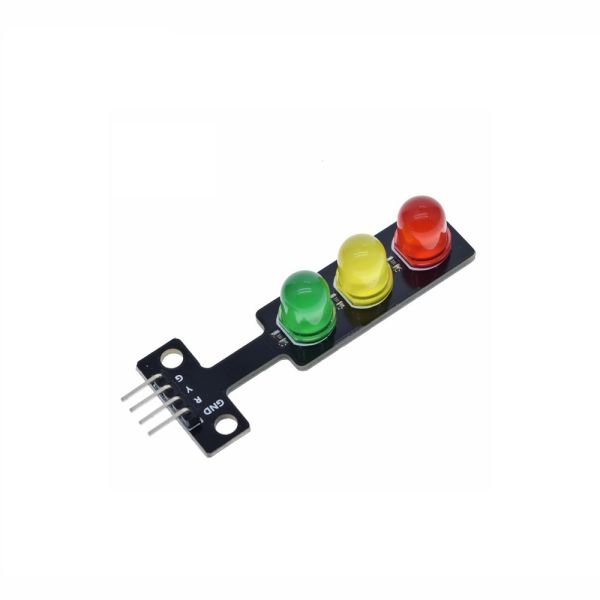

5v Led Traffic Light Module Digital Signal Output Ordinary Brightness 3 Light

SKU
DPI01710M
Weight
10
In stock
$1.78
-
+
Overview

This is a mini traffic light display module, suitable for Raspberry Pi or other traffic light system model. The green light is darker, the yellow light is brighter than the green light, and the red light is the brightest.

Description

This is a mini traffic light display module, suitable for Raspberry Pi or other traffic light system models. The green light is darker, the yellow light is brighter than the green light, and the red light is the brightest.



Feature

  • Interface: common cathode, red, yellow, and green are controlled separately.
  • Quick response: The module is Ultra-fast response, has a strong anti-interference ability with cost-effectiveness.
  • Good performance: It not only has ultra-low energy consumption but also has a long transmission distance.



Specification

  • Size: 61 * 21 * 11mm(24 * 8.3 * 4.3inch)
  • Light Color: Red, Yellow, Green
  • LED: 5mm * 3
  • Brightness: Ordinary brightness
  • Voltage: 5V
  • Input: Digital signal output
  • Interface: Common cathode, red yellow green separate control
  • Platform: for Arduino, 51 single chip microcomputer
  • Operating current: Red 13mA; Yellow 13mA; Green 25mA
  • Each cable length: about 20 cm /8-inches



Package List

  • 1 x Traffic light module
