CrowPanel ESP32 3.7” E-paper HMI Display with 240*416 Resolution, Black/White Color Driven By SPI Interface

Rating:
100 % of 100
$25.90
Availability: In stock
SKU
DIE01237S001
Brand
elecrow
Weight
135g

【3.7-inch E-Paper display】240*416 resolution, using ESP32-S3 as the main control, excellent performance.
【Pure reflection mode】By reflecting ambient light instead of the backlight to display content, it is clearly readable in direct sunlight.
【Retain data during power outages】The data will not be lost even when there is no power.
【Ultra-low power consumption】It only consumes power when refreshing, extending battery life.

Description

This CrowPanel ESP32 3.7” E-paper HMI Display has a resolution of 240*416 and a classic black and white dual-color presentation, bringing a reading experience like paper. It has high contrast and reflectivity, and thanks to hard-coated anti-glare technology, ensures excellent visual performance under various lighting conditions. The built-in ESP32-S3 chip as the main control ensures powerful performance and fast and stable data transmission through the SPI interface.

It is also equipped with various interface and button designs, including BAT interface, UART0 interface, 2x10 pin GPIO interface, back button, home button and rotary switch switch, allowing developers to easily program and control. The white acrylic case is not only beautiful but also protects the screen.

Based on the ESP32 chip, another highlight is its wide compatibility. It is compatible with three development environments: Arduino IDE, ESP IDF, and MicroPython, simplifying the secondary development process. Also, its ultra-wide viewing angle design allows you to enjoy the same brilliant image from any angle. The ultra-low power consumption feature consumes only a small amount of power when refreshing, ensuring long-lasting battery life. Pure reflection mode means no backlight is required, and information remains clearly visible after power failure, without worrying about information loss.

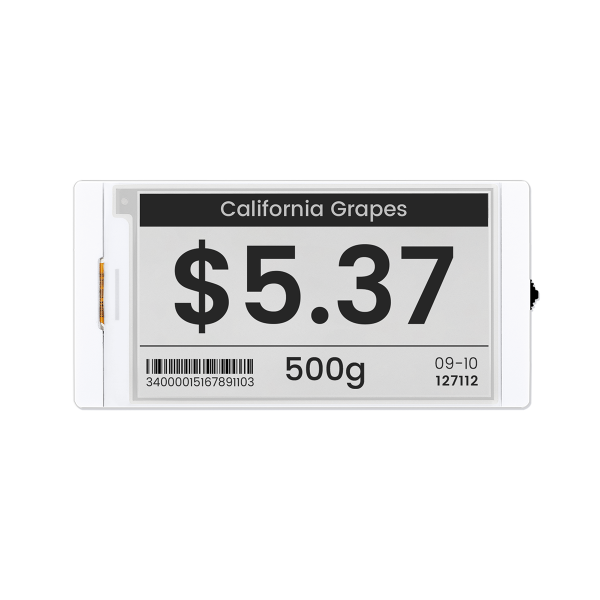

This E-Paper display works in pure reflection mode, providing a comfortable reading experience close to paper. It is suitable for application scenarios such as shelf labels, price tags, badges, smart labels, and smart homes and is also an ideal choice for e-readers, smart wearable devices, and other portable devices.

Customization can be discussed for bulk orders.

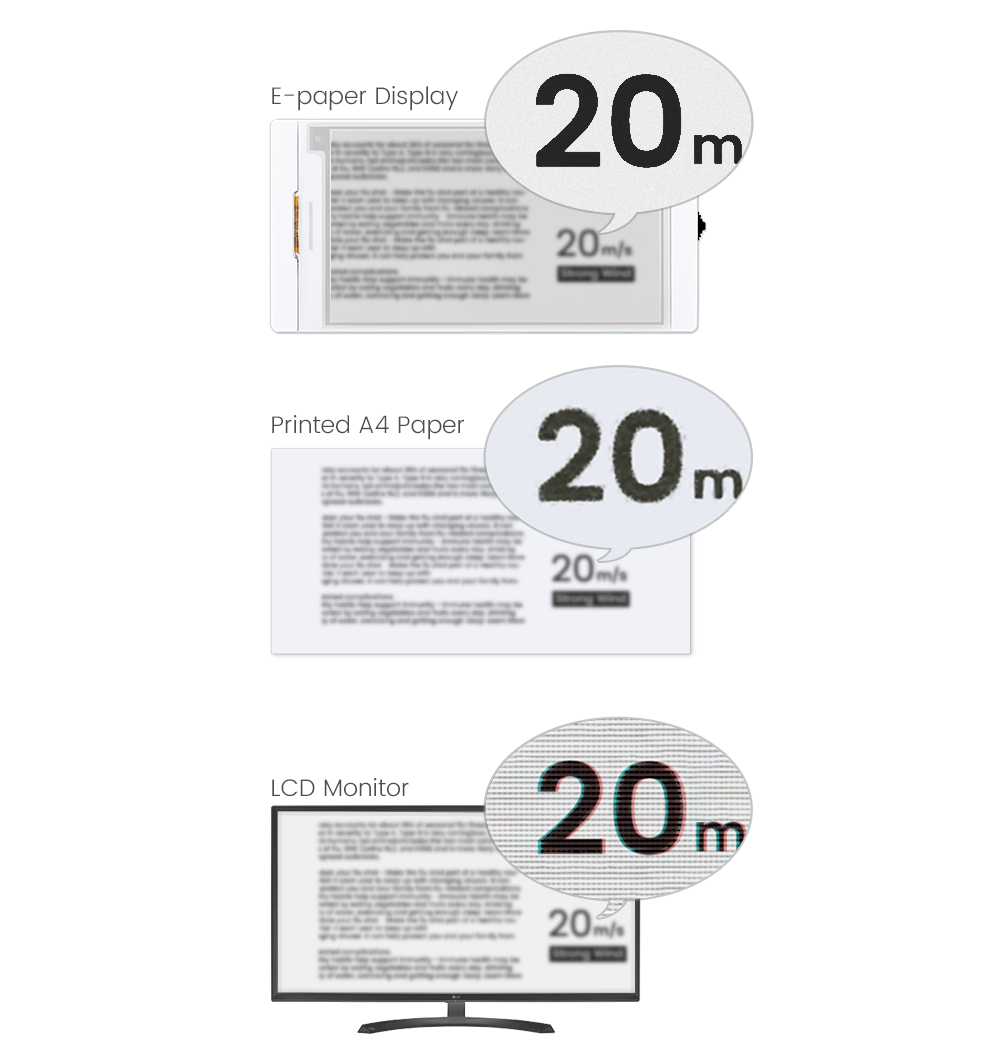

ESP32 3.7 inch E-paper HMI Display feature

application of ESP32 3.7 inch E-paper HMI Display

application of e-paper

hardware overview of ESP32 3.7 inch E-paper HMI Display

Feature

  • 3.7-inch E-Paper display, 240*416 resolution, black and white, using SPI interface communication;
  • ESP32-S3 as the main chip, frequency up to 240MHz;
  • Support full viewing angle, clearly visible from any angle;
  • High contrast and high reflectivity provide a clearer and more vivid visual experience;
  • Pure reflection mode, no backlight required, completely relying on light reflection to display content, and the displayed content will not be lost even if the power is off;
  • Hard-coated anti-glare display surface, it can keep the content clearly visible even under direct sunlight;
  • Ultra-low power consumption and partial refresh function, significantly saving energy;
  • Rich buttons and interfaces (such as GPIO interface, UART interface, home button, etc.) for easy development and operation;
  • Support Arduino IDE, ESP IDF, and MicroPython development environment to get a smooth development experience.



Where to use

  • Electronic label: supermarket or shelf product information and price;
  • E-book reader;
  • Electronic business card: display the corresponding participant information;
  • Smart home and other applications;



Specification

Size

3.7 inch

MCU

ESP32-S3-WROOM-1-N8R8, up to 240 MHz

Flash

8 MB

PSRAM

8 MB

Material

Active Matrix Electrophoretic Display (AM EPD)

Driver Chip

UC8253

Resolution

240(H)*416(V) Pixel

Pixel pitch

0.196*0.196

Viewing Angle

Full Viewing Angle

Communication interface

3-/4-wire SPI, default 4-wire SPI

Interface

UART0x1, BATx1, GPIIOx1, TF Card x1

Button

Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1

Development Environment

Arduino IDE、ESP IDF、MicroPython

Display Color

Black and white

Refresh Mode

Partial refresh (saves more power)

Display Operation Voltage

2.2~3.7V

Case

White Acrylic Case

Operation Temperature

-0~50℃

Storage Temperature

-25~70℃

Active Area

47.04(H)*81.54(L)(H*L)



Package List

  • 1x 3.7 inch E-Paper Display
  • 1x USB Cable



Wiki & External links
