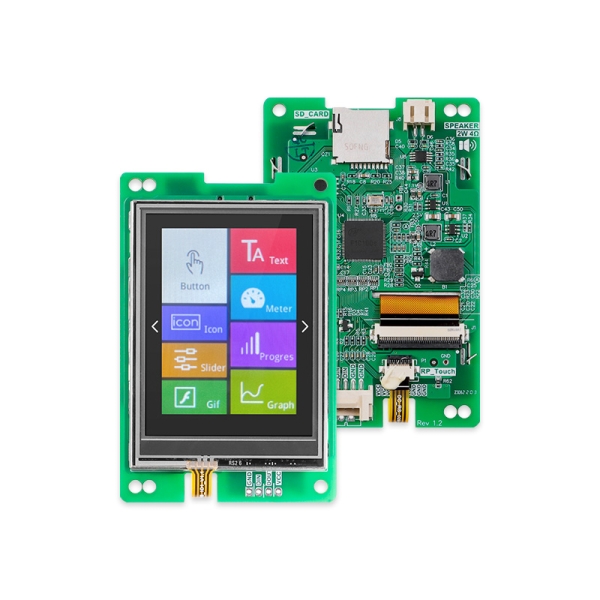

Wizee 2.8 inch HMI touch display 240*320 RS232/TTL serial screen LCD dIsplay
SKU
DIS28107P
Weight
180 g
Availability
In stock
$25.90
Description
This 2.8-inch HMI touchable serial screen adopts the 400M SOC processor, makes the screen runs faster, and it can run after power is on. LUA script programming is supported, and logic and algorithms are run inside the screen to reduce communication frequency. At the same time, its power consumption is low. When the backlight is in the darkest mode, the processor runs at about 0.4w at full speed, and the sleep mode can reach about 0.17w. Support a variety of configuration controls, and conventional configuration controls can meet 95% of the user's needs. Medical grade standard design, through a variety of strict tests, high reliable quality.
Feature
- Easy to use, power up and run
- Using the 400M SOC processor, the screen runs faster, and it can run after power on
- Support a variety of configuration controls, and conventional configuration controls meet 95% of users' need
- High reliable quality, designed with medical standards and passed several strict tests
- Support JPEG, and PNG image compression
- Support visual programming, what you see is what you get
- Support LUA script programming to reduce communication frequency
Specification
|
Product Specification |
|
|
Core Processor |
400M SOC processor |
|
Scripting Language |
LUA script, the logic, protocol and algorithm functions written by the user can be run inside the screen |
|
Size |
2.8 inch |
|
Resolution |
240*320 |
|
Installation direction |
Supports 0°, 90°, 180° and 270° rotation mount displays |
|
Storage |
16MB |
|
Flash |
16MB |
|
RAM(DDR SDRAM) |
32MB |
|
Communication Method |
RS232/TTL (Default 232 level, short J5 for TTL level) |
|
Communication baud rate |
1200～921600bps,Typical baud rate:115200bps |
|
Communication Connector Specifications |
HY2.0-8P |
|
Real Time Clock(RTC) |
Not support |
|
Active Area（AA） |
L*W =57.6mm*43.4mm |
|
Product Size（L*W*H） |
87.0mm*56.5mm*11.9mm（MAX,含TP） |
|
Operating Temperature |
-20～+70℃ |
|
Storage Temperature |
-30～+80℃ |
|
Voltage |
4.5-15V |
|
Music player |
MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures. |
|
Audio Connector Specifications |
PH2.0-2P |
|
Video Playback |
MP4 video format, which shares storage space with pictures. |
|
TFT LCD |
|
|
Backlight tube |
LED |
|
Brightness（cd/m²） |
350 |
|
Backlight life（H) |
>20,000 |
|
Contrast |
250:1 |
|
Perspective（L/R/T/B) |
55/55/55/30 |
|
Touch panel |
|
|
Touch Type |
Resistive touch screen |
|
Resistive touch screen |
Single point, swipe touch |
|
Resistive screen transmittance |
More than 80% |
|
Resistive screen touch times |
The same pixel, the number of single points is more than 1 million times |
Product Comparison
|
Product Name |
2.8 inch HMI touch display 240*320 TTL serial screen LCD display |
3.5 inch HMI IPS display 320*480 TTL serial screen touch display |
5 inch HMI touch display 800*480 TTL serial screen |
7 inch 800*480 TTL serial screen HMI touch display |
||
|
Resolution |
240*320 |
240*320 |
320*480 |
480*272 |
800*480 |
800*480 |
|
Storage |
8MB |
16MB |
16MB |
8MB |
16MB |
16MB |
|
Flash |
8MB |
16MB |
16MB |
8MB |
16MB |
16MB |
|
RAM(DDR SDRAM) |
32MB |
32MB |
32MB |
32MB |
32MB |
32MB |
|
Music player |
Not support |
MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures. |
Not support |
Not support |
MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures. |
MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures. |
|
Active Area |
49.0mm*36.7mm |
57.6mm*43.4mm |
73.9mm*49.4mm |
96.0mm*54.9mm |
108.9mm*65.8mm |
155.0mm*87.0mm |
|
Real Time Clock(RTC) |
Not support |
Not support |
Not support |
Not support |
Support clock, timer, countdown and other functions |
Support clock, timer, countdown and other functions |
|
Audio Connector Specifications |
None |
PH2.0-2P |
None |
None |
PH2.0-2P |
PH2.0-2P |
|
Voltage |
5V |
4.5-15V |
4.5-15V |
5-18V |
4.5-30V |
4.5-30V |
|
Screen Type |
HD screen |
HD screen |
IPS screen |
HD screen |
HD screen |
HD screen |
|
Price |
$22.9 |
$25.9 |
$29.9 |
$31.9 |
$48.9 |
$51.9 |
Package List
- 1x 2.8 inch HMI touch screen
- 1x 8pin cable
- 1x HY2.0-8P
- 1x 0.8m USB to RS-232 Cable
- 1x Debug board
Wiki & External links
|
Product Name |
2.8 inch HMI touch display 240*320 TTL serial screen LCD Play |
3.5 inch HMI IPS display 320*480 TTL serial screen touch display |
||||
|
Resolution |
240*320 |
240*320 |
320*480 |
480*272 |
800*480 |
800*480 |
|
Storage |
8MB |
16MB |
16MB |
8MB |
16MB |
16MB |
|
Flash |
8MB |
16MB |
16MB |
8MB |
16MB |
16MB |
|
RAM(DDR SDRAM) |
32MB |
32MB |
32MB |
32MB |
32MB |
32MB |
|
Music player |
Not support |
MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures. |
Not support |
Not support |
MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures. |
MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures. |
|
Active Area |
49.0mm*36.7mm |
57.6mm*43.4mm |
73.9mm*49.4mm |
96.0mm*54.9mm |
108.9mm*65.8mm |
155.0mm*87.0mm |
|
Real Time Clock(RTC) |
Not support |
Not support |
Not support |
Not support |
Support clock, timer, countdown and other functions |
Support clock, timer, countdown and other functions |
|
Audio Connector Specifications |
None |
PH2.0-2P |
None |
None |
PH2.0-2P |
PH2.0-2P |
|
Voltage |
5V |
4.5-15V |
4.5-15V |
5-18V |
4.5-30V |
4.5-30V |
|
Screen Type |
HD screen |
HD screen |
IPS screen |
HD screen |
HD screen |
HD screen |
|
Price |
$22.9 |
$25.9 |
$29.9 |
$31.9 |
$48.9 |
$51.9 |
