3.5 inch HMI Display

Wizee 3.5 inch HMI IPS display 320*480 RS232/TTL serial screen touch display

5 inch HMI Display

Wizee 5 inch HMI touch display 800*480 RS232/TTL serial screen

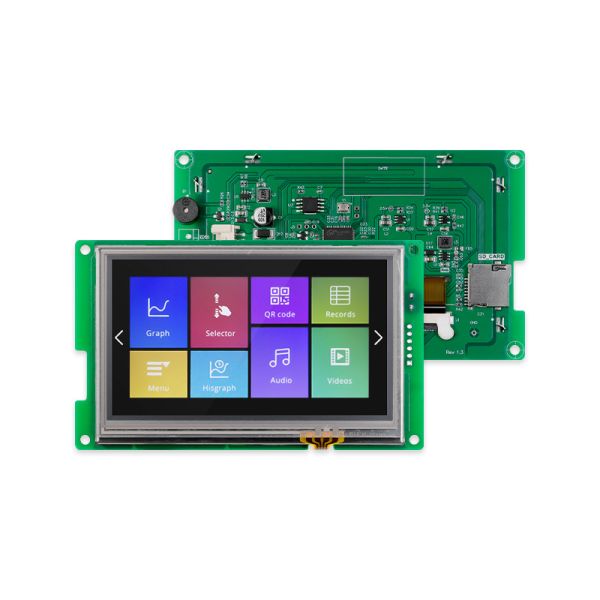

Wizee 4.3 inch HMI touch display 480*272 TTL serial screen

Rating:
93 % of 100
$36.90
Availability: In stock
SKU
DIS43125P
Brand
elecrow
Weight
210g

【4.3-inch HMI screen】430×272 resolution, resistive touch TTL serial port screen.

【400M SOC processor】The screen runs faster and can run immediately after powering on.

【Visual Programming】Supports visual programming, what you see is what you get; supports LUA script programming, reducing communication frequency.

【Reliable Quality】Designed under medical standards and passed multiple rigorous tests, extremely high quality.

Description

This 4.3-inch HMI touchable serial screen adopts the 400M SOC processor, makes the screen runs faster, and it can run after power is on. LUA script programming is supported, and logic and algorithms are run inside the screen to reduce communication frequency. At the same time, its power consumption is low. When the backlight is in the darkest mode, the processor runs at about 0.4w at full speed, and the sleep mode can reach about 0.17w. Support a variety of configuration controls, and conventional configuration controls can meet 95% of the user's needs. Medical grade standard design, through a variety of strict tests, high reliable quality.

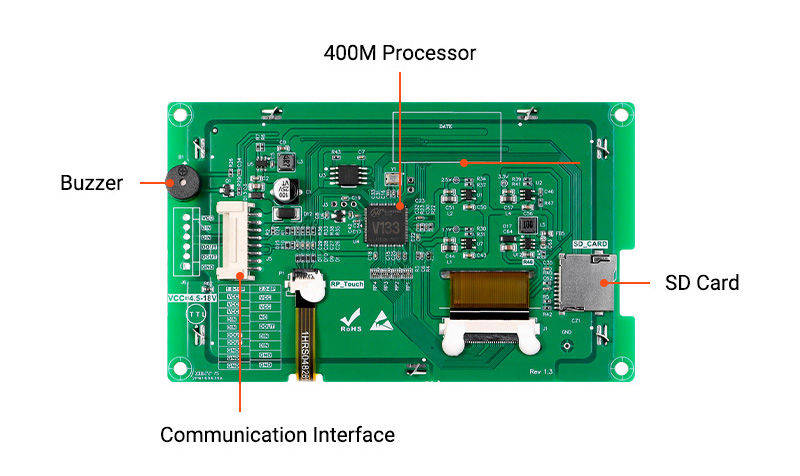

4.3 inch HMI screen interface overview

Feature

  • Easy to use, power up and run
  • Using the 400M SOC processor, the screen runs faster, and it can run after power on
  • Support a variety of configuration controls, and conventional configuration controls meet 95% of users' need
  • High reliable quality, designed with medical standards and passed several strict tests
  • Support JPEG, and PNG image compression
  • Support visual programming, what you see is what you get
  • Support LUA script programming to reduce communication frequency



Specification

Product Specification

Core Processor

400M SOC processor

Scripting Language

LUA script, the logic, protocol and algorithm functions written by the user can be run inside the screen

Size

4.3 inch

Resolution

480*272

Installation direction

Supports 0°, 90°, 180° and 270° rotation mount displays

Storage

8MB

Flash

8MB

RAM(DDR SDRAM)

32MB

Communication Method

TTL

Communication baud rate

1200~921600bps,Typical baud rate:115200bps

Communication Connector Specifications

HY2.0-8P

Real Time Clock(RTC)

Not support

Active Area(AA)

L*W =96.0mm*54.9mm

Product Size(L*W*H)

122.3mm*73.5mm*14.6mm(MAX,含TP)

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

Voltage

5-18V

Music player

Not support

Audio Connector Specifications

None

Video Playback

MP4 video format, which shares storage space with pictures.



TFT LCD

Backlight tube

LED

Brightness(cd/m²)

350

Backlight life(H)

>20,000

Contrast

500:1

Perspective(L/R/T/B)

60/60/40/50



Touch panel

Touch Type

Resistive touch screen

Resistive touch screen

Single point, swipe touch

Resistive screen transmittance

More than 80%

Resistive screen touch times

The same pixel, the number of single points is more than 1 million times



Product Comparison

Product Name

2.4 inch HMI touch display 240*320 TTL serial screen

2.8 inch HMI touch display 240*320 TTL serial screen LCD Play

3.5 inch HMI IPS display 320*480 TTL serial screen touch display

4.3 inch HMI touch display 480*272 TTL serial screen

5 inch HMI touch display 800*480 TTL serial screen

7 inch 800*480 TTL serial screen HMI touch display

Resolution

240*320

240*320

320*480

480*272

800*480

800*480

Storage

8MB

16MB

16MB

8MB

16MB

16MB

Flash

8MB

16MB

16MB

8MB

16MB

16MB

RAM(DDR SDRAM)

32MB

32MB

32MB

32MB

32MB

32MB

Music player

Not support

MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures.

Not support

Not support

MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures.

MP3 audio format (speaker 4Ω2W, mono), share storage space with pictures.

Active Area

49.0mm*36.7mm

57.6mm*43.4mm

73.9mm*49.4mm

96.0mm*54.9mm

108.9mm*65.8mm

155.0mm*87.0mm

Real Time Clock(RTC)

Not support

Not support

Not support

Not support

Support clock, timer, countdown and other functions

Support clock, timer, countdown and other functions

Audio Connector Specifications

None

PH2.0-2P

None

None

PH2.0-2P

PH2.0-2P

Voltage

5V

4.5-15V

4.5-15V

5-18V

4.5-30V

4.5-30V

Screen Type

HD screen

HD screen

IPS screen

HD screen

HD screen

HD screen

Price

$25.9

$29.9

$34.9

$36.9

$50.9

$53.9



Package List

  • 1x 4.3 inch HMI touch screen
  • 1x 8pin cable
  • 1x HY2.0-8P
  • 1x 0.8m USB to RS-232 Cable
  • 1x Debug Board
