ESP32-A1S Wi-Fi+BT Audio Development Kit

Rating:

90 % of 100

2 Reviews Add Your Review

$16.90

Availability: In stock

SKU

DTE01016K

Brand

elecrow

Weight

30g

Qty:

Add to Wish List Add to Compare

【ESP32 Audio Kit】Equipped with dual-core Xtensa LX6 CPU, micro SD slot (up to 64Gb storage) and 802.11 b/g/n Wi-Fi + Bluetooth-compatible 4.2 LE;

【Support dual-channel output】The left and right channel speakers support output of 4Ω 3W speaker output, and support dual-channel output at the same time;

【Supports Smart Config or Airkiss one-click networking】

【Wide Application】It is an ideal solution for IoT audio applications, suitable for smart home devices, smart audio, etc.

Details

Description

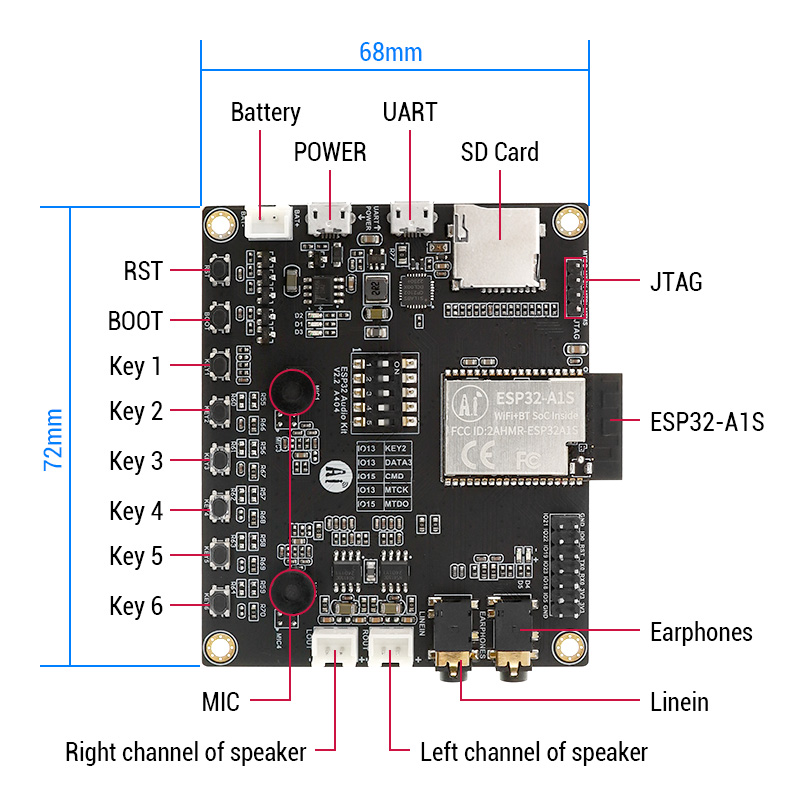

The core part of the ESP32 Audio Kit is ESP32- A1S module, it can work as a minimum independent system. Most audio interfaces are distributed on both sides of the development board for easy access, include 3.5 mm headphone jack, 3.5 mm line-in jack, a pair of 2-pin headers for left/right speakers (up to 4Ω/3W output), and a couple of built-in microphones. The ESP32-Audio-Kit is outfitted with a dual-core Xtensa LX6 CPU (520Kb SRAM, 8Mb of PSRAM), micro SD slot (up to 64Gb of storage), and 802.11 b/g/n Wi-Fi + Bluetooth-compatible 4.2 LE.

The ESP32-Audio-Kit is compatible with Espressif’s ESP-ADF framework, which offers support for Google’s Assistant and Amazon’s Alexa. It is an ideal solution for IOT Audio applications, it’s suitable for smart home devices, smart audio, etc.

Features

Embedded LwIp and FreeRTOS.
Support Smart Config or Airkiss one-click network connection.
Support STA/ AP/ STA+AP working mode.
Charged by 5V/ 2A power supply and 3.7V lithium battery.
Support 64G SD card reading and writing.
Left and right channel speakers support output 4Ω 3W speaker output, and support dual channel output at the meantime.
Two analog microphones are used as audio input and headset microphone input respectively.
3.5 mm headphone jack supports left and right channel output.

Specifications

CPU: Xtensa® 32-bit LX6 dual-core processor,Summary computing power up to 600 DMIPS
ROM: 520KB SRAM RTC 16 KB SRAM
IO Port: 10
SPI Flash: Default 32Mbit
RAM: 520KB SRAM+8M PSRAM
Support interface: URAT,SPI,I2C,PWM
UART Baudrate: Default 115200 bps
Audio Output: Support 1 channel headphone output and 1 channel left and right speaker output
Audio Input: Support LINEIN and 2-way MIC input
Spectrum range: 2412~2484MHz
WiFi 802.11: b/g/n/d/e/i/k/r (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4μs guard interval 2.4~2.5GHz
Bluetooth-compatible: Bluetooth-compatible 4.2 BR/EDR and BLE standards, NZIF receiver with -98 dBm sensitivity, support AFH (Adaptive Frequency Hopping), support CVSD and SBC audio formats
