Features

• Compatible with Arduino UNO, Leonardo, easy access to a variety of Arduino expansion board
• Onboard XBee interface, easy access to a variety XBee module
• Onboard USB TO UART, serial facilitate debugging, can be configured to XBee USB Adapter
• Onboard sensor interface for easy access to a variety of sensors
• Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
• Onboard RTC, which is one of the most commonly used functions

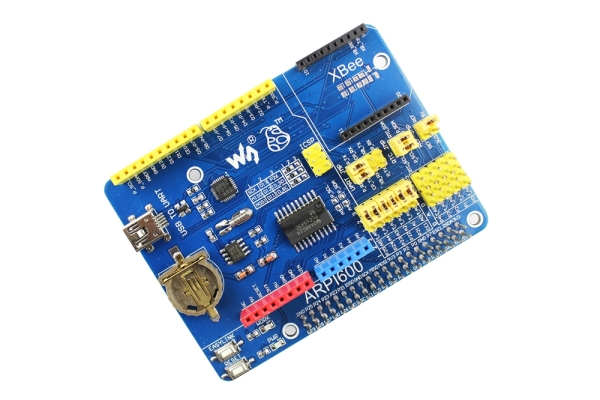

What's on the ARPI600

• 1: Arduino connector :for connecting Arduino shields
• 2: ICSP interface :Arduino ICSP
• 3: XBee connector :for connecting XBee communication modules
• 4: Sensor interface :for connecting sensors
• 5: Raspberry Pi connector :for connecting Raspberry Pi
• 6: USB TO UART
• 7: TLC1543 :AD converter
• 8: PCF8563 :RTC
• 9: CP2102
• 10: 32.768KHz crystal :for RTC
• 11: Power indicator
• 12: XBee state LED
• 13: XBee and Arduino interface RESET button
• 14: XBee EASYLINK button
• 15: RTC battery holder :for CR1220 button battery
• 16: TLC1543 reference voltage configuration jumper
• 17: RTC jumper
• 18: UART jumper
• 19: Arduino AD selection jumper
• 20: Arduino I2C selection jumper
• 21: Arduino SPI selection jumper

Package list

• Expansion Board for Raspberry Pi x 1

Wiki & External links

• Schematic
• TLC1543 Datasheet
• CP2102
• PCF8563
• Panasonic_SDFormatter
• Win32DiskImager
• Putty
• WiringPi & bcm2835 C LIB
