3D Printing Service Quotation and Order Process

If Auto quotation cannot meet your printing needs, you can also directly click the "Manual quotation" button to send us inquiry.

Multiple 3D files can be uploaded at the same time(Max 10 files) , Single file size max 30MB

only supported STL file for Auto Quotation

Send email to service@elecrow.com with 3D printing files, supported formats: STL, step, STP, IGS, IGES, OBJ, 3DS, max printing size 1400*700*500mm.

NO. Picture Specification Material Name Quantity Price Manage

3D Printing Materials Available

Tell us which material do you need in the email, we will quote for you.

Picture Material Name Characteristic Physical Specification Common Use

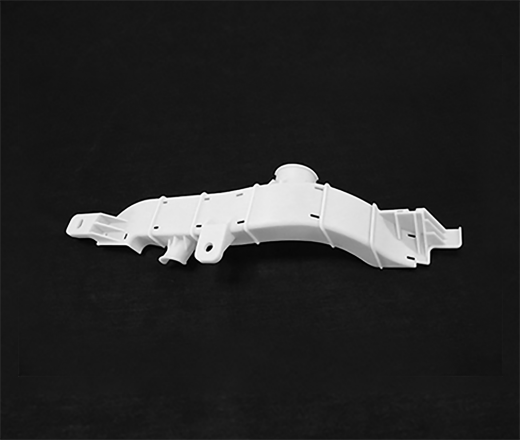

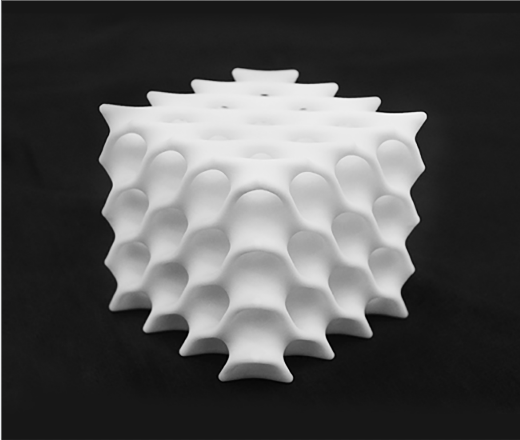

Photosensitive resin
(domestic 9400)
The surface is smooth and white, which can be used for oil injection coloring treatment. Toughness: the material is brittle and suitable for ordinary assembly.

Density: 1.3g/cm^3

Working Accuracy: ±0.15/100mm

Temperature resistance:46℃

Tensile Strength: 27~31MPa

Modulus of Elasticity: 2178~2222MPa

Automobile, consumer electronics, electromechanical, art
Photosensitive resin
(LASTY-R)
The surface is smooth and light yellow, which can be used for oil injection coloring treatment. Toughness: the strength and toughness are better than photosensitive resin-9400.

Density: 1.15g/cm^3

Working Accuracy: ±0.15/100mm

Temperature resistance:46℃

Tensile Strength: 45~58MPa

Modulus of Elasticity: 2685~2775MPa

Automobile, consumer electronics, electromechanical, art

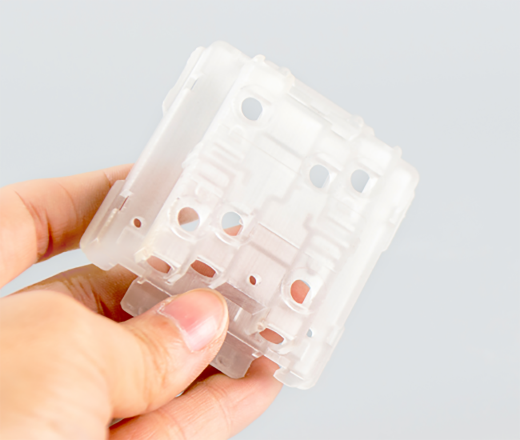

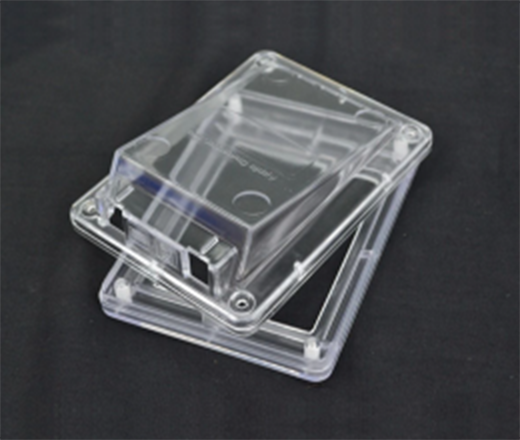

Transparent resin The surface is smooth, transparent, slightly laminated, and the transparency of some inner cavity structures is slightly poor. Toughness: the material is brittle and suitable for ordinary assembly.

Density: 1.12g/cm^3

Working Accuracy: ±0.3/100mm

Temperature resistance:40-51℃

Tensile Strength: 450MPa

Automobile, consumer electronics, electromechanical, art
Translucent resin The surface is smooth, translucent and slightly laminated. Toughness: the material is brittle and suitable for ordinary assembly.

Density: 1.12g/cm^3

Working Accuracy: ±0.3/100mm

Temperature resistance:40-51℃

Tensile Strength: 450MPa

Automobile, consumer electronics, electromechanical, art

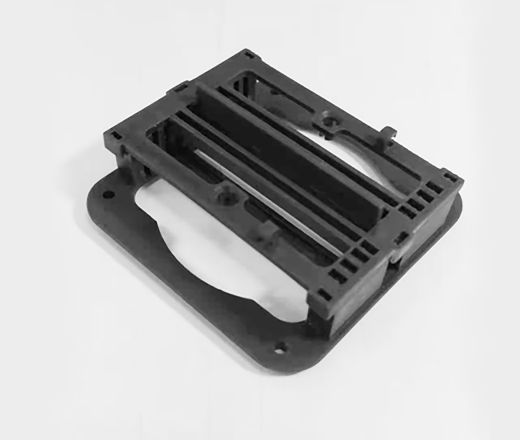

Black resin The surface is smooth and gray black. Toughness: good toughness and strength.

Density: 1.18g/cm^3

Working Accuracy:±0.15/100mm

Temperature resistance:58~69℃

Tensile Strength: 41~58MPa

Modulus of Elasticity: 2722~2792MPa

Master model in automotive, medical, consumer electronics and other industrial fields, Conceptual model, general components, production of functional components.

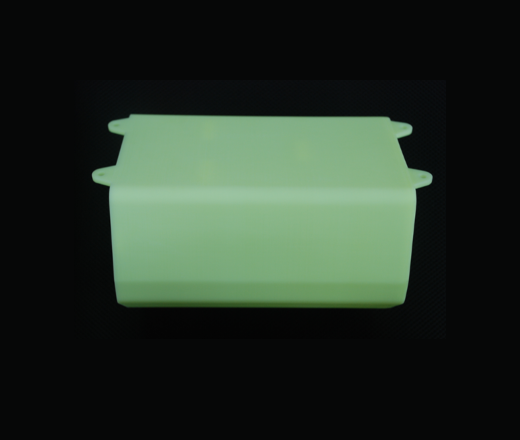

High toughness resin 8220 The surface is smooth and light green; High hardness, strength and precision; Fast construction speed, excellent temperature resistance, toughness and dimensional stability.

Density: 1.15g/cm^3

Working Accuracy:±0.15/100mm

Temperature resistance:65℃

Tensile Strength: 45MPa

Modulus of Elasticity: 2355MPa

Aerospace, automotive, consumer goods and electronics

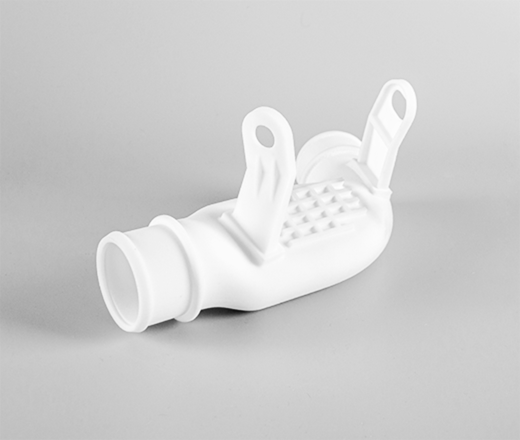

Nylon The surface is grainy and white. Toughness: good toughness and high fracture ductility.

Density: 1g/cm^3

Working Accuracy:±0.2/100mm

Temperature resistance:145℃

Tensile Strength: 46MPa

Modulus of Elasticity: 1602MPa

Auto parts, household appliances, electromechanical equipment

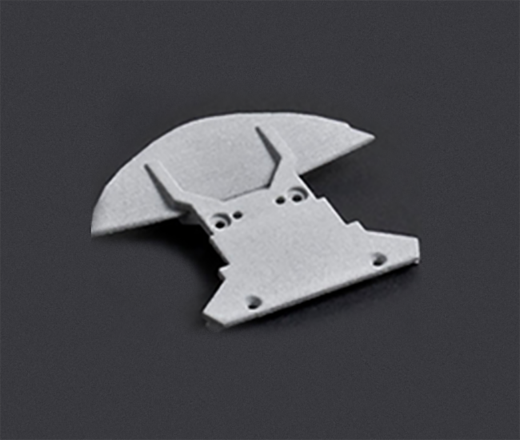

Nylon + Glass Fiber The surface is grainy and white gray. Toughness: the material has better strength and better mechanical properties.

Density: 1.26g/cm^3

Working Accuracy:±0.2/100mm

Temperature resistance:162℃

Tensile Strength: 44MPa

Modulus of Elasticity: 3500~7000MPa

Auto parts, household appliances, electromechanical equipment

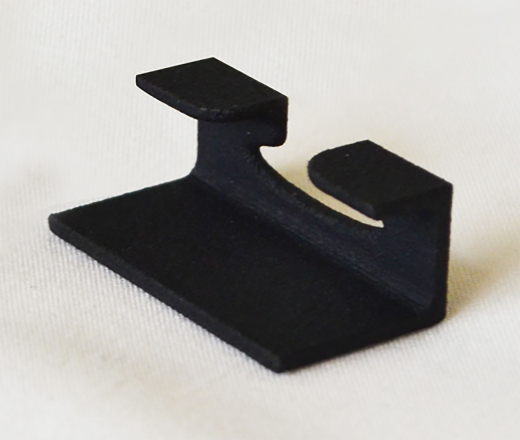

High Performance Nylon The surface is grainy and black. Toughness: good toughness and strength, high fracture ductility.

Density: 1.3g/cm^3

Working Accuracy:0.05~0.1mm

Temperature resistance:175℃

Tensile Strength: 48MPa

Modulus of Elasticity: 1700MPa

Auto parts, household appliances, electromechanical equipment
PLA Polylactic Acid There are line marks on the surface, and the color is optional. Accuracy: poor. Toughness: poor toughness.

Density: 1.24g/cm^3

Working Accuracy:±0.5/100mm

Temperature resistance:56℃

Tensile Strength: 65MPa

Modulus of Elasticity: 1700MPa

Arts and Crafts

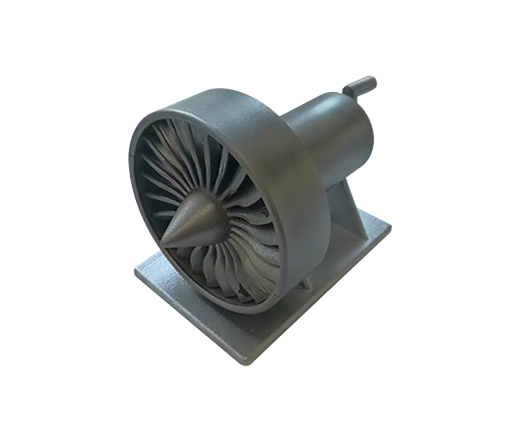

Stainless Steel A316L The surface is grainy and gray. Toughness: excellent corrosion resistance, high temperature resistance and creep resistance.

Working Accuracy:±0.3/100mm

Temperature resistance:1100℃

Auto parts, household appliances, electromechanical equipment

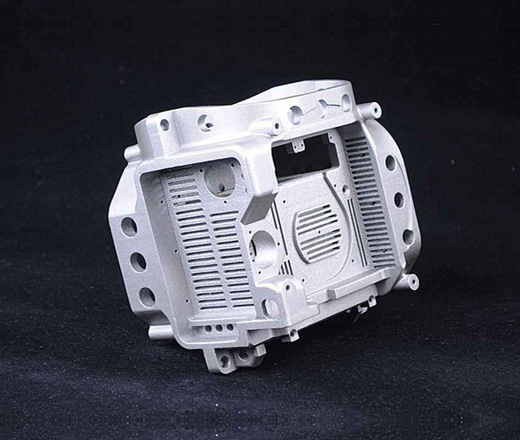

AlSL10mg Aluminum Alloy The surface is grainy and gray. Toughness: good corrosion resistance, good casting performance and wear resistance.

Working Accuracy:±0.3/100mm

Temperature resistance:1200℃

Auto parts, household appliances, electromechanical equipment

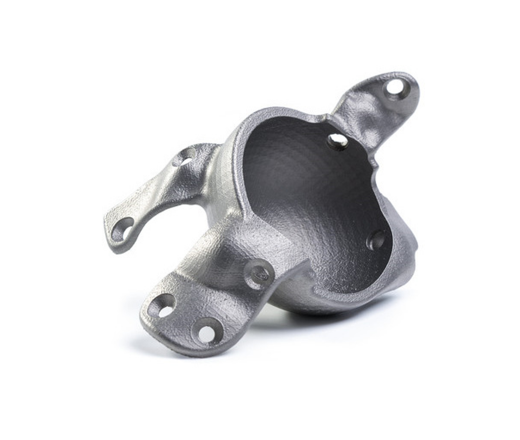

Ti6A14V Titanium Alloy The surface is grainy and gray. Toughness: low strength, high plasticity, high thermal strength, good corrosion resistance and good low temperature performance

Working Accuracy:±0.3/100mm

Temperature resistance:850℃

Automobile, consumer electronics, electromechanical, art
Notice:
  • ● The Elecrow 3D printing online quotation is calculated according to the weight of printing materials, and other processes need to be charged additionally, such as surface treatment, etc
  • ● 3D printing files format supported by Elecrow: step, STP, IGS, IGES, STL, OBJ, 3DS.
  • ● Product details need to provide: product dimension, precision tolerance, quantity, materials, surface treatment and other special requirements.
  • ● The drawing is a composite model, so please clarify what you need, splitting printing or overall printing.
  • ● Properly modify or design the drawing as per customers’ requirements.
Reference and specification
  • Quality: Elecrow makes the commitment that carefully and efficiently process every product complying fully with customers’ requirements. Elecrow regards quality as its first priority. ISO9001 certificate is the basic requirement. Elecrow ensure the proper operation of its quality control system and guarantee the quality of all the products/parts ordered by its Before producing any parts, engineers from Elecrow will check and confirm customer’s 2D drawings and 3D files, making sure there is no mistake or unachievable technical requirements.
  • Lead time: The developing time of online 3D printing service usually takes 1-3 days, while, it’ s finally determined by the products’ complexity.
  • Rework & Refund Policy: Elecrow is also committed to becoming a trust-worthy manufacturing service provider and it has a extreme customer-oriented rework and refund policy. Customers only need to provide the photos or video to show the disparities, Elecrow will take relevant measures to ensure customer satisfaction.
  • Company commitment: Create value for customers, provide the best quality and service, satisfied lead time and after-sales for customers at the best price.

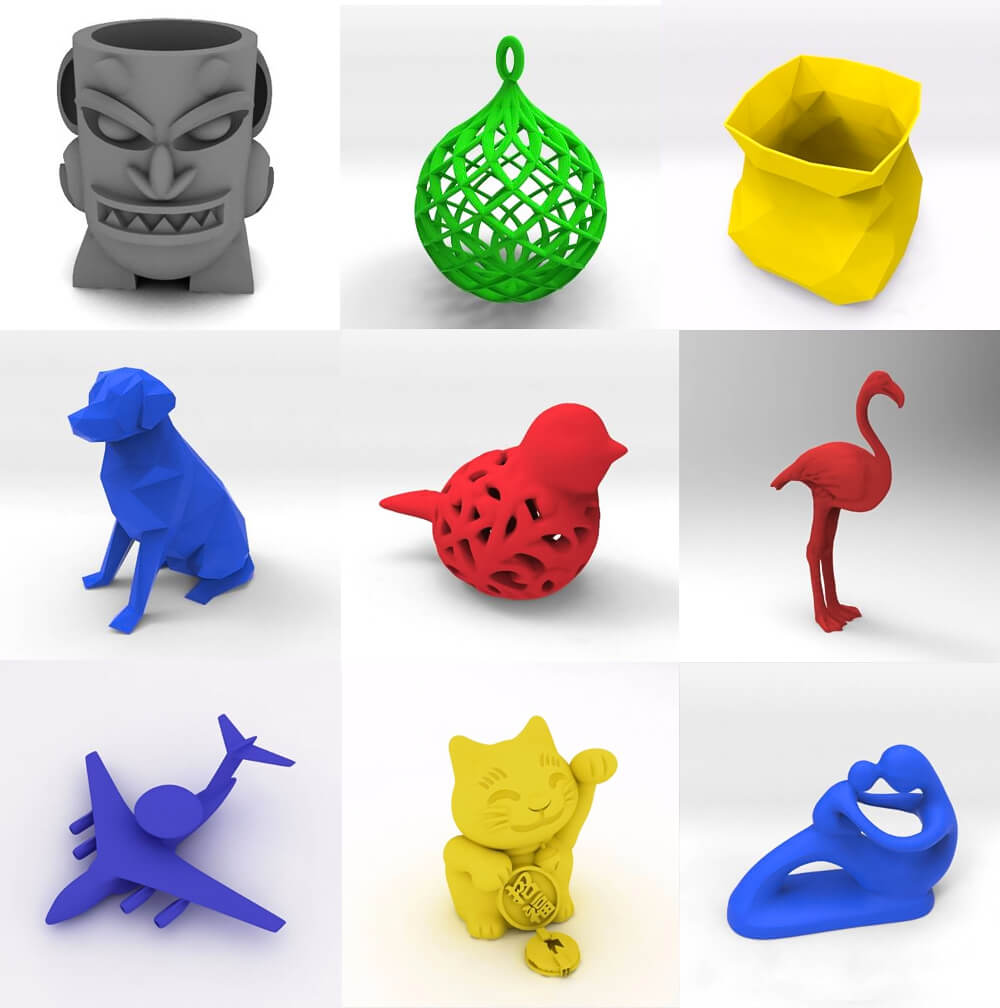

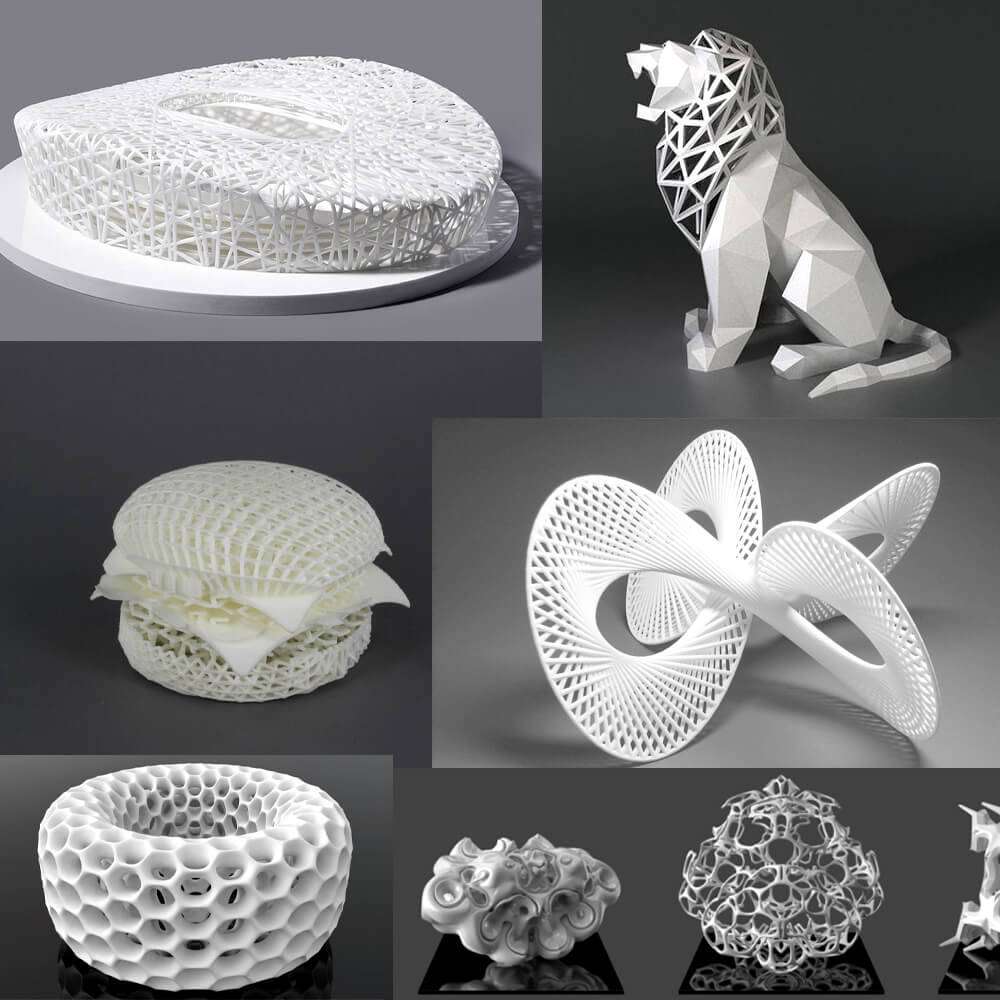

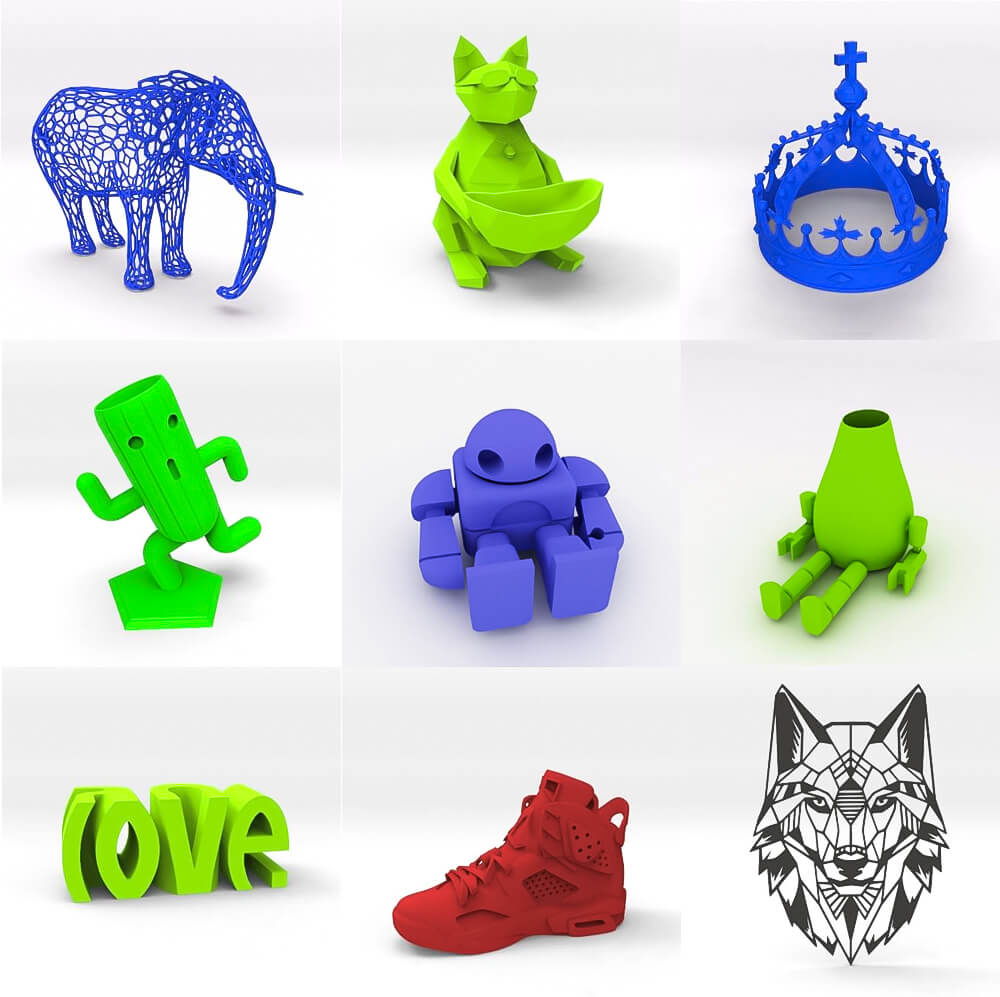

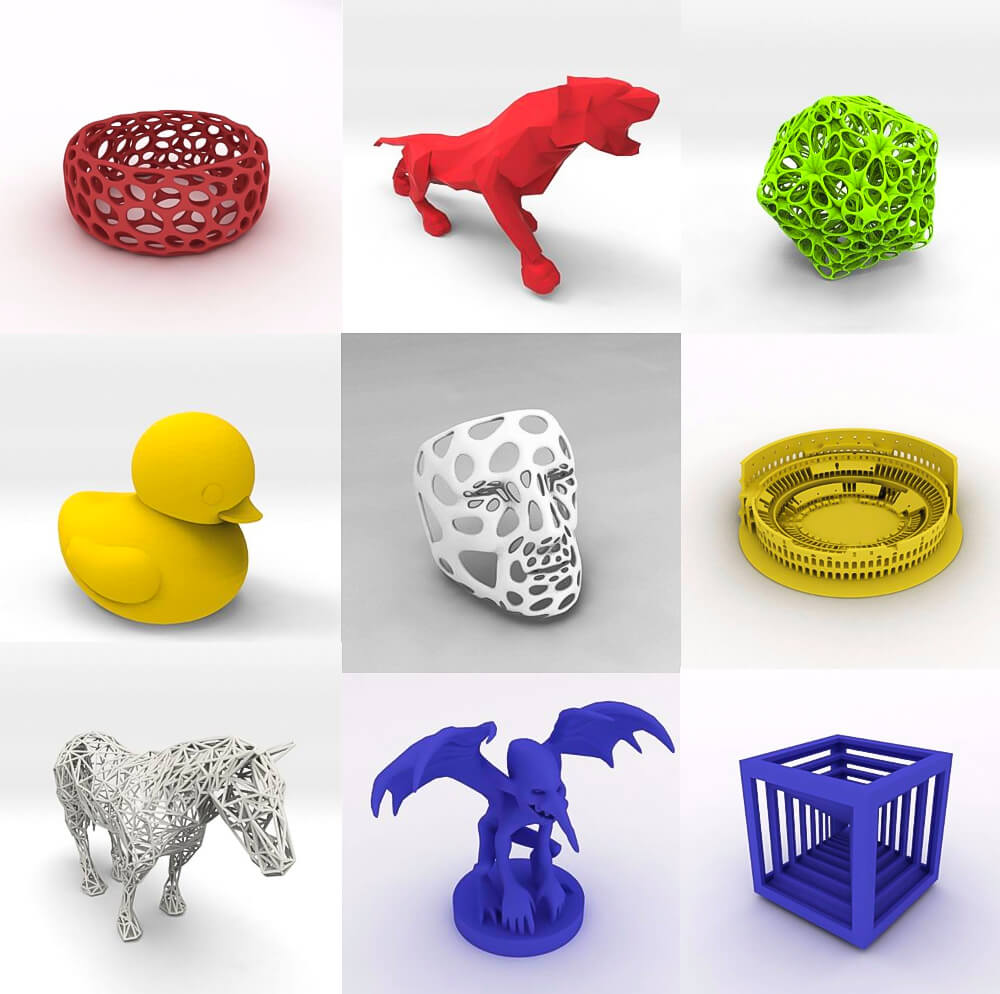

3D printing models display

Just for reference, you can find many free 3D printing files online,or you can design yourself.
