QR Barcode Scanner 1D 2D QR Code Reader TTL/USB/RS232 interface Barcode Scanner Module
$33.40
Availability:
Out of stock
SKU
ACC12032S
Weight
50g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
【Embedded QR Bardcode Scanner】Portable, highly integrated, high-performance QR code scanning module
【Sensitive scanning】Fast scanning speed, high accuracy, can scan a variety of barcode formats
【Easy to use】Easy to use, no programming required, provides serial port and USB output
Description

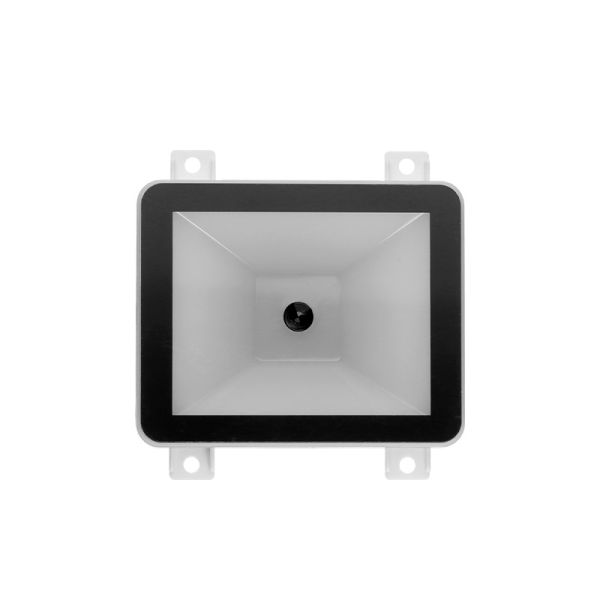

This module is a portable, highly integrated, and excellent-performance embedded QR code/barcode scanning module. The module has a protective lens, which is beautiful and generous. The module is easy to use, without programming, and provides the serial port output and USB output (serial port also includes TTL output and RS232 output interfaces directly connected to the single-chip microcomputer), serial port transparent transmission can directly communicate with various single-chip microcomputers (such as stm32, Arduino-compatible board, 51 single-chip, Raspberry Pi, etc.). The USB interface can be directly connected to the computer for testing, no need to install the driver, and the result can be scanned as long as it is placed at the text cursor position.
This module has a supplementary light, can work in a completely dark environment, has consistent scanning performance over a large temperature range, and can normally work under harsh conditions such as shock, vibration, and strong exposure.
Pin Description
|
Pin |
Input/Output |
Name |
Description |
Color |
|
1 |
Power |
5V |
5v power supply |
Grey |
|
2 |
Ground |
GND |
Ground |
Purple |
|
3 |
Input |
TTLRXD |
TTL serial port RXD, connected to MCU TXD |
Blue |
|
4 |
Output |
TTLTXD |
TTL serial port TXD, connected to MCU RXD |
Green |
|
5 |
Two-way |
D- |
USB D-signal |
Orange |
|
6 |
Two-way |
D+ |
USB D+signal |
Yellow |
|
7 |
Output |
Beep |
Buzzer |
White |
|
8 |
Output |
232_TXD |
232 serial port TXD |
Red |
|
9 |
Input |
232_RXD |
232 serial port RXD |
Black |
|
*Adopt 1mm spacing socket interface, socket specification "SH1.0" |
||||
Feature
- Portable, highly integrated, excellent performance QR code scanning module
- Fast scanning speed, high precision, can scan a variety of barcode formats
- Easy to use, no programming required, serial port and USB output are provided
Specification
- Light Source: LED White Light
- Scanning element type: CMOS
- Recognition barcode accuracy: ≥10mil
- Scan resolution: 640*480
- Pixel camera: 300,000 pixels
- Supports QR code medium: Screen and Paper Barcodes
- Support Barcode type: QR Code, Data Matrix, PDF417, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, UPC-A, Code 39, UPC-E
- Contrast: ≥30%
- Scan angle: Rotate 360°, tilt ±60°, deflect ±60°
- Scanning speed: 98 times/second
- Communication method: Wired communication
- Interface: USB, Serial port
- Prompt way: Buzzer
- Scan mode: Automatic trigger (trigger mode can be set)
- Operating Voltage: 3.3-5VDC±10%
- Working current: 44mA±5%(Typical); 50mA±5%(Max)
- Sleep current: 31-51mA
- Power consumption: 116-223MW
- Operating temperature: 0~50℃
- Storage temperature: -20~60℃
- Dimensions: 64.9*65.8*25mm
- Net weight：35g
Package List
- 1xQR Code Scanner Module
- 1x SH1.0 Cable
