Serial Port Bluetooth Module (Master/Slave)

was $8.90 Special Price $4.45
Availability: Out of stock
SKU
WBT20101B
Weight
7g

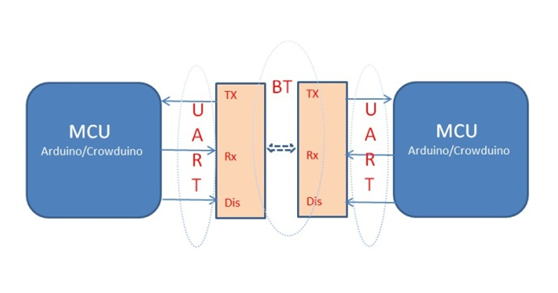

    Serial port Bluetooth module, Drop-in replacement for wired serial connections, transparent usage. You can use it simply to create the wireless Bluetooth connection between your MCU with your embedded project.



Specification

  • Bluetooth protocal: Bluetooth Specification v2.0+EDR
  • Frequency: 2.4GHz ISM band
  • Modulation: GFSK(Gaussian Frequency Shift Keying)
  • Emission power: +4dBm, Class 2
  • Sensitivity: -80dBm at 0.1% BER
  • Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
  • Security: Authentication and encryption
  • Profiles: Bluetooth serial port
  • Power supply: +3.3VDC 50mA
  • Working temperature: -20 Degree ~ +75 Degree
  • Dimension: 26.9mm x 13mm x 2.2 mm

Application

  • Computer and peripheral devices
  • Remote controls

Package list

  • Serial Port Bluetooth Module x1
