ESP8266 Oled Display

ESP8266 Oled Display

  • thumbnail-img


Story

Submitted this design for the Hackaday 1" Board challenge. The hardware is an ESP-01 ESP8266 Wifi module, linear power supply, microUSB connector and a few oled display parts.



Grab the PCB here: https://oshpark.com/shared_projects/tiyMX4KW



Grab the code here: https://github.com/mike-rankin/ESP8266_OLED_Display



See the Assembly steps here: https://0miker0.wordpress.com/microusb-powered-esp8266-oled-board/



More Code on GitHub: https://github.com/mike-rankin/ESP8266_OLED_Display/tree/master.This project is reposted with the approval of this project creator. He is a good DIY maker who designs custom ESP32 IoT projects using Altium Designer, Arduino IDE and Fusion360. Welcome everyone to follow him. This is his GitHub account, Mike Rankin, where you will explore more excellent projects.

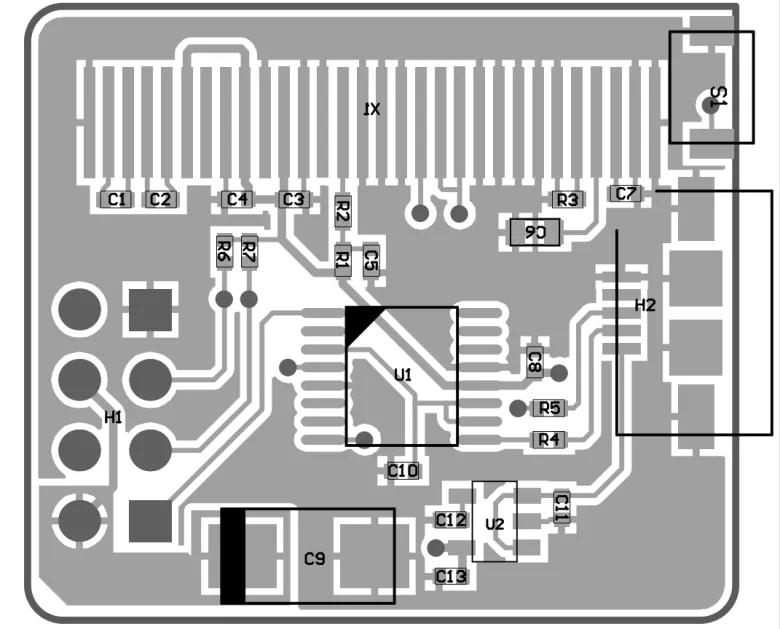

Schematic and Layout
