Smart Doorbell Adapter – Module for Standard Wired Doorbells

Turn any wired doorbell into a smart Home Assistant trigger! This PCB uses a D1 Mini and optocoupler to detect the bell press directly from the existing transformer, no additional power needed. Fully isolated and ESPHome-ready—just wire it in and go.

Smart Doorbell Adapter – Module for Standard Wired Doorbells

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • EspHome

    fenxiang

  • Home Assistant

    Open Source
    fenxiang

Story

This PCB allows you to convert a standard wired doorbell into a smart device using a D1 Mini (ESP8266) and an optocoupler, without requiring any additional power supply. The built-in bridge rectifier enables operation directly from the doorbell transformer’s AC output (~8 VAC). Once the doorbell is pressed, the module detects the signal and can trigger automations in Home Assistant via ESPHome.



📌 Highlights:

✅ No extra power required – uses existing doorbell transformer
✅ Safe signal isolation via optocoupler
✅ D1 Mini (ESP8266) compatible with ESPHome
✅ Compatible with most wired doorbells

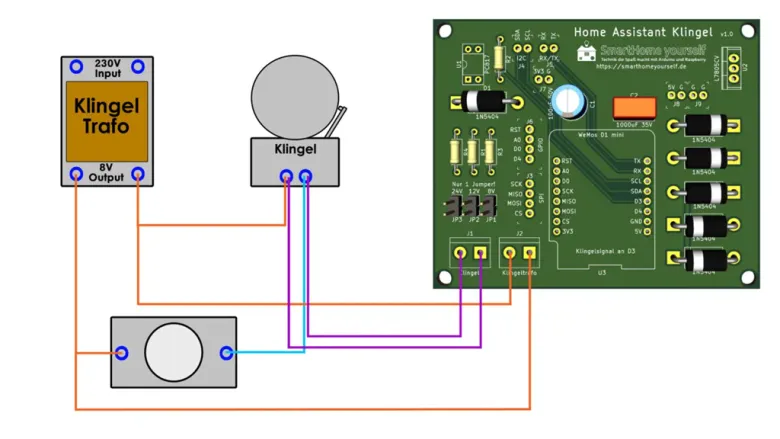

✅ Easy installation – just connect transformer and bell wires
✅ Includes schematic and ESPHome config

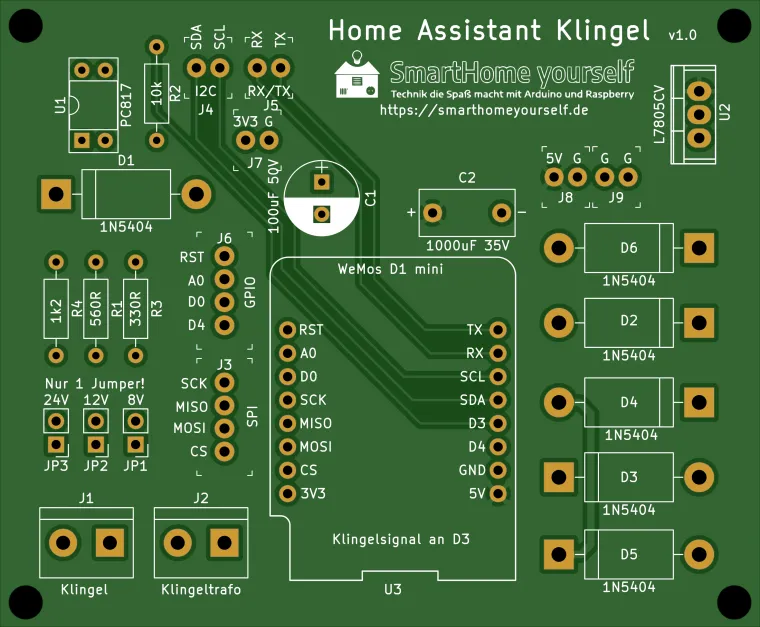

✅ PCB layout tailored for seamless integration





📌Full build guide and source files here:

👉 https://smarthomeyourself.de/standard-klingel-smart-machen





Video


https://youtu.be/RVVDfOkP3Do



Code

  • ESPHome Code

    https://smarthomeyourself.de/hc_downloads/klingel_esphome.txt
