UWB Indoor Position Module BU01

SKU
DPW01041U
Weight
1
In stock
$34.99
-
+
Overview

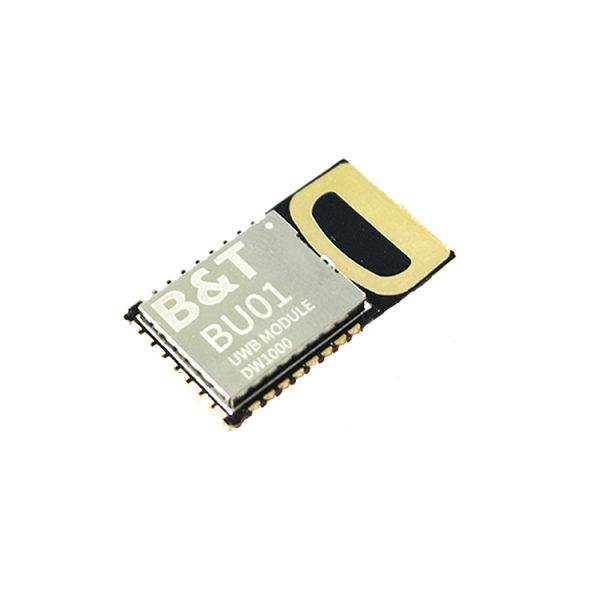

BU01 is an ultra wideband (UWB) transceiver module based on Decawave's DW1000 design. The module integrates antennas, all RF circuits, power management and clock modules.It can use two-way ranging or TDOA positioning system, positioning accuracy of 10cm, data transmission rate of up to 6.8Mbps.

BU01 is an ultra wideband (UWB) transceiver module based on Decawave's DW1000 design. The module integrates antennas, all RF circuits, power management and clock modules.It can use two-way ranging or TDOA positioning system, positioning accuracy of 10cm, data transmission rate of up to 6.8Mbps, widely used in nursing homes, parking lots and other fields.

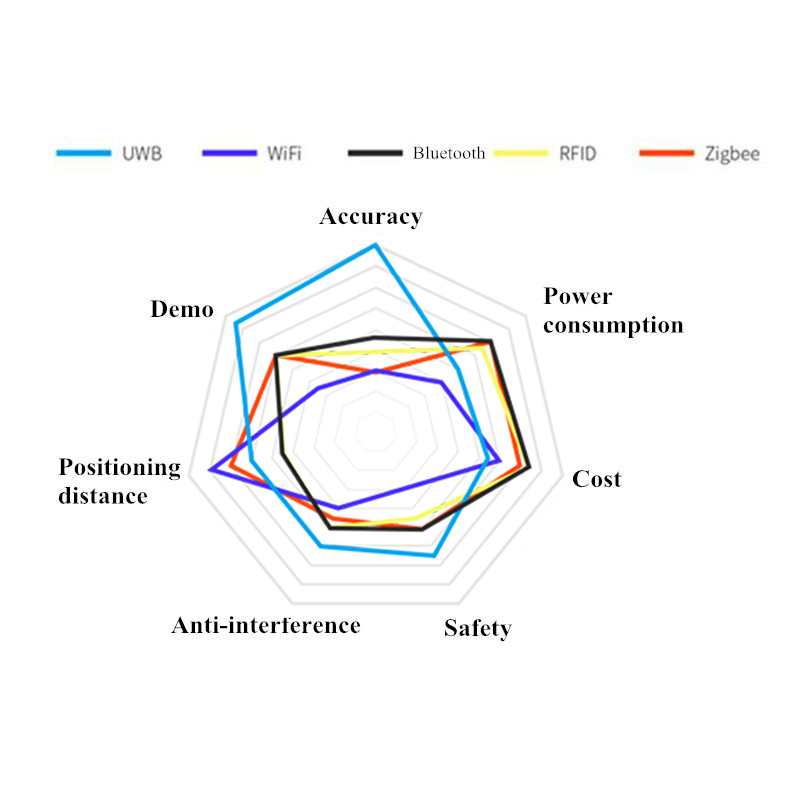

UWB positioning technology has significant advantages such as large system capacity, fast transmission speed, low transmission power, high multi-path resolution, good system confidentiality, high positioning accuracy, and strong penetrating ability.

Specification

Size

23*13*2.9(±0.2)MM

Protocol standard

SPI

Spectrum range

3.5-6.8GHZ

Antenna form

PCB antenna on board, transmission distance is about 40 meters

Transmit power

802.11b:16±2dbm;802.11g:16±2dbm;802.11n:16±2dbm

Power supply range

Power supply range

Power supply range

-40 ~ + 85 degree



Package list

1 x UWB Indoor Position Module BU01
