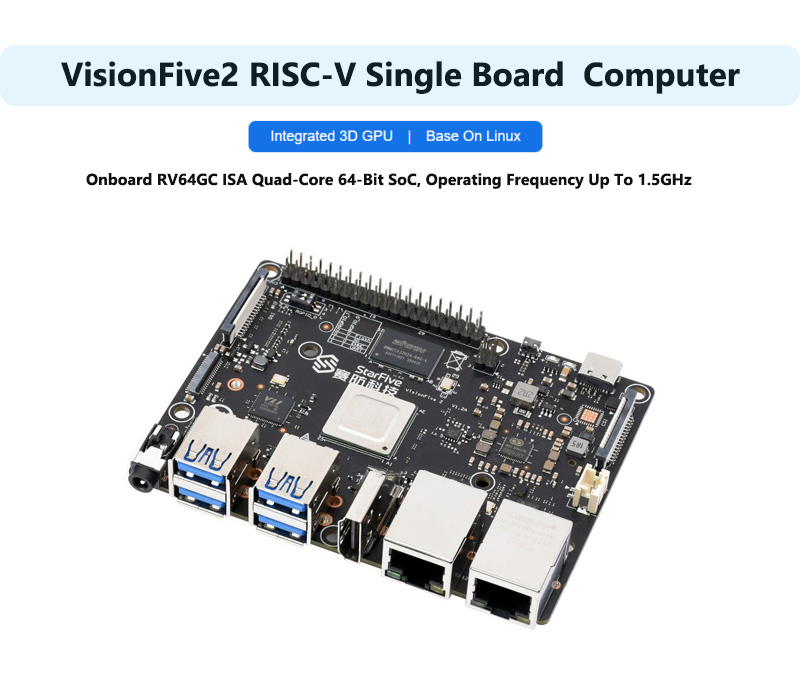

Description

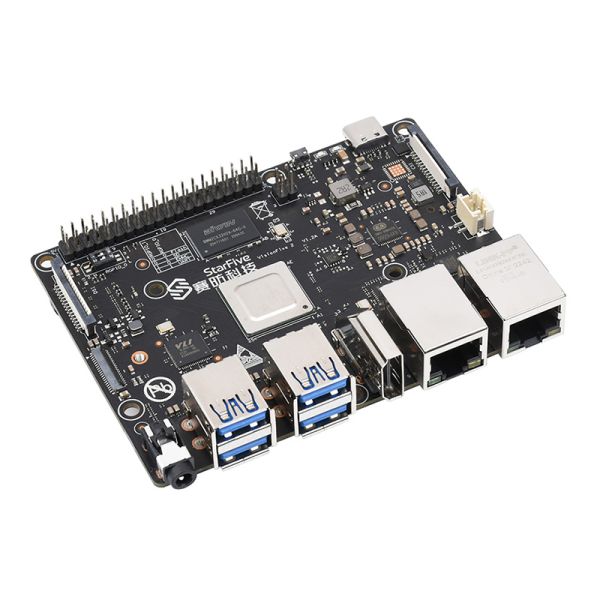

VisionFive 2 is the world's first high-performance RISC-V single-board computer (SBC) with an integrated GPU. Its outstanding performance and reasonable price make it the most affordable RISC-V development board ever.
The VisionFive 2 features a quad-core 64-bit SoC with RV64GC ISA, running at a clock speed of up to 1.5 GHz, and is equipped with the IMG BXE-4-32 MC1, supporting OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2. It offers options for 4/8 GB LPDDR4 RAM, and provides a rich set of I/O peripherals such as M.2 connector, eMMC socket, USB 3.0 ports, 40-pin GPIO header, Gigabit Ethernet port, TF card slot, and more.
The VisionFive 2 has onboard audio and video processing capabilities, and features MIPI-CSI and MIPI-DSI connectors as multimedia peripherals. The open-source SBC also offers extensive software compatibility, including support for Debian, Ubuntu, OpenSUSE, OpenKylin, OpenEuler, Deepin, and other software running on these operating systems.
Operating System
VisionFive 2 support for Debian, Ubuntu, OpenSUSE, OpenKylin, OpenEuler, Deepin, and other software running on these operating systems.
More Possibilities
Visionfive2 has powerful performance, open source environment, and abundant software ecology, providing more possibilities.
Application Examples
|
|

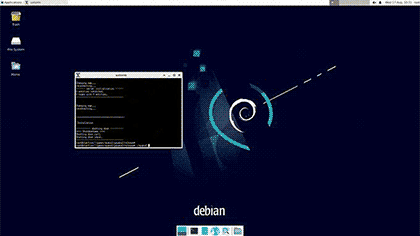

Quake 3D |
MANE emulator |
|
|

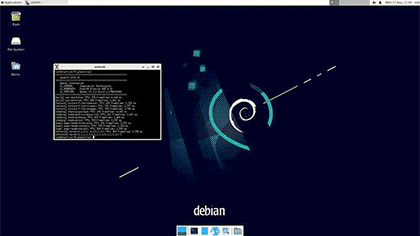

GLMark2 |

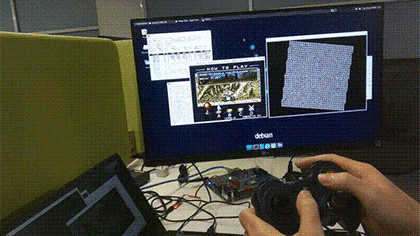

Run multiple programs simultaneously |

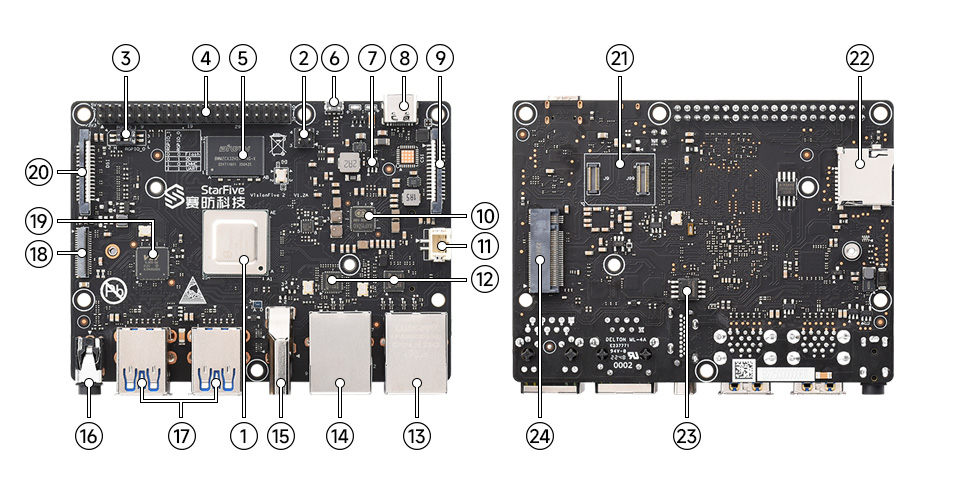

Onboard Resources
1.JH7110 |
13.Gigabit Ethernet port(with PoE function) |
2.PoE Port |
14.Gigabit Ethernet port |
3.Boot mode selection |
15.HDMI 2.0 port |
4.40Pin GPIO |
16.3.5mm Aduio Jack |
5.4GB LPDDR4 SDRAM |
17.USB 3.0 Ports |
6.Reboot button |
18.4-lane MIPI DSI |
7.EEPROM |
19.USB 3.0 Host chip |
8.Type-C power port |
20.2-lane MIPI DSI |
9.2-lane MIPI CSI |
21.eMMC Socket |
10.PMIC |
22.TF card slot |
11.2PIN FAN header |
23.QSPI Flash |
12.Gigabit Ethernet Chip |
24.M.2 M-Key |
Pin Diagram
Pin Name |
40Pin GPIO |
Pin Name |
|
Feature
- Equipped with RV64GCqUAD-core 64-bit SoC, operating frequency up to 1.5GHz.
- Abundant onboard interfaces, such as M.2, CSI, DSI, HDMI, eMMC, USB 3.0, 40PIN GPIO, RJ45 Gigabit Ethernet, and a TF card slot, make it convenient to use
- Supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2
- Supports multi-channel video decoding at 4K@60fps and H264/H265, as well as multi-channel video encoding at 1080p@30fps and H265
- Features a 40PIN GPIO interface that is compatible with Raspberry Pi series
- Open-source SBC provides extensive software compatibility, including support for Debian operating system
Specification
Processor |
StarFive JH7110 |
CPU |
RISC-V U74 Quad-core 64-bit RV64GC ISA SoC |
GPU |
IMG BXE-4-32 MC1, operating frequency up to 600MHz |
MEMORY |
4GB/8GB Optional |
CAMERA |
MIPI CSI 2lane 1080p@30fps |
DISPLAY |
|
USB HOST |
4 × USB 3.0 Type-A port |
USB DEVICE |
1 × USB Device (multiplexed with the USB Type-C port) |
NETWORKING |
2 × Gigabit Ethernet port (1-ch with PoE function) |
RESET BUTTON |
Press the reset button to reboot when in the U-boot mode; |
DEBUG PIN HEADERS |
Multiplex pin 8 and pin 10 (physical address) on the 40PIN header, for UART TX and UART RX functions |
USB TYPE-C POWER PORT |
|
OTHER POWER SUPPLY |
5V input via 40PIN GPIO header |
OTHER INTERFACES |
|

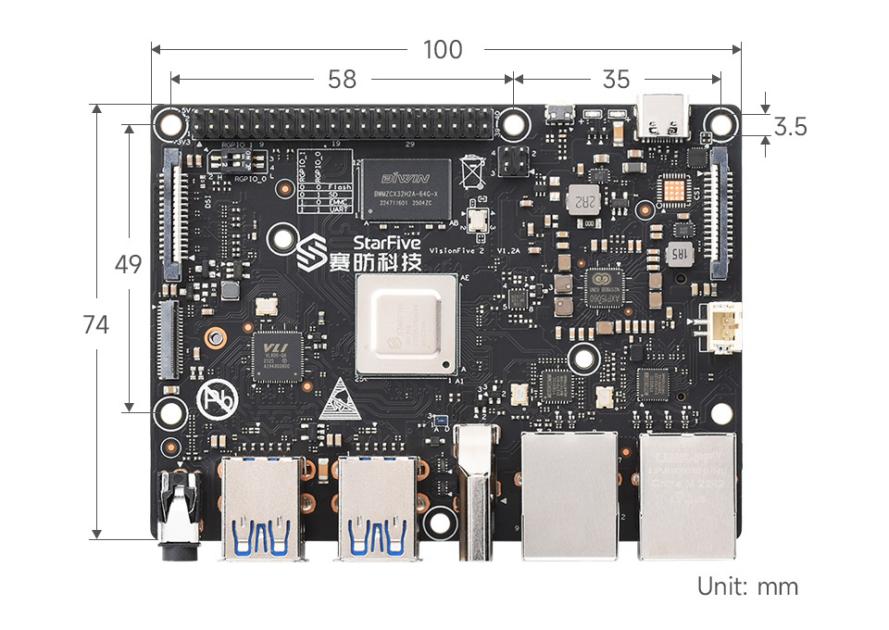

DIMENSIONS |
100 × 74 × 21mm |
RECOMMENDED OPERATING AMBIENT TEMPERATURE |
0~50℃ (If the operating temperature of the chip exceeds 85°C, the frequency and voltage of the CPU will be automatically reduced for cooling) |
Package List
- 1x VisionFive2 Single Board 4GB/8GB
- 1x WiFi Module
Wiki & External links
