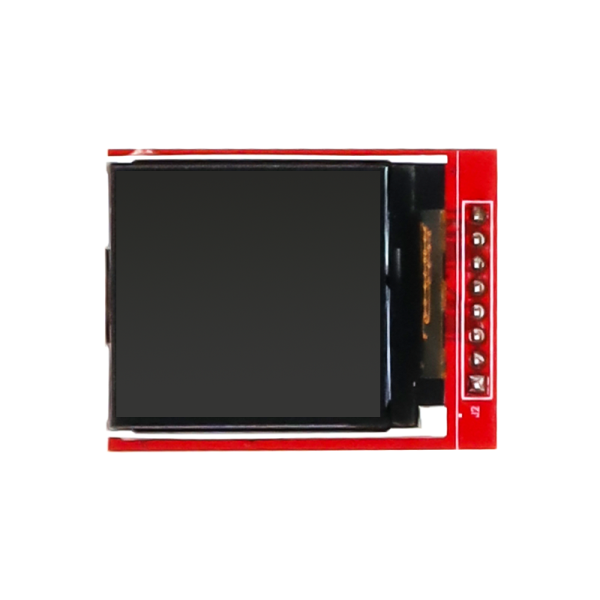

1.44" 128x 128 TFT LCD with SPI Interface

Model : DL144128TF

Initial Weight : 25.00g

$6.80

Availability: In stock

Qty:
    This Color TFT LCD display has 128 x 128 resolution and 262 color, it uses SPI interface to communicate with controller such Arduino, it is the best upgrading of the Nokia5110.

Features

  • Size: 1.44 inch
  • Interface:SPI
  • Resolution: 128*128
  • Visual area: 1:1 square
  • TFT color screen, the effect is far better than other small CSTN screen
  • Drive IC: ILI9163
  • Fully compatible and alternative 5110 interface
  • Onboard LDO, support 5V/3.3V input voltage, the LED backlight, 3.3V input



Download& External Link

Estimate Shipping

Enter your destination to get a shipping estimate.

Customer Reviews

1 Item(s)

per page
Inexpensive but fast! Review by garlinto
Price
Value
Quality
I bought two of these displays to embed in projects, and was having no success getting them to work until I discovered that these boards are NOT driven by the ILI9163C chip, but instead utilize the ST7735 display driver chip. The author of the TFT_ILI9163C library also has a TFT_ST7735 library you can download at https://github.com/sumotoy/TFT_ST7735/tree/1.0p1 . It hasn't been updated in nearly a year, but after downloading the lib and running the Benchmark example, both displays work as expected and are super fast using a Teensy3.x. For reference, the displays I received have "V2.1" on the PCB. Go to https://github.com/sumotoy/TFT_ILI9163C/wiki to learn about the various PCB versions of this display and to download the correct library. (Posted on 5/26/2017)

1 Item(s)

per page

Only registered users can write reviews. Please, log in or register
