In the complex world of modern electronic design, the Printed Circuit Board (PCB) serves as the fundamental platform for interconnecting electronic components. Before any innovative electronic product enters mass production, it must undergo a critical and rigorous phase: the fabrication and validation of a PCB Prototype. This process, known as PCB Prototyping, is not merely the creation of a sample; it is the first physical verification of a design's theory and a crucial factor determining the final product's performance, reliability, and time-to-market. This document provides an engineer's perspective on the technical details of the entire PCB Prototype journey, from design files to a functional finished product, covering both bare board fabrication and component assembly.
This is the starting point of the PCB prototyping process and the first critical checkpoint. Client-provided Gerber and drill files are subjected to an in-depth Design for Manufacturability (DFM) check by CAM engineers. This review verifies that parameters such as trace width/spacing, annular rings, and solder mask bridges are within the factory's process capabilities. Upon approval, engineers perform panelization, apply process compensations, and generate all necessary manufacturing data, including phototools and CNC drill programs.
For a multi-layer PCB Prototype, the process begins with the inner layers. Copper Clad Laminates (CCL) like FR-4 are cut to size. The circuit pattern is then transferred onto the copper surface through a sequence of dry film lamination, UV exposure, and developing. Subsequently, excess copper is removed in an etching solution, forming the precise inner layer circuitry. Finally, Automated Optical Inspection (AOI) is used to ensure the inner layers are free of any open or short circuits.
The etched inner layers, sheets of prepreg (partially cured epoxy resin), and outer layer copper foils are precisely aligned and stacked according to the design's layer stack-up. This "book" is then placed into a lamination press, where, under high temperature and pressure, the prepreg resin melts, flows, and cures, bonding all layers into a single, solid board. This is a core process for manufacturing a multi-layer printed circuit board prototype.
High-speed CNC drilling machines create vias, plated-through holes (PTH), and other required holes in the laminated board. For High-Density Interconnect (HDI) PCB Prototypes, laser drilling is employed to create microvias. Post-drilling processes, including deburring and chemical desmear, are essential to clean the hole walls in preparation for metallization.
This step is critical for establishing inter-layer electrical connections. First, an electroless copper plating process deposits a very thin, conductive copper layer onto the non-conductive hole walls. This is followed by panel plating, an electrolytic process that adds a thicker layer of copper over the entire board surface and within the holes, providing a robust base for subsequent pattern plating.
This is achieved using a "pattern plating" method. A dry film resist is applied and imaged on the outer layers. Copper is then electrolytically plated onto the exposed areas (the desired circuit pattern and holes), followed by a protective layer of tin. After stripping the dry film, the board is etched; the tin protects the desired copper pattern while the unwanted background copper is removed. Finally, the tin is stripped, revealing the final outer layer circuitry.
To protect the copper traces from oxidation and prevent solder bridges during assembly, a layer of Liquid Photoimageable (LPI) solder mask is applied to the surface of the PCB Prototype. Through UV exposure and developing, the solder mask is precisely removed from all pads intended for soldering. The mask is then thermally cured to form a hard, durable insulating layer.
Component designators, part numbers, and logos are printed onto the solder mask layer using screen printing or digital inkjet printing. This legend provides clear guidance for the subsequent PCB prototype assembly stage.
Exposed copper pads will oxidize, impairing solderability. Therefore, a surface finish is required. Common finishes offered by a PCB prototype service include Hot Air Solder Leveling (HASL), Electroless Nickel Immersion Gold (ENIG), and Organic Solderability Preservative (OSP). ENIG is a preferred choice for high-end PCB Prototypes due to its excellent flatness and solderability.
To guarantee there are no open or short circuits, every PCB Prototype must undergo 100% electrical testing. For samples and small batches, the flying probe test is typically used for its flexibility and efficiency in verifying the connectivity of every net.
The large production panel is separated into individual boards using CNC routing or V-scoring. A final quality control (FQC) inspection is then performed to verify dimensional accuracy, appearance, cleanliness, and compliance with industry standards such as IPC-A-600.
After fabricating a high-quality bare board, the next critical stage is assembly. The goal is to accurately solder electronic components onto the prototype board, transforming it into a functional Printed Circuit Board Assembly (PCBA). Before detailing the process steps, we must first address a crucial prerequisite: materials science and management.
In PCB prototype assembly, any material can become a weak link. Improper material selection or management can lead to soldering defects, degraded electrical performance, or complete prototype failure, resulting in flawed design validation conclusions.
The quality of the solder stencil directly impacts paste deposition. Laser-cut stainless steel stencils are standard for PCB Prototypes. For ultra-fine-pitch components, advanced features like electropolishing or nano-coatings on the aperture walls can significantly improve paste transfer efficiency.
Strict management of these materials is an absolute prerequisite for a successful assembly process.
---
This stage ensures all inputs are correct. Engineers perform a final verification of the Bill of Materials (BOM) against the PCB layout. For a Turnkey PCB prototype service, all components are procured and undergo Incoming Quality Control (IQC) to check for authenticity, MSL compliance, and lead oxidation. A high-precision solder stencil is fabricated based on the PCB pad data and component requirements.
Step 14: Surface Mount Technology (SMT)For THT components like connectors, high-quality manual soldering by skilled technicians is common for PCB Prototypes. Alternatively, selective soldering may be used, which employs a miniature solder nozzle to solder individual THT joints without exposing nearby SMT components to excessive heat.
Depending on the flux type used, the board may undergo a cleaning process. A thorough inspection follows:

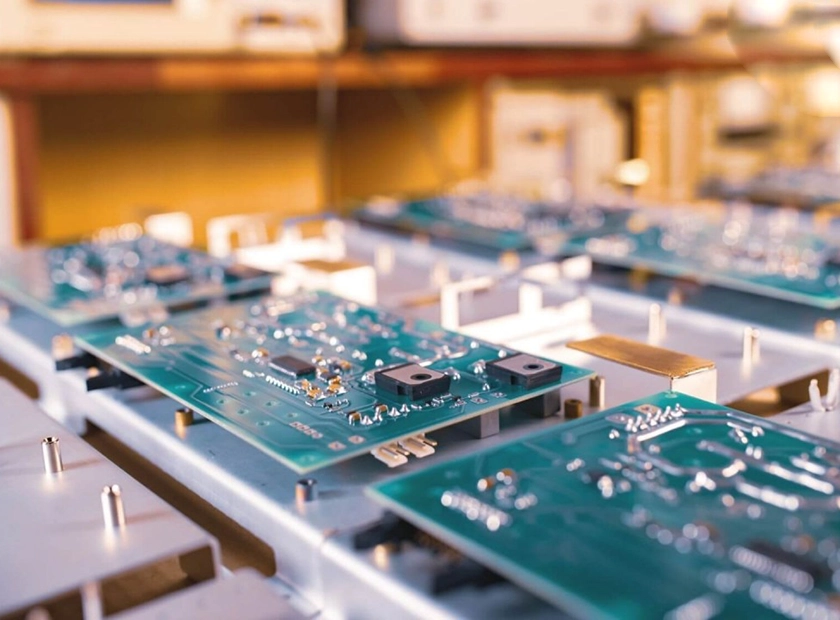

At this stage, the PCBA is tested for functionality (Functional Circuit Test - FCT) using a test jig that simulates its operational environment. The necessary firmware is then programmed into the onboard microcontrollers or memory. A functionally complete PCB Prototype module is now ready for design validation.
The creation of a PCB Prototype is a precision engineering endeavor that spans both fabrication and assembly. It is an integration of materials science, mechanical precision, and electronic engineering. Every step—from the lamination and etching of the bare board to the precise management of materials like solder paste and components during assembly—decisively impacts the final product's performance and reliability. A thorough understanding of this entire technical chain, from materials to the final functional unit, is fundamental for engineers to design superior products and make informed decisions when selecting PCB prototype manufacturing and assembly services, thereby efficiently and reliably transforming innovative concepts into reality.
