CANBed RP2040 - Arduino CAN Bus RP2040 Dev Kit

Rating:
0% of 100
SKU
CQR10204K
Weight
67 g
Availability
In stock
$15.90
-
+



CANBed RP2040 is a CAN Bus development board featuring a Raspberry Pi RP2040 chip with a high-performance MCP2515 CAN controller and MCP2551 CAN receiver operating at CAN2.0 protocols at a clock speed of 133MHz. The board has a flexible CAN interface that can be used with a 4-pin terminal or a DB9 connector. The DB9 connector can be used in OBD-II mode by default, and the hardware can also be configured for CAN open mode. The board has a rich set of interfaces, including a Micro-USB connector that can be used for programming instead of power, as well as I2C, UART, SPI, 3 analog input interfaces, and 8 digital I/Os, along with 2MB of flash memory and 264KB of RAM, making it suitable for a wide range of embedded applications.



The CAN interface is flexible, allowing you to use either a 4-pin terminal or a DB9 connector. The DB9 connector uses OBD-II mode by default, but you can also configure the hardware for CAN open mode. The voltage input range for the CAN interface is 9-28V, and it provides a stable 3.3V/1A output.



If you want to use this board to develop OBD-related applications, click here to get a DB9 to OBD-II cable.



This product has been certified by CE and FCC, and you can download the certificate in the Preferences section.



We have just released a new CANBed with an aluminum alloy case. If your product needs a casing, we recommend you check out this new product.

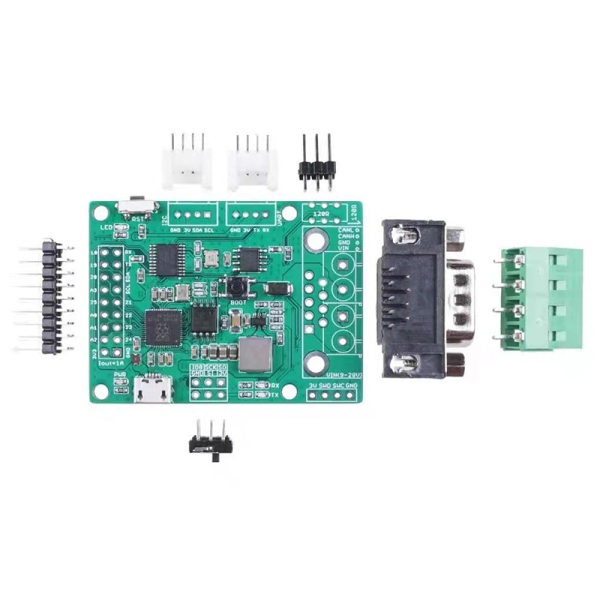

Part List:





The following items are included in the package:



1. CANBed RP2040 PCBA x1

2. Sub-D connector x1

3. 4-pin Terminal x1

4. HY2.0 4-pin Connector x2

5. 9x2 2.54 Header x1

6. 3x2 2.54 Header x1

7. 6-pin switch x1




Features:





  • A powerful Raspberry Pi RP2040 processor
  • The ability to implement CAN V2.0B at speeds up to 1 Mb/s
  • An industrial standard 9-pin sub-D connector or a 4-pin terminal
  • The option to use either OBD-II or CAN standard pinout on the sub-D connector
  • Compatibility with the HY2.0 4-pin connector
  • An SPI interface that supports standard (11 bit) and extended (29 bit) data frames, as well as remote frames
  • The ability to accept power input from 9 to 28V




Specifications:



  • MCU: Raspberry Pi RP2040
  • Clock Speed: Flexible, up to 133 MHz
  • Flash Memory: 2MB
  • RAM: 264KB
  • Operating Voltage: 9-28V
  • Operating Current: 1A
  • Input Interface: Sub-D connector




Pinouts:






ECCN/HTS:



  • HSCODE: 8543709990
  • USHSCODE: 8517620090




Peferences:








Certification



This product has been certified by CE and FCC, and you can download the certificate in the Preferences section.





Longan Labs
China
Longan Labs is an innovative company based in Shenzhen, China, dedicated to providing low-cost and reliable open-source CAN Bus modules for global makers.
