ESP32-C6-WROOM-1U module with Wi-Fi BLE

Rating:
100 % of 100
$4.60
Availability: In stock
SKU
DEM02223U
Brand
elecrow
Weight
6g

【ESP32-C6-WROOM-1U】Supports Wi-Fi, IEEE 802.15.4 and Bluetooth LE connections, providing various wireless communication options.

【Powerful processing capability】Equipped with ESP32-C6 chip and RISC-V 32-bit single-core processor, it has excellent processing performance.

【Rich peripheral interfaces】Provides various peripheral interfaces such as SPI, UART, I2C, etc., and supports up to 23 GPIO pins to facilitate seamless integration with other devices and sensors.

【Wide range of applications】Widely used in smart homes, industrial automation and other fields, providing developers and engineers with an ideal choice for creating innovative and connected products.

Description

The ESP32-C6-WROOM-1U module is a versatile wireless module that supports Wi-Fi, IEEE 802.15.4, and Bluetooth LE connectivity. It offers a range of powerful features to meet various application needs. The module is equipped with the ESP32-C6 chip, which features a RISC-V 32-bit single-core processor.The module provides a rich set of peripherals, including SPI, UART, I2C, and up to 23 GPIO pins, enabling seamless integration with other devices and sensors. This versatility makes it well-suited for a wide range of applications such as smart homes, industrial automation, healthcare systems, and consumer electronics.

With its high-performance capabilities and reliable wireless connectivity, the ESP32-C6-WROOM-1U module offers an excellent solution for developers and engineers seeking to create innovative and connected products.

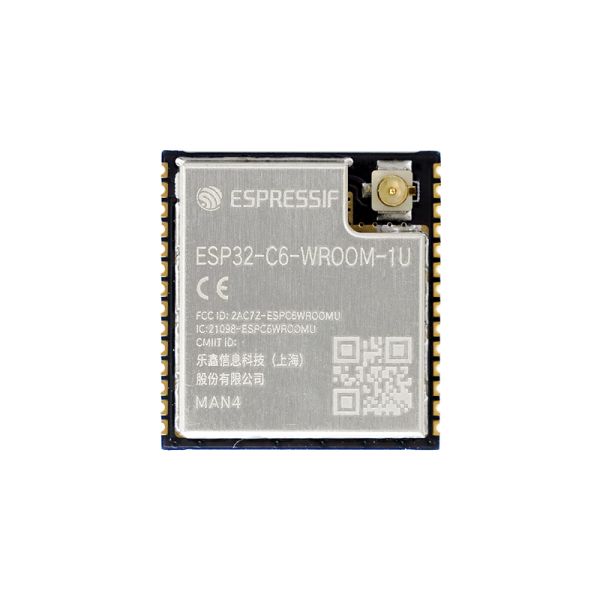

Compared to the ESP32-C6-WROOM-1, the ESP32-C6-WROOM-1U removes the onboard antenna. On the one hand, this change reduces the module's size, making it more suitable for smaller products. On the other hand, it introduces an IPEX interface, which allows users to connect an external antenna with stronger gain. This enhancement enables longer-distance signal transmission.

Block Diagram

block diagram of ESP32-C6 module

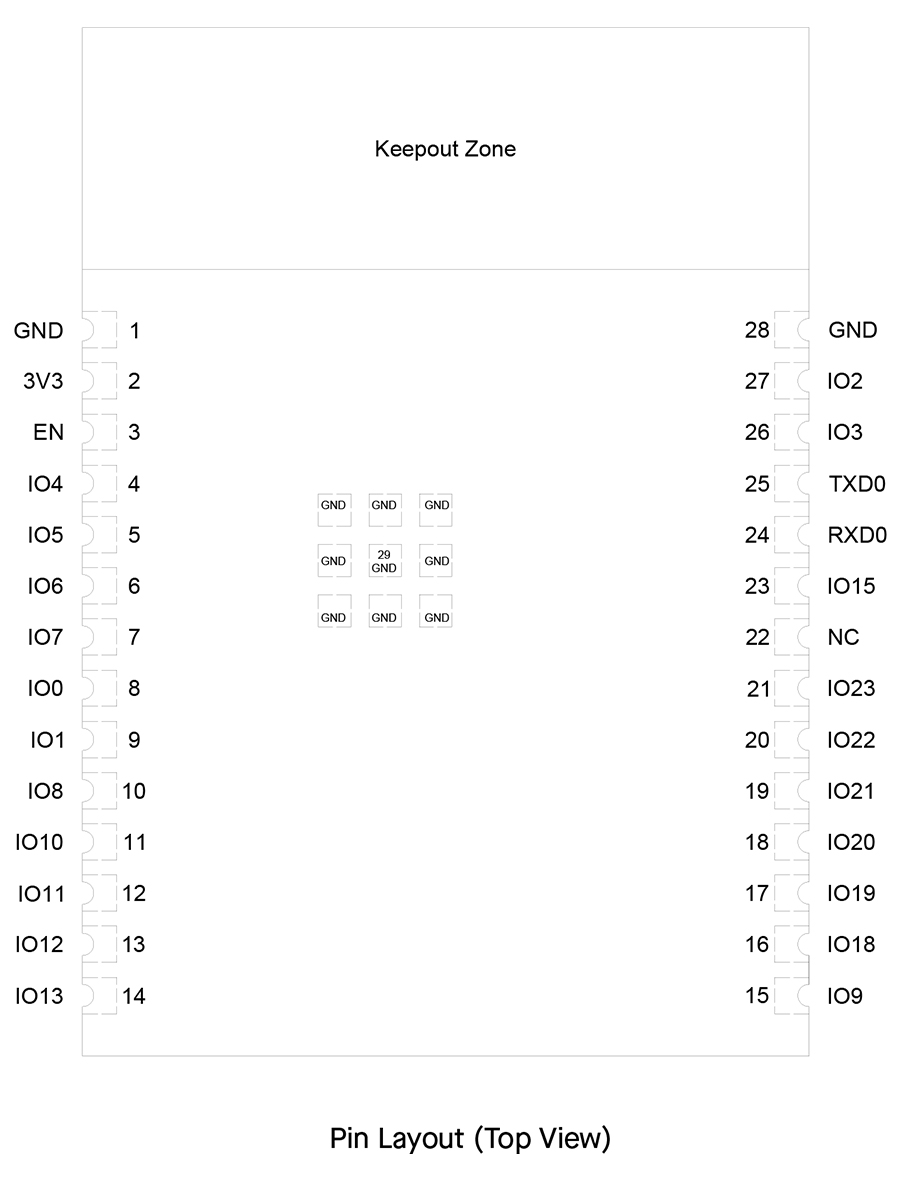

Pin Layout(Top View)

Pin Layout of ESP32-C6 module

Schematics

schematics of ESP32-C6 module

Pin Description

Name

No.

Type

Function

GND

1

P

Ground

3V3

2

P

Power supply

EN

3

I

High: on, enables the chip.

Low: off, the chip powers off.

Note: Do not leave the EN pin floating.

IO4

4

I/O/T

MTMS, GPIO4, LP_GPIO4, LP_UART_RXD, ADC1_CH4, FSPIHD

IO5

5

I/O/T

MTDI, GPIO5, LP_GPIO5, LP_UART_TXD, ADC1_CH5, FSPIWP

IO6

6

I/O/T

MTCK, GPIO6, LP_GPIO6, LP_I2C_SDA, ADC1_CH6, FSPICLK

IO7

7

I/O/T

MTDO, GPIO7, LP_GPIO7, LP_I2C_SCL, FSPID

IO0

8

I/O/T

GPIO0, XTAL_32K_P, LP_GPIO0, LP_UART_DTRN, ADC1_CH0

IO1

9

I/O/T

GPIO1, XTAL_32K_N, LP_GPIO1, LP_UART_DSRN, ADC1_CH1

IO8

10

I/O/T

GPIO8

IO10

11

I/O/T

GPIO10

IO11

12

I/O/T

GPIO11

IO12

13

I/O/T

GPIO12, USB_D

IO13

14

I/O/T

GPIO13, USB_D+

IO9

15

I/O/T

GPIO9

IO18

16

I/O/T

GPIO18

IO19

17

I/O/T

GPIO19

IO20

18

I/O/T

GPIO20

IO21

19

I/O/T

GPIO21

IO22

20

I/O/T

GPIO22

IO23

21

I/O/T

GPIO23

NC

22

-

NC

IO15

23

I/O/T

GPIO15

RXD0

24

I/O/T

U0RXD GPIO17 FSPICS1

TXD0

25

I/O/T

U0RXD GPIO16 FSPICS0

IO3

26

I/O/T

GPIO3, LP_GPIO3, LP_UART_CTSN, ADC1_CH3

IO2

27

I/O/T

GPIO2, LP_GPIO2, LP_UART_RTSN, ADC1_CH2, FSPIQ

GND

28

P

Ground

EPAD

29

P

Ground

Noted: P: power supply; I: input; O: output; T: high impedance.



Feature

  • Equipped with RISC-V 32-bit single-core processor, the operating frequency is up to 160 MHz with 320 KB ROM,512 KB SRAM
  • Support IEEE 802.11ax protocol, IEEE 802.11 b/g/n-compliant
  • Support Bluetooth BLE 5
  • Rich peripheral interfaces, including 23 GPIOs, UART, I2C, I2S, RMT (TX/RX),LED PWM, etc.
  • Wide range of applications, providing developers and engineers with an ideal choice for creating innovative and connected products.



Specification

  • Model: ESP32-C6-WROOM-1U Module
  • Chip: ESP32-C6 chip, RISC-V 32-bit single-core processor, supports clock frequency up to 160 MHz
  • SPI Flash:4MB/8MB( Optional)
  • Works in 2.4 GHz frequency band, 1T1R
  • Supports Bluetooth Low Energy 5.0
  • 4 x virtual Wi-Fi interfaces
  • Support IEEE 802.11ax protocol
  • Compatible with IEEE 802.11b/g/n protocols, supporting 20 MHz and 40 MHz bandwidth-data rates up to 150 Mbps
  • Compatible with IEEE 802.15.4-2015 protocol, working in 2.4 GHz band, supporting OQPSK PHY/Thread 1.3/Zigbee 3.0
  • Support interface:  GPIO, SPI, parallel IO interface, UART, I2C, I2S, RMT (TX/RX),LED PWM, USB Serial/JTAG controller, etc.
  • Operating temperature:-40℃~85℃
  • Power supply range:0~3.6V
  • Weight: 2g



Package List

  • 1x ESP32-C6-WROOM-1U
