ESP32-C6-WROOM-1-N4 module with 4MB SPI Flash
As low as
$4.15
Availability:
In stock
Only %1 left
SKU
DPI219N4C
Weight
5g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
Description
The ESP32-C6-WROOM-1 module is a versatile Wi-Fi, IEEE 802.15.4, and Bluetooth-compatible LE module with powerful features. It uses the ESP32-C6 chip, equipped with RISC-V 32-bit single-core processor, has 4 MB external SPI flash memory, and integrates rich peripherals, including SPI, UART, I2C, on-board antenna, and up to 23 GPIO and other interfaces. Rich peripherals and high performance make this module ideal for smart homes, industrial automation, healthcare, consumer electronics, and more.
[Noted] The current product has not been calibrated for ADC, and it is not recommended to use the ADC function; the order chips for subsequent shipments will complete ADC calibration before leaving the factory.

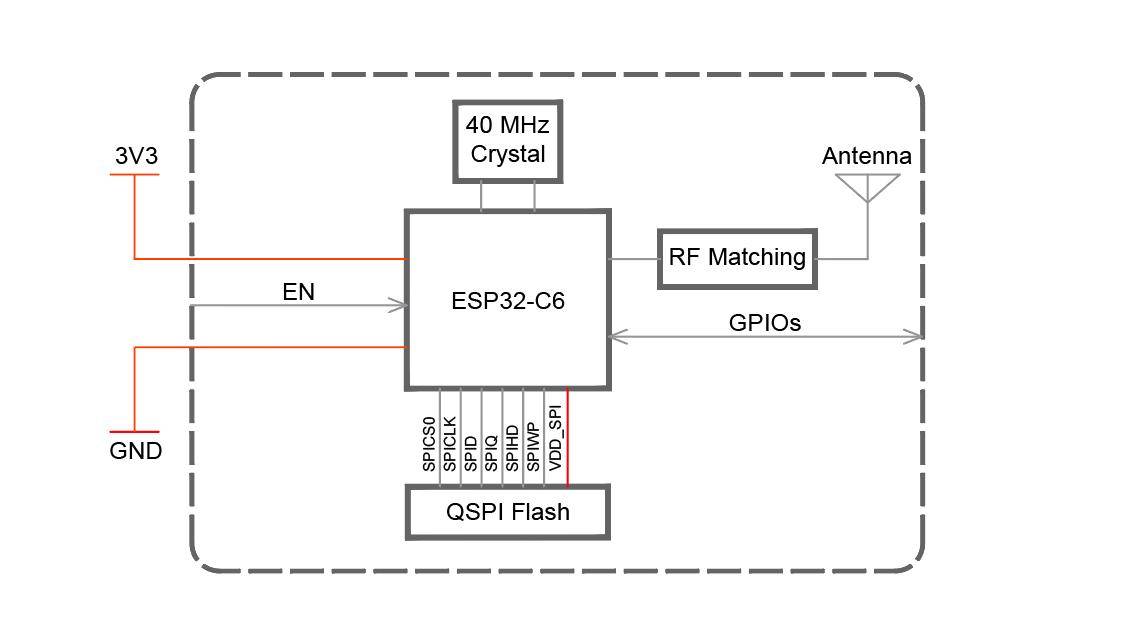

Block Diagram

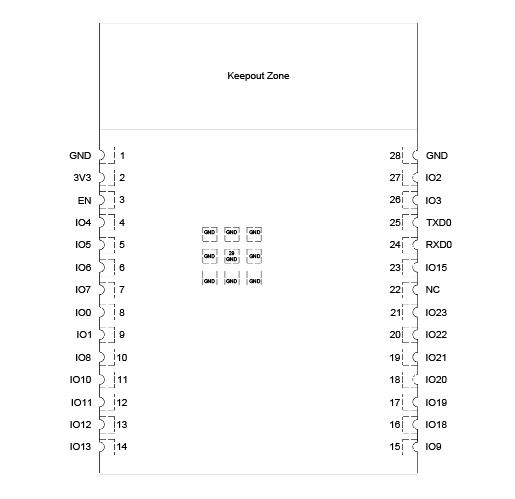

Pin Layout(Top View)
Pin Description
|
Name |
No. |
Type |
Function |
|
GND |
1 |
P |
Ground |
|
3V3 |
2 |
P |
Power supply |
|
EN |
3 |
I |
High: on, enables the chip. Low: off, the chip powers off. Note: Do not leave the EN pin floating. |
|
IO4 |
4 |
I/O/T |
MTMS, GPIO4, LP_GPIO4, LP_UART_RXD, ADC1_CH4, FSPIHD |
|
IO5 |
5 |
I/O/T |
MTDI, GPIO5, LP_GPIO5, LP_UART_TXD, ADC1_CH5, FSPIWP |
|
IO6 |
6 |
I/O/T |
MTCK, GPIO6, LP_GPIO6, LP_I2C_SDA, ADC1_CH6, FSPICLK |
|
IO7 |
7 |
I/O/T |
MTDO, GPIO7, LP_GPIO7, LP_I2C_SCL, FSPID |
|
IO0 |
8 |
I/O/T |
GPIO0, XTAL_32K_P, LP_GPIO0, LP_UART_DTRN, ADC1_CH0 |
|
IO1 |
9 |
I/O/T |
GPIO1, XTAL_32K_N, LP_GPIO1, LP_UART_DSRN, ADC1_CH1 |
|
IO8 |
10 |
I/O/T |
GPIO8 |
|
IO10 |
11 |
I/O/T |
GPIO10 |
|
IO11 |
12 |
I/O/T |
GPIO11 |
|
IO12 |
13 |
I/O/T |
GPIO12, USB_D |
|
IO13 |
14 |
I/O/T |
GPIO13, USB_D+ |
|
IO9 |
15 |
I/O/T |
GPIO9 |
|
IO18 |
16 |
I/O/T |
GPIO18 |
|
IO19 |
17 |
I/O/T |
GPIO19 |
|
IO20 |
18 |
I/O/T |
GPIO20 |
|
IO21 |
19 |
I/O/T |
GPIO21 |
|
IO22 |
20 |
I/O/T |
GPIO22 |
|
IO23 |
21 |
I/O/T |
GPIO23 |
|
NC |
22 |
- |
NC |
|
IO15 |
23 |
I/O/T |
GPIO15 |
|
RXD0 |
24 |
I/O/T |
U0RXD GPIO17 FSPICS1 |
|
TXD0 |
25 |
I/O/T |
U0RXD GPIO16 FSPICS0 |
|
IO3 |
26 |
I/O/T |
GPIO3, LP_GPIO3, LP_UART_CTSN, ADC1_CH3 |
|
IO2 |
27 |
I/O/T |
GPIO2, LP_GPIO2, LP_UART_RTSN, ADC1_CH2, FSPIQ |
|
GND |
28 |
P |
Ground |
|
EPAD |
29 |
P |
Ground |
Noted: P: power supply; I: input; O: output; T: high impedance.
Feature
- Equipped with RISC-V 32-bit single-core processor, the operating frequency is up to 160 MHz with 320 KB ROM,512 KB SRAM,16 KB Low-power (LP) SRAM
- Support IEEE 802.11ax protocol, IEEE 802.11 b/g/n-compliant
- Support Bluetooth-compatibility BLE 5
- Rich peripheral interfaces, including 23 GPIOs, UART, I2C, I2S, RMT (TX/RX),LED PWM, etc.
Specification
- Model: ESP32-C6-WROOM-1-N4 Module
- Chip: ESP32-C6 chip, RISC-V 32-bit single-core processor, supports clock frequency up to 160 MHz
- Works in 2.4 GHz frequency band, 1T1R
- Supports Bluetooth-compatible Low Energy 5.0
- 4 x virtual Wi-Fi interfaces
- Support IEEE 802.11ax protocol,
- Compatible with IEEE 802.11b/g/n protocols, supporting 20 MHz and 40 MHz bandwidth-data rates up to 150 Mbps
- Compatible with IEEE 802.15.4-2015 protocol, working in 2.4 GHz frequency band, supporting OQPSK PHY/Thread 1.3/Zigbee 3.0
- Antenna form: onboard PCB antenna
- Support interface: UART, I2C, I2S, RMT (TX/RX),LED PWM, USB Serial/JTAG controller, etc.
- Operating temperature：-40℃~85℃
- Power supply range：0~3.6V
- SPI Flash: 4MB
- Size:
- Weight: 2.4g
Package List
- 1x ESP32-C6-WROOM-1-N4
