Arduino Nano V3
$24.50
Availability:
In stock
SKU
MAD00100B
Weight
50g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
[Arduino Nano V3] The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x).
Frequently Bought Together
Arduino Nano
The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has the same functionality as the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.

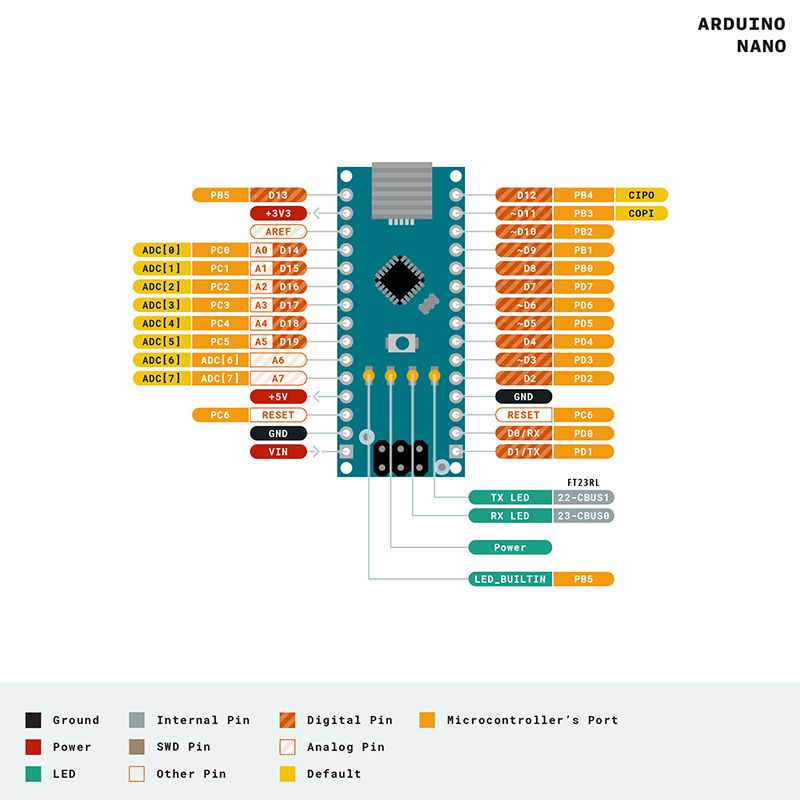

Pinout Diagram
Specification
|
Microcontroller |
ATmega328 |
|
Architecture |
AVR |
|
Operating Voltage |
5 V |
|
Flash Memory |
32 KB of which 2 KB used by bootloader |
|
SRAM |
2 KB |
|
Clock Speed |
16 MHz |
|
Analog IN Pins |
8 |
|
EEPROM |
1 KB |
|
DC Current per I/O Pins |
20 mA (I/O Pins) |
|
Input Voltage |
7-12V |
|
Digital I/O Pins |
22 (6 of which are PWM) |
|
PWM Output |
6 |
|
Power Consumption |
19 mA |
|
PCB Size |
18 x 45 mm |
|
Weight |
7 g |
Package List
- 1x Arduino Nano
Wiki & External links
- Schematics of Arduino Nano
- Eagle File of Arduino Nano
- Board Size of Arduino Nano
