Serial driver for large seven segment LED displays (PCB only)

SKU
CDE258170P
In stock
$7.90
Weight
14
-
+
With this product, you earn 8 loyalty points.
Overview

Seven segment LED displays are visually very charming and are readable from a far viewing distance and wider view angle compared to other types of electronic displays. Small size seven segment LED display modules usually require a forward driving voltage less than +5V and as such they can be driven directly through a microcontroller's I/O pins.

Description:

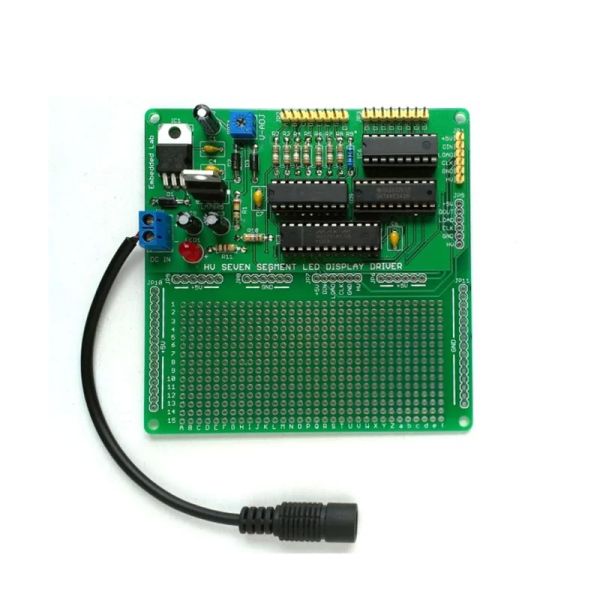

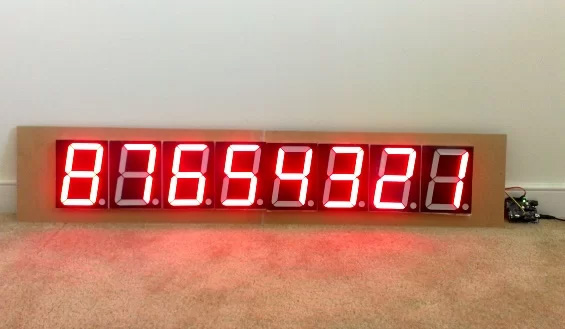

Seven segment LED displays are visually very charming and are readable from a far viewing distance and wider view angle compared to other types of electronic displays. Small size seven segment LED display modules usually require a forward driving voltage less than +5V and as such they can be driven directly through a microcontroller's I/O pins. However, in order to interface bigger size seven segment modules, which require more current and a higher forward voltage, an additional voltage translation circuit is required to enhance the microcontroller outputs. This display driver allows you to interface 8 large seven segment LED display modules (common-cathode type) to a +5V microcontroller through an SPI interface. It can drive LED segments with forward voltage up to 24V.



Note: This listing is for PCB only and this PCB board deliveried in blue.



Specification

Size: 4 x 4 inch

Weight: 14g



Package list

1 X Serial driver for large seven segment LED displays (PCB only)



Wiki & External links

Full description of this project can be found at: http://embedded-lab.com/blog/high-voltage-seven-segment-led-display-driver-with-spi-interface/
