SF101T 10.1inch Touchscreen 1920x1080 IPS Monitor for Raspberry Pi

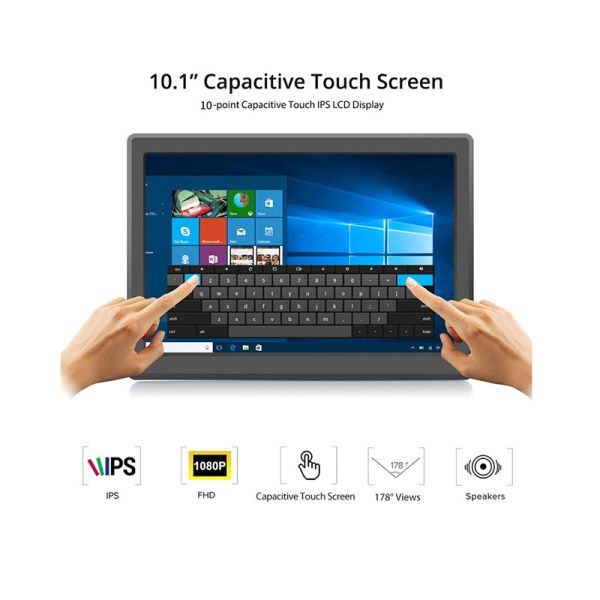

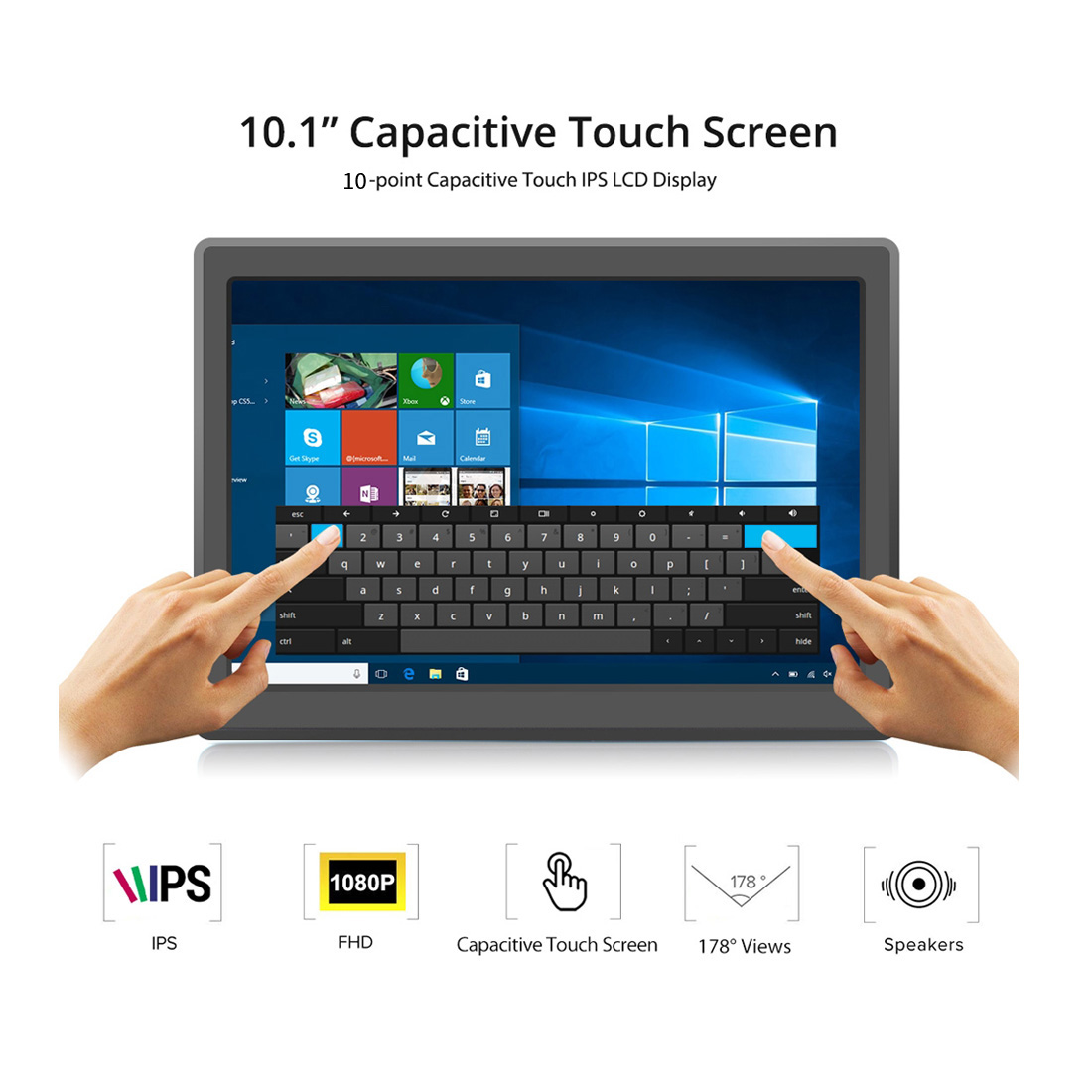

10.1" IPS Capacitive Touch Monitor

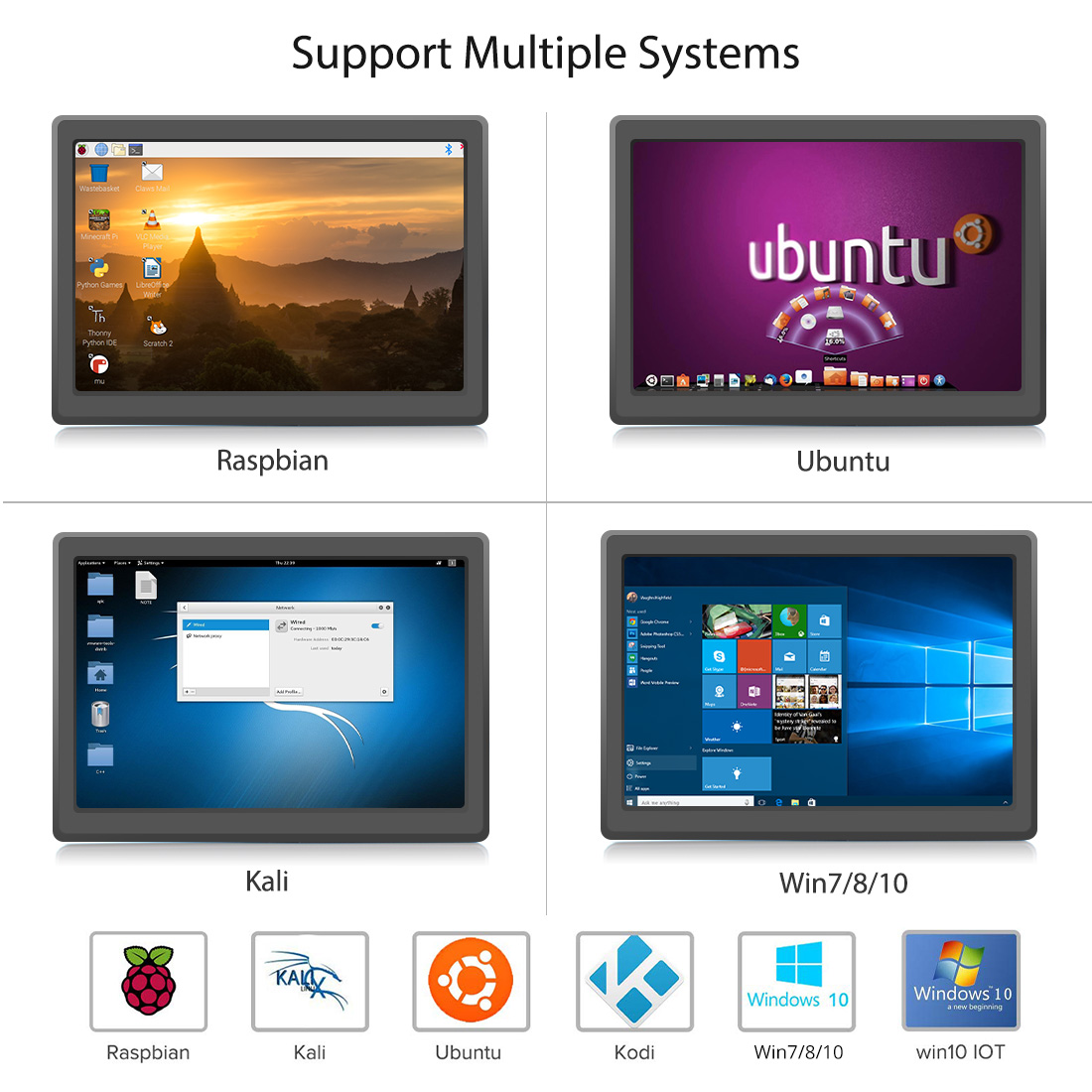

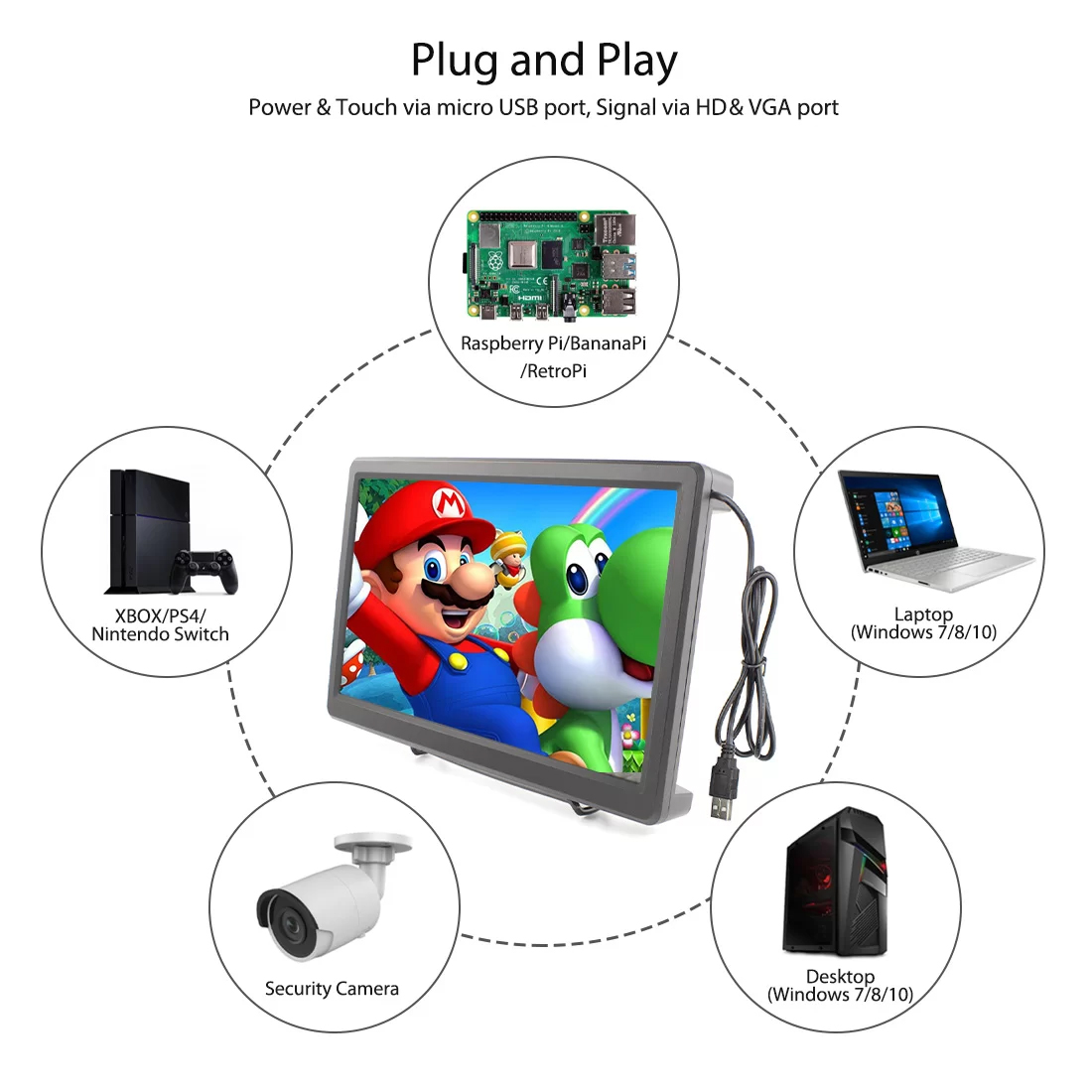

This 10.1-inch portable touchscreen monitor supports 1920x1080 resolution max, and the image is colorful and crystal clear. IPS LED technology brings a subversive color experience and a large viewing screen. Support 10-point touch, no extra driver needed, just connect the USB cable to your signal output device, like a PC/Raspberry Pi, to achieve the touch screen function. This 10.1-inch LCD display is equipped with HDMI-compatible / VGA ports, built-in high-quality speakers, and a 3.5mm headphone output jack.  It can work with most devices with an HDMI-compatible or VGA port, compatible with Win 7, 8, 10 PC, Raspberry Pi 5/4/4B/3/3B, industrial equipment, and medical equipment.

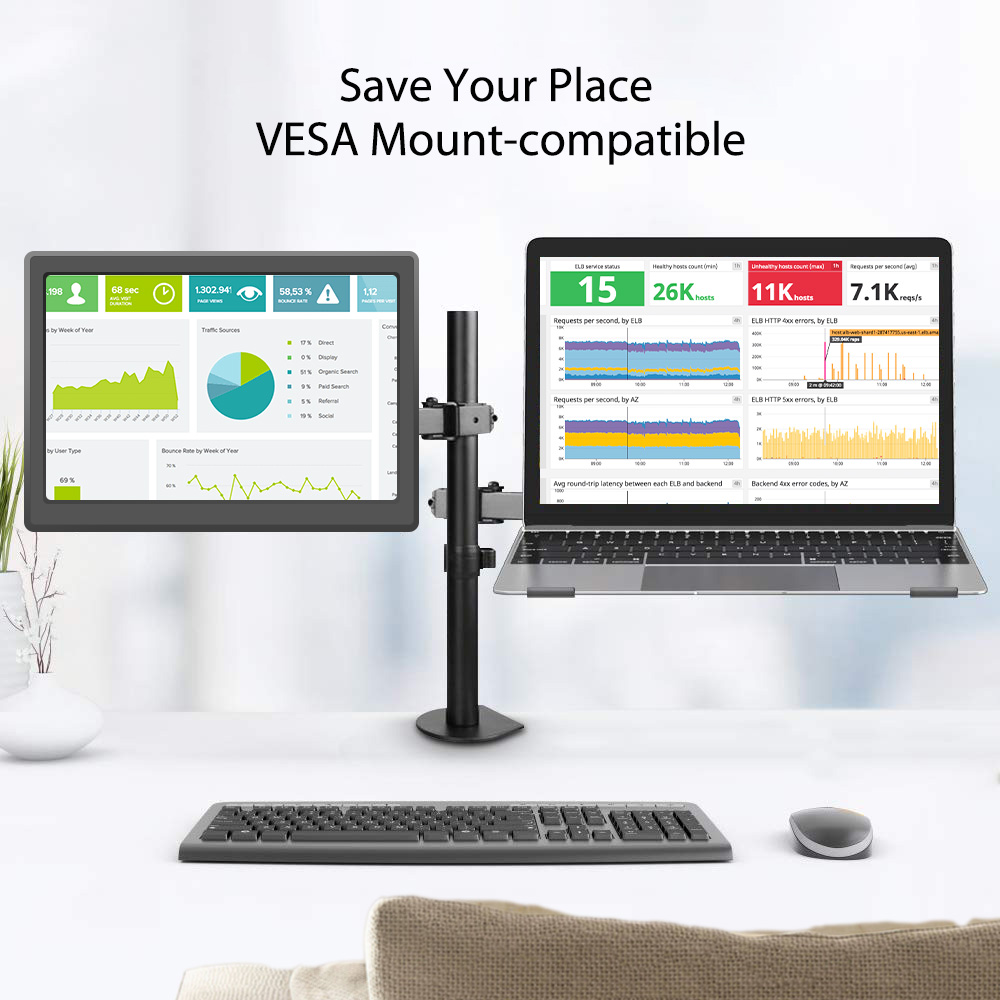

10.1inch compact size, 75x75mm VESA wall-mountable holes, making your space planning more flexible.

OEM customization requests can be discussed for projects.

Stunning Color at any Angle IPS provides advanced in plane switching technology for premium color performance at any viewing angle.	True-to-life Images With Full HD 1080p support, the small portable screen delivers spectacular image quality.

10-point Touchscreen The 10.1-inch portable monitor is paired with a 10-point capacitive touch panel enabling precise gesture control and low-latency interaction.	Dual Built-in Speakers This LCD screen built-in speaker replaces traditional external speakers and saves desktop space.

Feature

Where to use?

Specification

• Model: SF101T
• Screen Size: 10.1 inches
• Touch: USB touch
• Digital input: VGA/HD
• Digital Output: Digital Output
• Panel brightness: 350cd / m²
• Contrast: 800: 1 (Min) (transmission)
• Resolution: 1920X1080, up to 1080p
• Aspect ratio: 16: 9 (width: height)
• Display color: 262K/16.7M (6-bit/6-bit+Hi-FRC)
• Response time: 13/12 (TYP) (Tr/Td)（ms）
• Viewing angle: 80/80/80/80 (Min.)(CR≥10)
• Display Mode: ADS, Normally Black Transmissive
• Product longevity：3—5 years
• Active display touch area：：241x136mm
• Refresh Rate: 60Hz
• Operating Voltage: DC 9-12V
• Power Supply: 12V 2A Adapter
• Pitch of the VESA mount holes: 75mm*75mm (M3 Screw)
• Dimension: 265*168*30mm
• Net Weight: 652.5g
• Package Weight: 1350g

Package list

• 1 x Portable monitor
• 1 x HD to HD connecting cable
• 1 x 12V/2A power adapter
• 1 x metal holder
