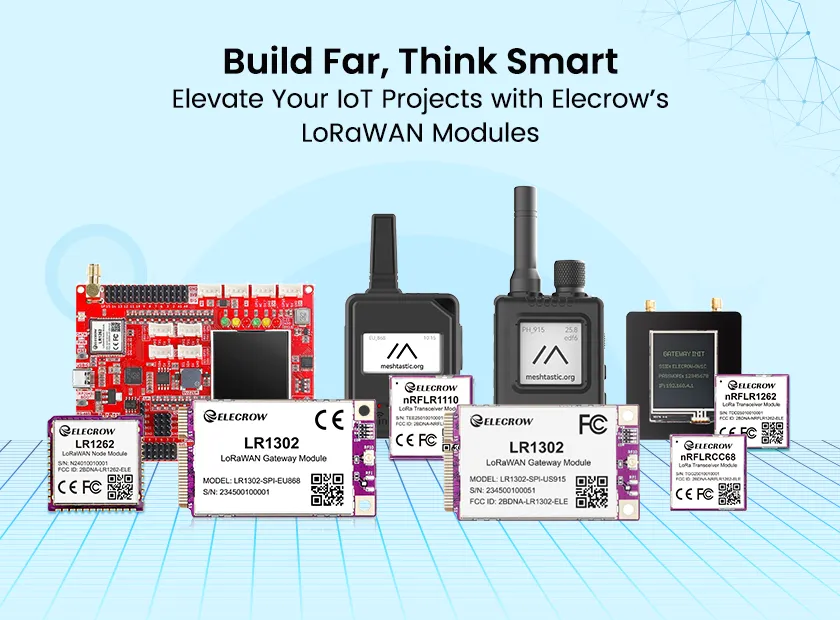

Build Far, Think Smart: Elevate Your IoT Projects with Elecrow’s LoRaWAN Modules

In the evolving landscape of IoT, long-range, low-power wireless communication is no longer optional—it’s foundational. From remote agriculture and industrial monitoring to smart cities and environmental tracking, LoRaWAN (Long Range Wide Area Network) delivers a powerful blend of coverage, efficiency, and cost-effectiveness.

In this article, we’ll unpack why LoRaWAN is a great choice for wide-area IoT applications—and how Elecrow’s robust, ready-to-deploy LoRaWAN modules can support your innovation.

What Makes LoRaWAN Stand Out?

LoRaWAN (Long Range Wide Area Network) is a low-power, wide-area networking protocol designed for long-range communication between devices and gateways using unlicensed sub-GHz frequencies like EU868 and US915. It’s especially effective in environments where traditional wireless technologies fall short, such as remote locations, infrastructure-limited areas, or power-constrained settings.

What sets LoRaWAN apart is its ability to support battery-powered devices that can operate for several years without maintenance, thanks to its ultra-low power consumption. It also enables communication over distances ranging from 2 kilometers in dense urban environments to over 15 kilometers in open or rural terrain. While it offers low data throughput, this is ideal for applications that transmit small amounts of data periodically, like environmental sensors, agricultural monitors, smart meters, and asset tracking systems.

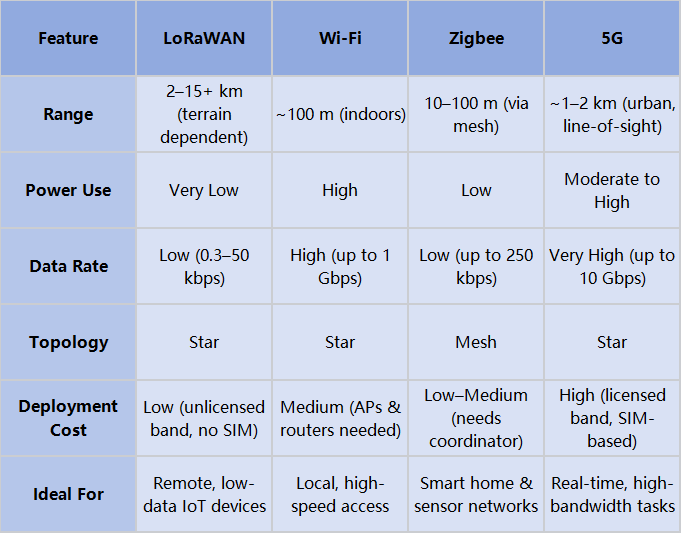

LoRaWAN vs. Wi-Fi, Zigbee, and 5G: A Technical Comparison

To understand where LoRaWAN excels, let’s compare it to other common wireless technologies in IoT systems:

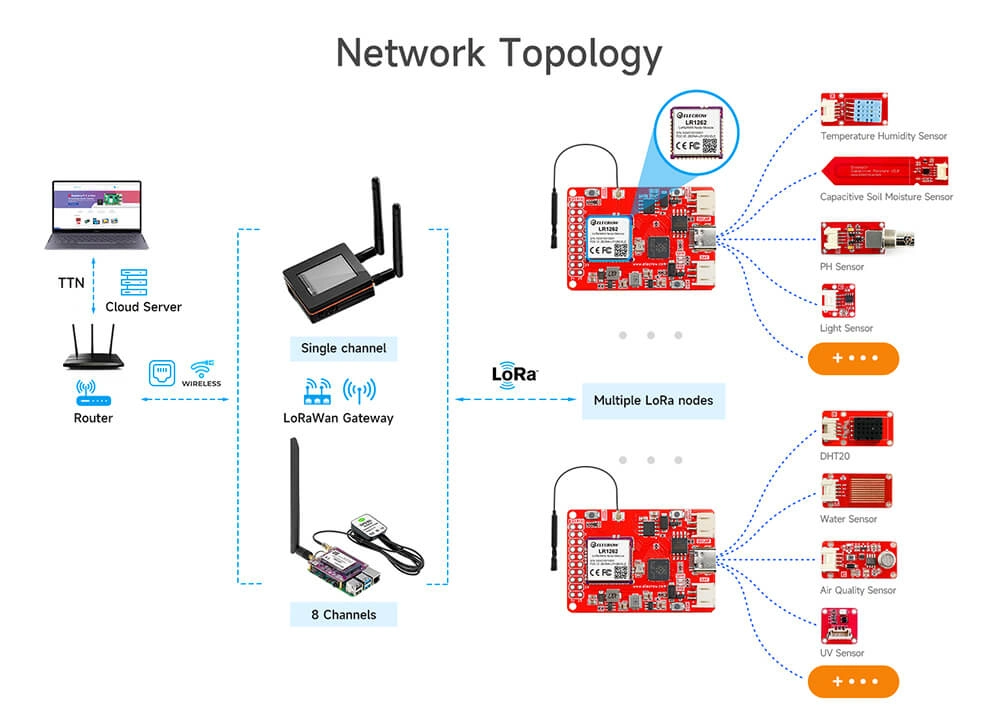

Meaning of "Star" in Network Topology:

A star topology means that all end devices communicate directly with a central node, typically a gateway, rather than with each other. Here's how it applies:

● LoRaWAN: End nodes (like sensors or tracking devices) send data to a central LoRaWAN gateway, which then forwards the data to a network server.

● The nodes do not relay messages for one another—they only communicate with the gateway.

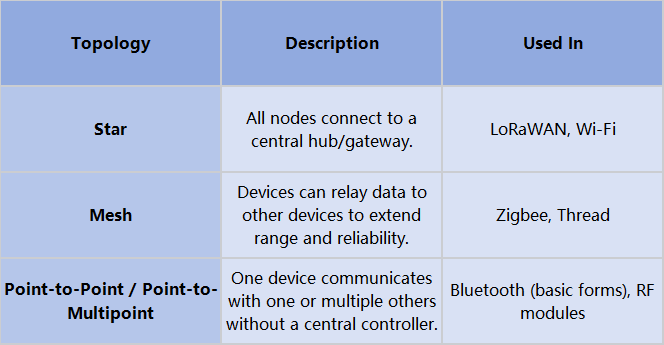

Comparison with Other Topologies:

LoRaWAN is unmatched for long-distance, energy-efficient communication in areas without strong infrastructure. Wi-Fi and 5G are better suited for bandwidth-heavy or real-time applications. Zigbee fits well in compact, localized sensor networks with mesh topology.

Elecrow’s High-Performance LoRaWAN Modules

LR1302 LoRaWAN Gateway Module – EU868 / US915

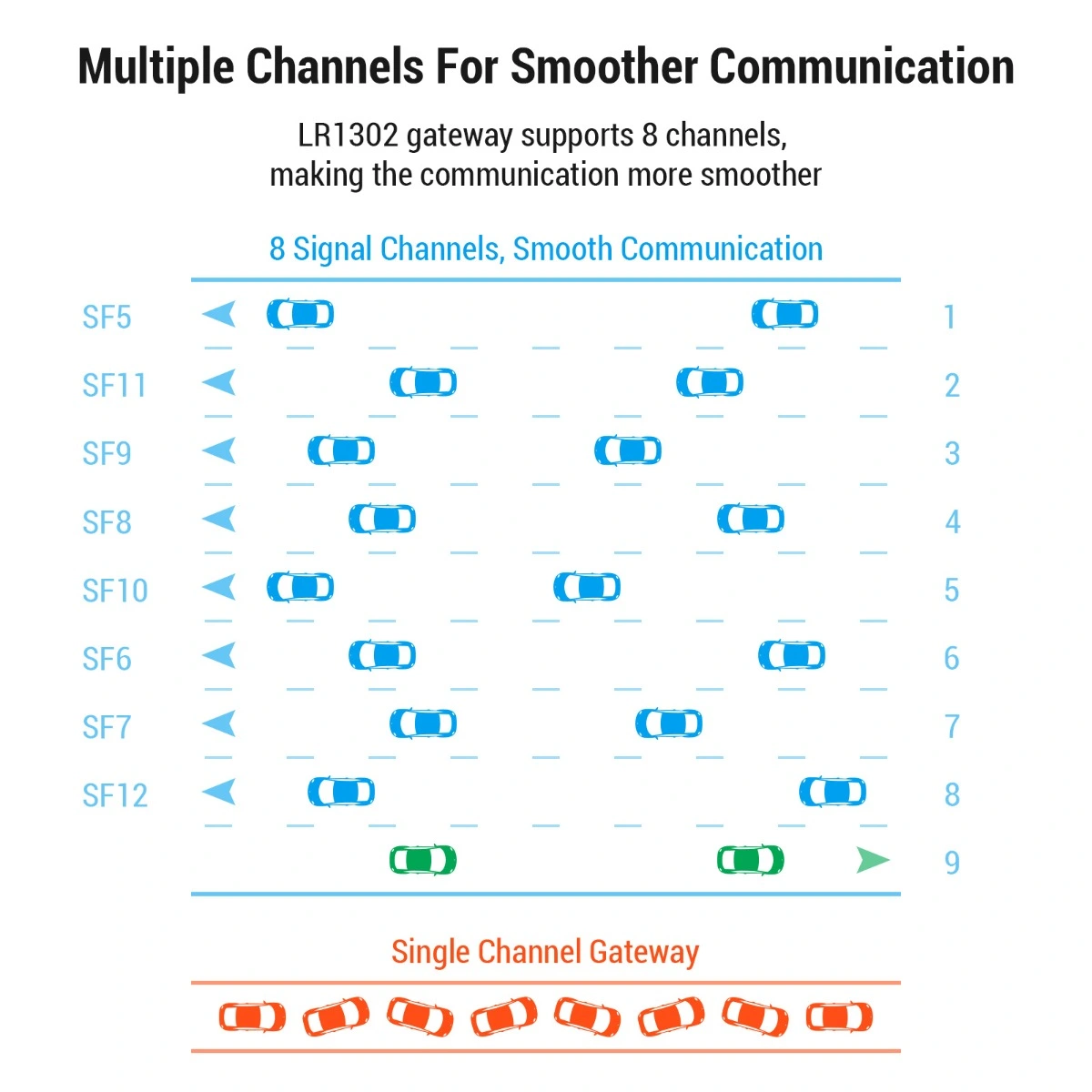

The LR1302 LoRaWAN Gateway Module is built for makers and engineers looking to deploy their own private or community LoRaWAN networks. Powered by Semtech’s SX1302 baseband chip, this gateway supports 8 simultaneous LoRa channels, making it ideal for handling a high volume of end nodes in real time. Whether you’re managing an agricultural sensor grid across open fields or setting up a community mesh in a smart town, the LR1302 delivers the long-range, reliable communication needed to make it happen. It connects easily with host devices via SPI and supports both EU868 and US915 frequency bands, allowing flexible deployment across various regions.

EU868 Version

LR1302 LoRaWAN Gateway Module | SX1302, US915, SPI, 8Channel

NRFLR1262 Wireless Transceiver Module (LoRa + BLE)

When your project needs both local and remote communication, the NRFLR1262 Wireless Transceiver Module steps in as a perfect hybrid solution. It combines Nordic’s nRF52840 SoC with Semtech’s SX1262, supporting both Bluetooth 5.0 and LoRaWAN. This dual-mode connectivity is great for smart tags, wearables, or asset tracking devices that need to interact with nearby smartphones or control panels over BLE, while still sending data to remote gateways via LoRaWAN. For example, in a smart logistics scenario, BLE can enable local warehouse updates, while LoRa handles outdoor fleet tracking without sacrificing battery life or signal range.

LR1262 LoRaWAN Node Module – Full Frequency Band

Designed for energy-efficient, global IoT deployment, the LR1262 LoRaWAN Node Module supports the entire 863–928 MHz band, making it compatible with LoRaWAN networks worldwide. Thanks to its ultra-low power profile and compact size, it's ideal for battery-operated sensors. Imagine deploying this module in a smart city environment, where it powers environmental sensors that monitor air quality, noise levels, or temperature on a street-by-street basis—reporting back periodically via LoRa without ever needing a Wi-Fi signal or cellular contract.

NRFLRCC68 Wireless Transceiver Module (LoRa + BLE, Cost-Effective)

For projects that demand both dual-mode communication and budget-conscious design, the NRFLRCC68 Wireless Transceiver Module offers an excellent balance. It pairs the nRF52840 with Semtech’s LLCC68 chip to enable both BLE and LoRa functionality. The LLCC68 brings down the cost while still providing the range and efficiency LoRa is known for. This makes it especially suitable for indoor location services or light industrial monitoring, where devices must communicate with local BLE systems and occasionally send out LoRa updates to central servers—perfect for balancing cost, coverage, and control.

NRFLR1121 Wireless Transceiver Module

The NRFLR1121 Wireless Transceiver module integrates Nordic’s nRF52840 with Semtech’s SX1121 transceiver, offering a powerful option for long-range sensing and control applications. With robust link budgets and reliable data transmission, it is well suited for industrial automation, predictive maintenance systems, and large-scale infrastructure monitoring. Picture a system of predictive sensors in a factory or warehouse environment that quietly monitor conditions and alert engineers to anomalies, minimizing downtime and maximizing efficiency without constant manual checks.

NRFLR1110 Wireless Transceiver Module (LoRa + GNSS + Wi-Fi)

The NRFLR1110 Wireless Transceiver Module stands out by combining LoRa with GNSS positioning and Wi-Fi capabilities, powered by Semtech’s LR1110. This makes it a highly versatile choice for advanced asset tracking and location-based IoT applications. Whether you’re tracking wildlife migration, monitoring vehicle fleets in hard-to-reach areas, or managing high-value logistics across borders, this module offers multi-mode positioning to keep assets visible even when GPS is weak. It's particularly useful in outdoor logistics, smart agriculture, or scientific research in remote areas, where precise positioning and long-distance data transmission are both essential.

If you are interested in LoRa Modules, check out Elecrow’s Giveaway and PCB Assembly Sponsorship. You could get a free module for your next project!

Elecrow offers technically robust, cost-effective, and developer-friendly LoRaWAN modules for every stage of your IoT journey. Whether you're building a prototype or scaling a network across thousands of nodes, our solutions are engineered to support your vision.

Browse All LoRa Modules at Elecrow
