nRFLR1110 Wireless module

Elecrow nRFLR1110 Wireless Transceiver Module-Integrates Nordic nRF52840 and Semtech LR1110

Elecrow nRFLRCC68 Wireless Transceiver Module-Integrates Nordic nRF52840 and Semtech LLCC68

$9.90
Availability: In stock
SKU
CIL13728X
Brand
elecrow
Weight
10g
×
ok  1 item(s) added to cart
Customers Who View This Item Also Bought
left right

【High performance and ultra-low power consumption】Transmitting power up to 20dBm; supports 1.76~62.5Kbps transmission rate, -125.5dBm sensitivity; only 5uA in sleep mode;
【Wireless communication】Supports 850~930MHz global LoRa&LoRaWAN ISM frequency, supports LoRa point-to-point (P2P) communication. Supports low-power Bluetooth, Bluetooth mesh network, NFC, Thread and Zigbee;
【Easy to use】Built-in AT command firmware, can be easily used through the UART interface;
【Rich peripherals】UART, I2C, ADC and other GPIO interfaces are introduced, providing developers with great flexibility in peripheral expansion.
【FCC, CE, RoHS certification】

Description

The Elecrow nRFLRCC68 module integrates the Nordic nRF52840 microcontroller and the Semtech LLCC68 LoRa transceiver chip. It is a high-performance, low-power medium- and long-range transceiver module. It supports Bluetooth 5.3 and low-power Bluetooth, complies with the A, B, and C classes of the LoRaWAN 1.0.4 specification, and supports LoRa point-to-point (P2P) communication mode. It covers the 850~930MHz (applicable to 868MHz, 915MHz) global ISM band, with a maximum transmit power of +20dBm, a transmission rate range of 1.76~62.5Kbps, and a transmission distance of up to 10 km.

The nRFLR1121 module has built-in AT command firmware, supports SDK customized development, and a rich peripheral interface that provides high flexibility to meet diverse development needs. The nRFLR1121 module retains the advantages of low power consumption, high transmit power and full LoRa frequency band, while optimizing the cost structure, removing the less used "ultra-low rate scenario", achieving significant price advantages, making it more suitable for smart home applications, medium-range indoor and indoor-to-outdoor wireless applications.

Self-developed by Elecrow with exclusive design. Customization can be discussed for bulk orders.



Feature

  • High performance: Maximum transmit power can reach +20dBm, support 1.76~62.5Kbps transmission rate, -125.5dBm sensitivity @SF12/BW=125kHz, 151db link budget
  • Ultra-low power consumption, sleep current is only 5uA;
  • Support 850~930MHz global LoRa&LoRaWAN ISM frequency, support LoRa point-to-point (P2P) communication; nRF52840 Bluetooth 5.3 SoC, support low-power Bluetooth, Bluetooth mesh network, NFC, Thread and Zigbee;
  • Long-distance communication, the communication distance can reach 10km;
  • Built-in AT command firmware and support the use of SDK for customized product development, and the AT command set can be easily used through the UART interface;
  • Rich peripherals, the module leads to a variety of GPIO interfaces such as UART, I2C, ADC, etc., providing great flexibility;
  • Compact form factor with only 20x 20x 3.5 mm
  • FCC, CE, RoHS certification

Application scenarios

Smart city, smart agriculture, industrial automation, environmental monitoring, smart home, logistics management, medical health;

Pin DefinitionPin Definition of nRFLRCC68 Transceiver Module

Specification

Processor

nRF52840 processor, dual-core 32-bit, 64MHz main frequency

RF chip

Semtech LLCC68 Chip

LoRa Specification

Transmit Power TX

+20 dBm@Max

Receiving Sensitivity

-125.5dBm

Link Budget

Support 151db link budget

Demodulator

Support LoRa/(G)FSK signal modulation

LoRa Frequency Range

Support 150MHz-960MHz configuration

Spreading Factor

SF5~SF11

Data Transfer Rate

Supports data transmission rates from 1.76 to 62.5 Kbps

Other

Frequency

Covering 850~930MHz (applicable to 868MHz, 915MHz)

Communication Interface

SPI(0~10Mbps)

Lead Pin

Such as SPI signal, VCC, multiple GND, NRST, ANT, TX control, RX control, BUSY status, NFC, SWD debugging pin, etc.

Antenna

Not onboard, via RF pins

Reference Power Consumption

5uA (sleep), 120mA (transmit + MCU), 12mA (receive + MCU)

Communication Distance

5~6km, maximum over 10km

Crystal Type

Industrial grade 32MHz TCXO

LoRaWAN Protocol

Class A/B/C (compliant with LoRaWAN 1.0.3 specification)

Operating Voltage

1.8~3.7V

Operating Temperature

-40℃~+85℃, Industrial standard design

Package Size

20*20*3.5mm, 80-Pin, SMT patch, LGA package;

Weight

3g

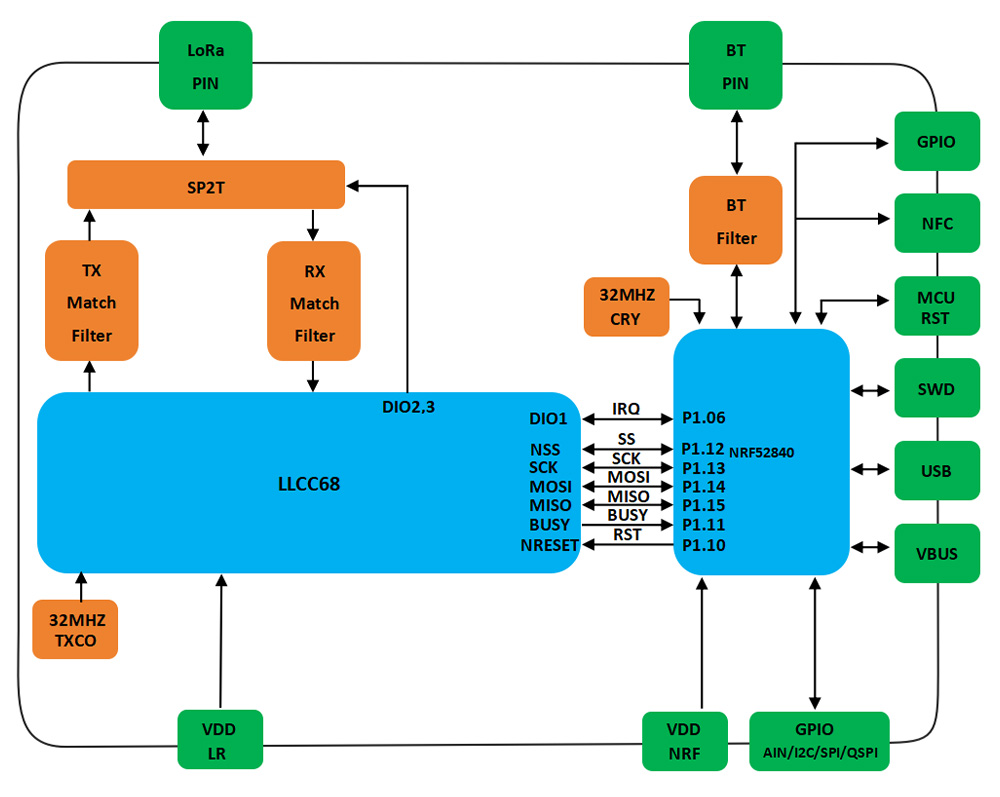

System DiagramDiagram of nRFLRCC68 Transceiver Module

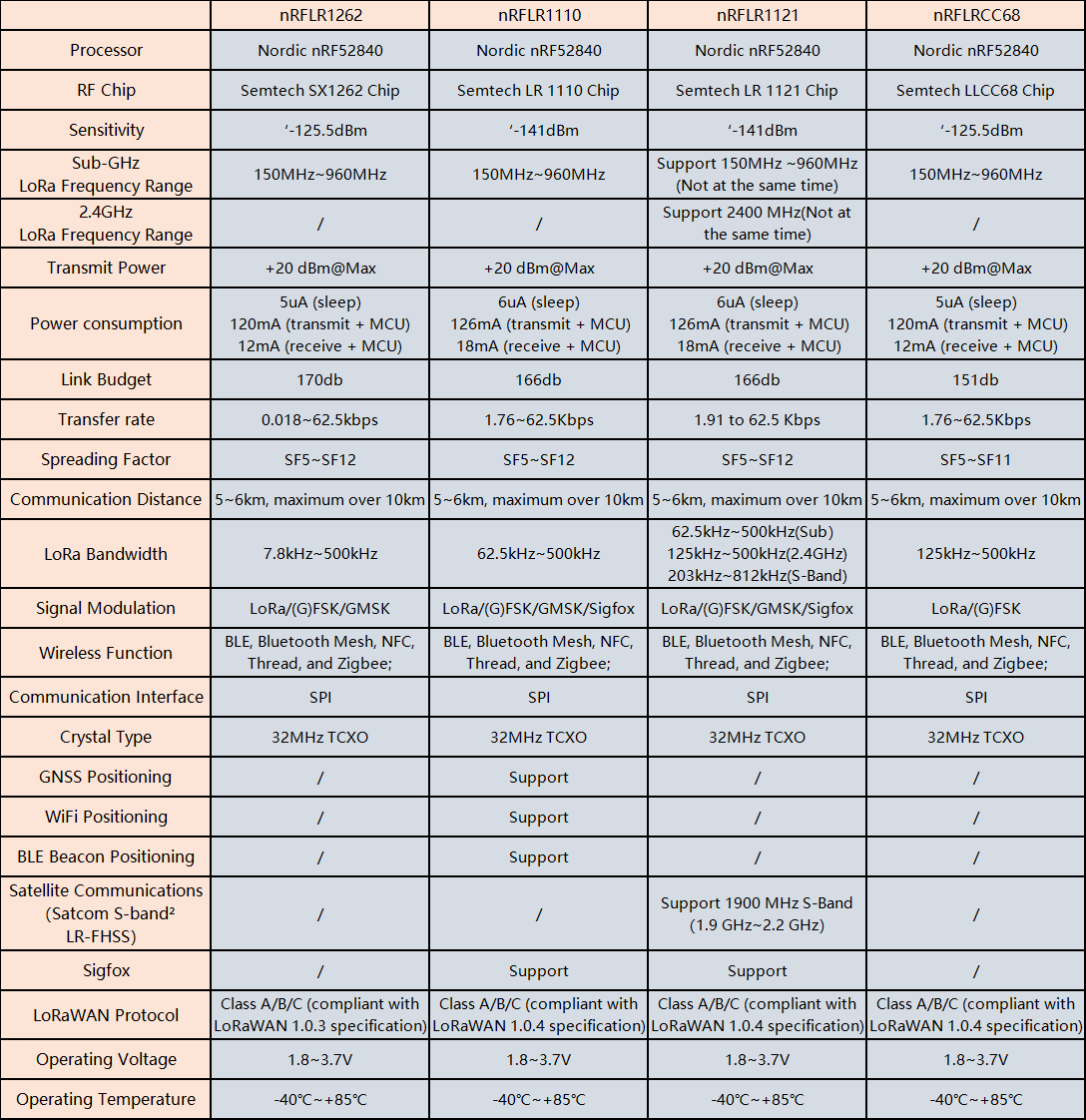

Transceiver Module ComparisonTransceiver Module Comparison

Dimension

Dimension of nRFLRCC68 Transceiver Module

Package List

  • 1x nRFLRCC68 Wireless Transceiver Module
