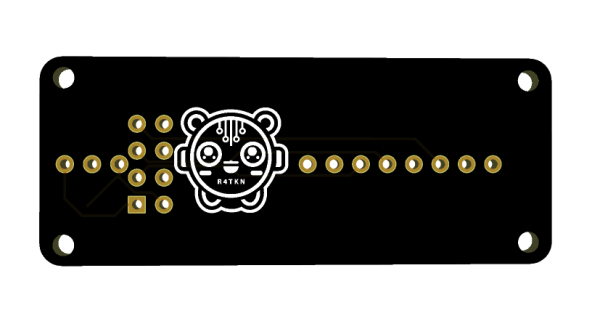

Flipper Zero BW16 RTL8720DN Dual-Band WiFi Board – Horizontal Version (For No Silicon Case)

Upgrade your Flipper Zero with the AI Thinker BW16 RTL8720DN Dual-Band WiFi Expansion Board. Enhance your device's connectivity capabilities with support for both 2.4 GHz and 5 GHz WiFi bands. Perfect for IoT enthusiasts and cybersecurity professionals looking to expand their Flipper Zero's functionality.

Required Modules to Build:

• AI Thinker BW16 RTL8720DN Module

• Male PIN Headers (8-pin and 10-pin): Required for proper connection to the Flipper Zero.

Firmware and FAP File:

1. Firmware:

   • Download the appropriate firmware for the AI Thinker BW16 RTL8720DN from the official repository or source. This firmware will enable dual-band WiFi capabilities on your Flipper Zero.

   • https://github.com/rusyln/flipper-zero-bw16-r4tkn
   • https://github.com/gorebrau/delfyRTL

2. FAP File for Flipper Zero:

   • The FAP file (Flipper Application Package) contains the necessary software to interface the BW16 board with the Flipper Zero.

   • To copy the FAP file to the Flipper Zero’s SD card, use QFlipper (available here: QFlipper Download Link).

   • Once QFlipper is installed, connect your Flipper Zero, open QFlipper, and transfer the FAP file to the device.
